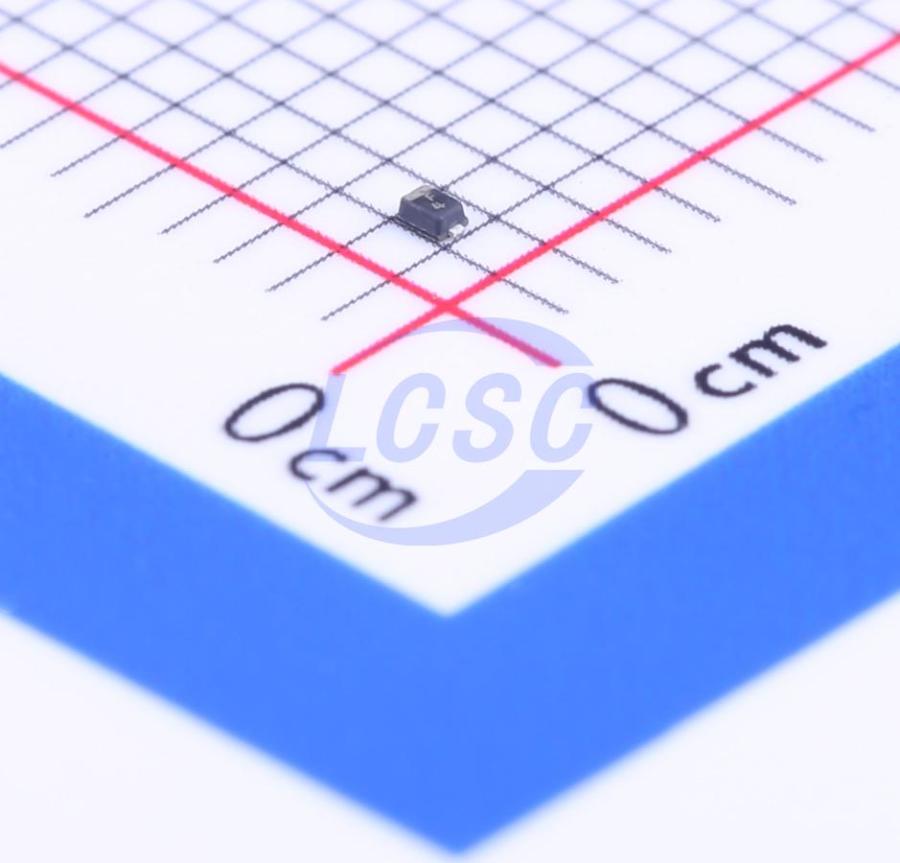

NSR0620P2T5G
Diode 20V 500mA Surface Mount SOD-923
SOD-923ROHS3 CompliantActive
DIODE SCHOTTKY 20V SOD-923
- Manufacturer
- onsemi
- Manufacturer part #
- NSR0620P2T5G
- Store part #
- C91106
- Package / case
- SOD-923
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,690 in stock
#C91106
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.01 | ₹90.10 |
| 100+ | ₹7.09 | ₹709.00 |
| 300+ | ₹6.13 | ₹1,839.00 |
| 1,000+ | ₹5.41 | ₹5,410.00 |
| 5,000+ | ₹4.83 | ₹24,150.00 |
| 8,000+ | ₹4.54 | ₹36,320.00 |
10 × ₹9.01
₹90.10
excl. GST
₹106.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
NSR0620P2T5G
₹90.10 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 20V
- Voltage - Forward(Vf@If)
- 520mV@500mA
- Reverse Leakage Current (Ir)
- 9uA@20V
- Non-Repetitive Peak Forward Surge Current
- 1A
- Current - Rectified
- 500mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.011 g
Overview
Schottky barrier diodes are optimized for very low forward voltage drop and low leakage current and are used in a wide range of dc - dc converter, clamping and protection applications in portable devices. NSR0620P2 in a SOD - 923 miniature package enables designers to meet the challenging task of achieving higher efficiency and meeting reduced space requirements.
Applications
- LCD and Keypad Backlighting
- Camera Photo Flash
- Buck and Boost dc - dc Converters
- Reverse Voltage and Current Protection
- Clamping & Protection
Key features
- Very Low Forward Voltage Drop - 350 mV @ 100 mA
- Low Reverse Current - 2.0 μA @ 10 V
- Continuous Forward Current - 500 mA
- Power Dissipation with Minimum Trace - 190 mW
- Very High Switching Speed - 4.0 ns @ 10 mA
- Low Capacitance - 12 pF @ 1.0 V
- These Devices are Pb - Free, Halogen Free/BFR Free and are RoHS Compliant
