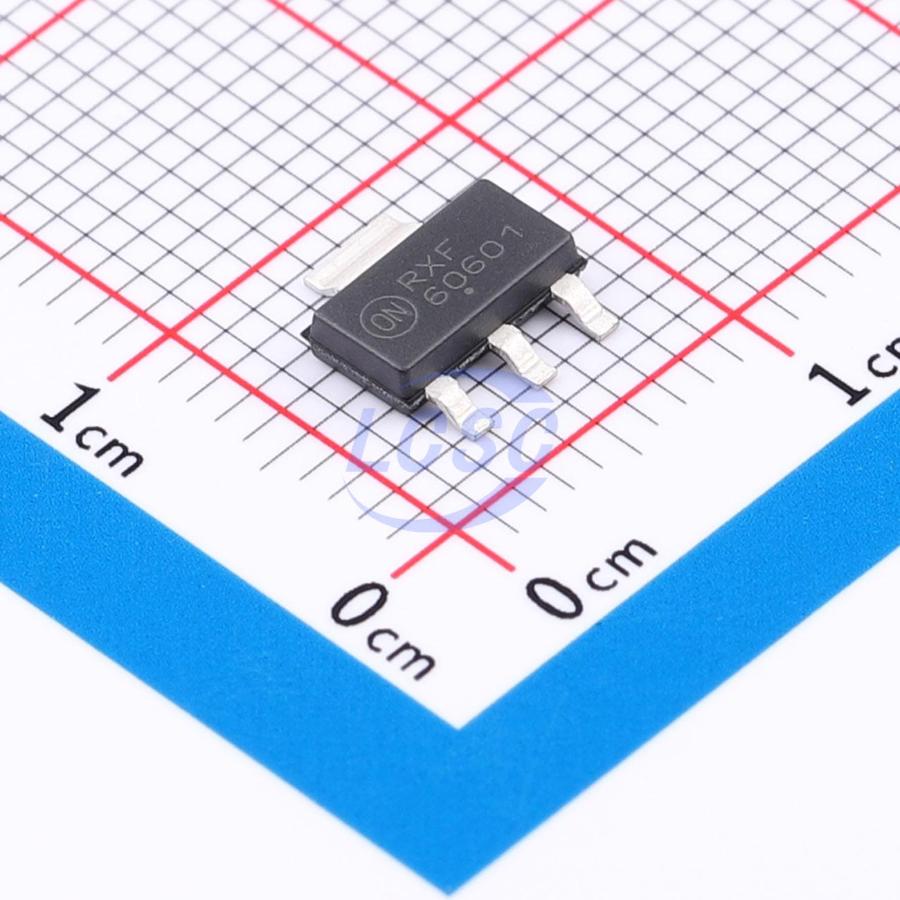

NSS60601MZ4T3G onsemi

NSS60601MZ4T3G

60V 120 6A 1 NPN NPN SOT-223 Single Bipolar Transistors RoHS

SOT-223ROHS3 CompliantActive

Manufacturer: onsemi
Manufacturer part #: NSS60601MZ4T3G
Store part #: C895126
Package / case: SOT-223
Category: Single Bipolar Transistors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

200 in stock

#C895126

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹92.91	₹92.91
10+	₹90.74	₹907.40
30+	₹89.43	₹2,682.90
100+	₹87.91	₹8,791.00

Quantity (min 1)

1 × ₹92.91

₹92.91

excl. GST

₹109.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

NSS60601MZ4T3G

₹92.91 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+150℃
Current - Collector Cutoff: 100nA
Collector - Emitter Voltage VCEO: 60V
Emitter-Base Voltage VEBO: 6V
DC Current Gain: 120
Current - Collector(Ic): 6A
Pd - Power Dissipation: 800mW
Configuration: Standalone
Number: 1 NPN
type: NPN
Vce Saturation(VCE(sat)): 85mV

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.171 g

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	DSS60601MZ4-13#C150451DIODES · SOT-223	DIODES	SOT-223	126	₹61.04 · 126 in stock	View
	LBTN660Z4TZHG#C5273335LRC · SOT-223	LRC	SOT-223	2,442	₹58.13 · 2,442 in stock	View
	NSV60601MZ4T1G#C424247onsemi · SOT-223	onsemi	SOT-223	194	₹94.69 · 194 in stock	View
	ZXTN2010GTA#C326515DIODES · SOT-223	DIODES	SOT-223	3	₹271.16 · 3 in stock	View
	NSS60601MZ4T1G#C99985onsemi · SOT-223	onsemi	SOT-223	7,131	₹85.76 · 7,131 in stock	View
