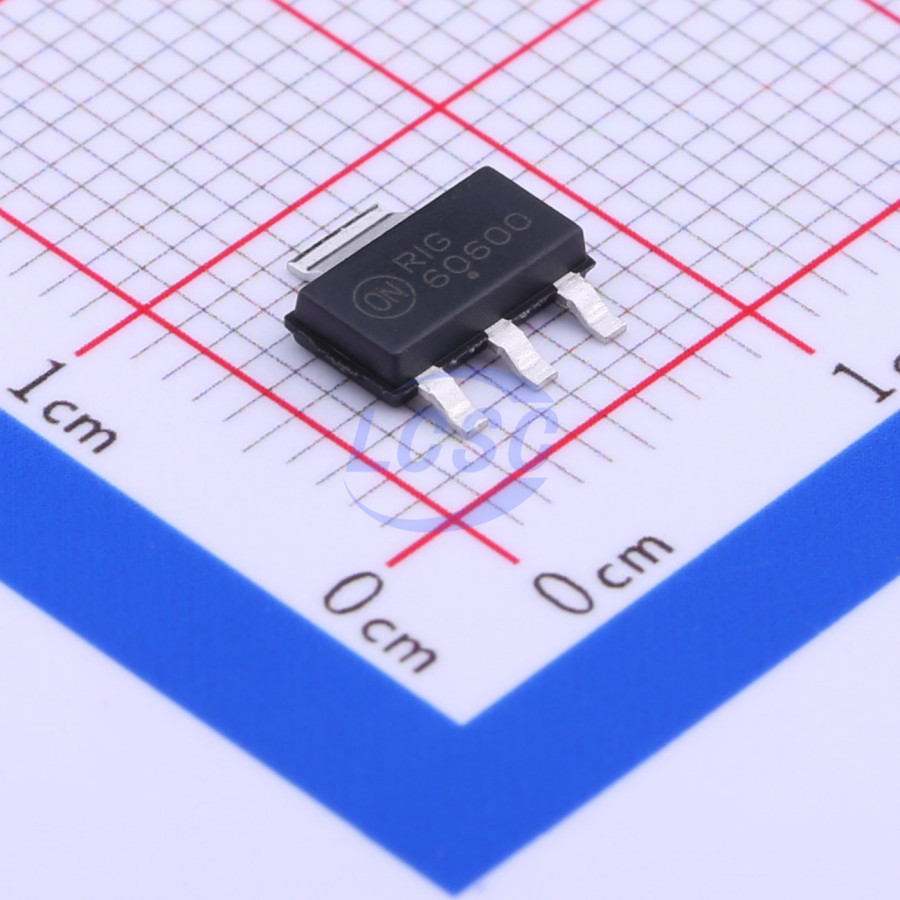

NSV60600MZ4T1G
Bipolar (BJT) Transistor PNP 60V 6A 0.9MHz 2W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
TRANS PNP 60V 6A SOT-223
- Manufacturer
- onsemi
- Manufacturer part #
- NSV60600MZ4T1G
- Store part #
- C328097
- Package / case
- SOT-223
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
755 in stock
#C328097
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.39 | ₹56.39 |
| 10+ | ₹45.29 | ₹452.90 |
| 30+ | ₹40.71 | ₹1,221.30 |
| 100+ | ₹34.83 | ₹3,483.00 |
| 500+ | ₹32.23 | ₹16,115.00 |
| 1,000+ | ₹30.48 | ₹30,480.00 |
1 × ₹56.39
₹56.39
excl. GST
₹66.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
NSV60600MZ4T1G
₹56.39 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 100nA
- Transition frequency(fT)
- 900kHz
- Collector - Emitter Voltage VCEO
- 60V
- Emitter-Base Voltage VEBO
- 6V
- DC Current Gain
- 100
- Current - Collector(Ic)
- 6A
- Pd - Power Dissipation
- 2W
- Number
- 1 PNP
- type
- PNP
- Vce Saturation(VCE(sat))
- 350mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.204 g
Overview
e2PowerEdge family of low VCE(sat) transistors are surface mount devices featuring ultra low saturation voltage (VCE(sat)) and high current gain capability. These are designed for use in low voltage, high speed switching applications where affordable efficient energy control is important.
Applications
- DC−DC converters and power management in portable and battery powered products such as cellular and cordless phones, PDAs, computers, printers, digital cameras and MP3 players
- Low voltage motor controls in mass storage products such as disc drives and tape drives
- Air bag deployment and in the instrument cluster in the automotive industry
Key features
- Complementary to NSS60601MZ4
- NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DSS60600MZ4-13#C154848DIODES · SOT-223 | DIODES | SOT-223 | 5 | ₹55.42 · 5 in stock | View |
 | LBTP660Z4TZHG#C5273339LRC · SOT-223 | LRC | SOT-223 | 2,365 | ₹54.94 · 2,365 in stock | View |
| NSS60600MZ4T3G#C895125onsemi · SOT-223 | onsemi | SOT-223 | 100 | ₹107.69 · 100 in stock | View | |
 | ZX5T1951GTA#C155516DIODES · SOT-223 | DIODES | SOT-223 | 8,573 | ₹57.68 · 8,573 in stock | View |
 | ZX5T1951GQTA#C7418377DIODES · SOT-223-3 | DIODES | SOT-223-3 | 25 | ₹140.07 · 25 in stock | View |
