onsemiDatasheet (PDF)

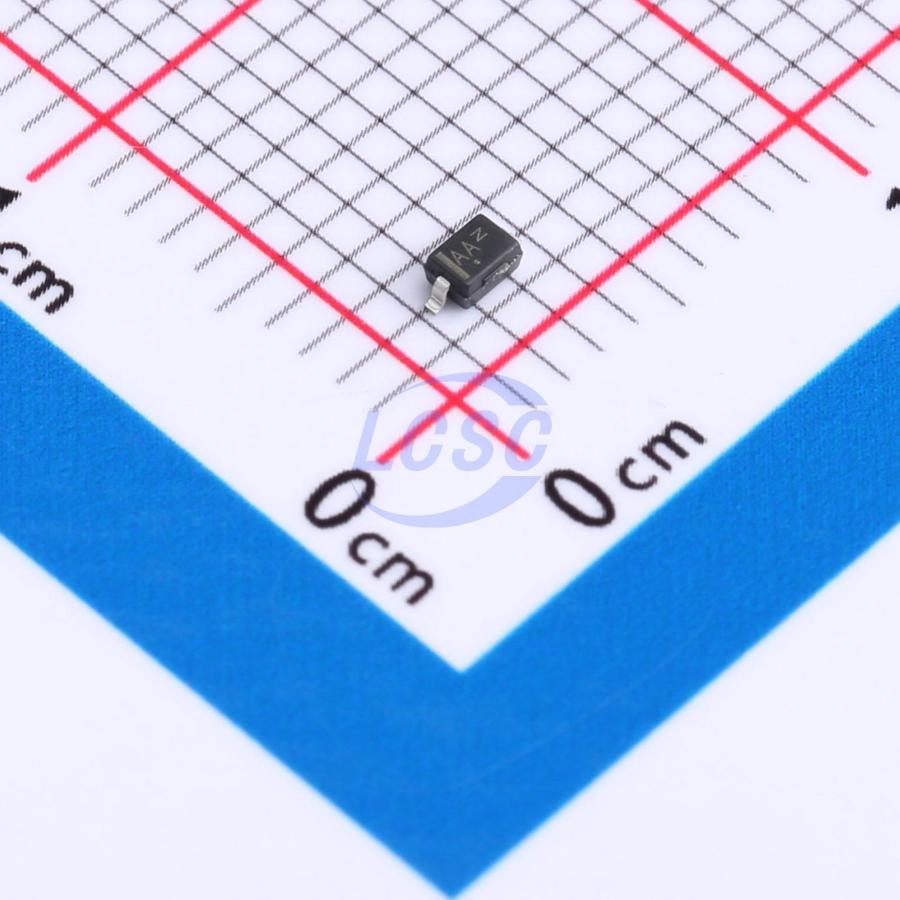

NSVBAS21AHT1G
Diode Independent 200V 200mA Surface Mount SOT-323
SOD-323ROHS3 CompliantActive
DIODE GP 200V 200mA SOT-323
- Manufacturer
- onsemi
- Manufacturer part #
- NSVBAS21AHT1G
- Store part #
- C889783
- Package / case
- SOD-323
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C889783
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.72 | ₹103.60 |
| 50+ | ₹16.54 | ₹827.00 |
| 150+ | ₹14.46 | ₹2,169.00 |
| 500+ | ₹12.89 | ₹6,445.00 |
| 3,000+ | ₹11.64 | ₹34,920.00 |
| 6,000+ | ₹11.01 | ₹66,060.00 |
5 × ₹20.72
₹103.60
excl. GST
₹122.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NSVBAS21AHT1G
₹103.60 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 50ns
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Pd - Power Dissipation
- 200mW
- Voltage - Forward(Vf@If)
- 1.25V@200mA
- Reverse Leakage Current (Ir)
- 40nA@200V
- Non-Repetitive Peak Forward Surge Current
- 625mA
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAS20H#C2903805LGE · SOD-323 | LGE | SOD-323 | 1,350 | ₹2.29 · 1,350 in stock | View |
 | BAS21H#C5274435LGE · SOD-323 | LGE | SOD-323 | 8,950 | ₹2.41 · 8,950 in stock | View |
 | LBAS21HT1G#C12742LRC · SOD-323 | LRC | SOD-323 | 95,580 | ₹3.31 · 95,580 in stock | View |
 | BAS21HT1G#C82466onsemi · SOD-323 | onsemi | SOD-323 | 67,560 | ₹3.63 · 67,560 in stock | View |
 | LBAS20HT1G#C150967LRC · SOD-323 | LRC | SOD-323 | 11,420 | ₹3.51 · 11,420 in stock | View |
