NSZ5V6V2T5G

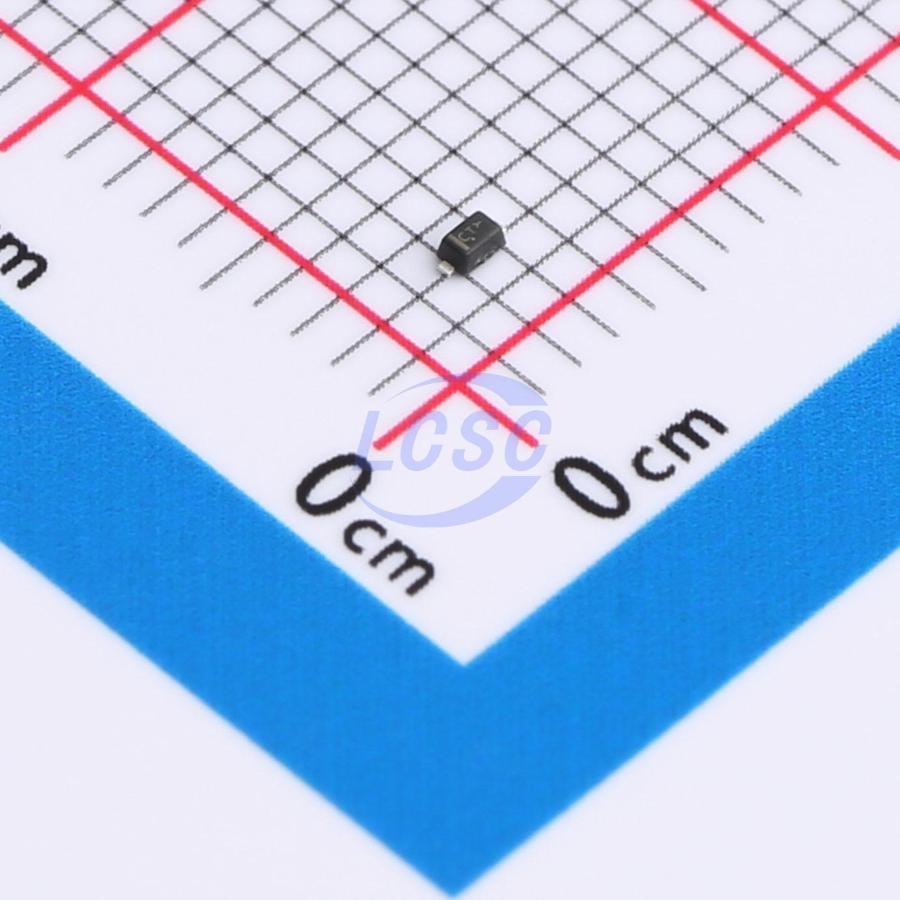

Zener Diode 5.6V 200mW Surface Mount SOD-523
SOD-523ROHS3 CompliantActive
DIODE ZENER 5.6V 200mW SOD-523
- Manufacturer
- onsemi
- Manufacturer part #
- NSZ5V6V2T5G
- Store part #
- C896488
- Package / case
- SOD-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C896488
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.48 | ₹137.40 |
| 50+ | ₹21.82 | ₹1,091.00 |
| 150+ | ₹19.40 | ₹2,910.00 |
| 500+ | ₹16.37 | ₹8,185.00 |
| 2,500+ | ₹15.02 | ₹37,550.00 |
| 5,000+ | ₹14.21 | ₹71,050.00 |
5 × ₹27.48
₹137.40
excl. GST
₹162.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
NSZ5V6V2T5G
₹137.40 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 1uA@2V
- Impedance(Zzt)
- 40Ω
- Zener Voltage(Range)
- 5.49V~5.73V
- Zener Voltage(Nom)
- 5.6V
- Impedance(Zzk)
- 200Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.07 g
Overview
This series of Zener diodes is packaged in a SOD- 523 surface mount package. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.
Applications
- cellular phones
- hand held portables
- high density PC boards
Key features
- Standard Zener Breakdown Voltage of 5.6V
- Steady State Power Rating of 200mW
- Small Body Outline Dimensions: 0.047"×0.032" (1.20mm×0.80mm)
- Low Body Height: 0.028" (0.7mm)
- ESD Rating of Class 3 (>16kV) per Human Body Model
- Tight Tolerance VZ
- These are Pb- Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
