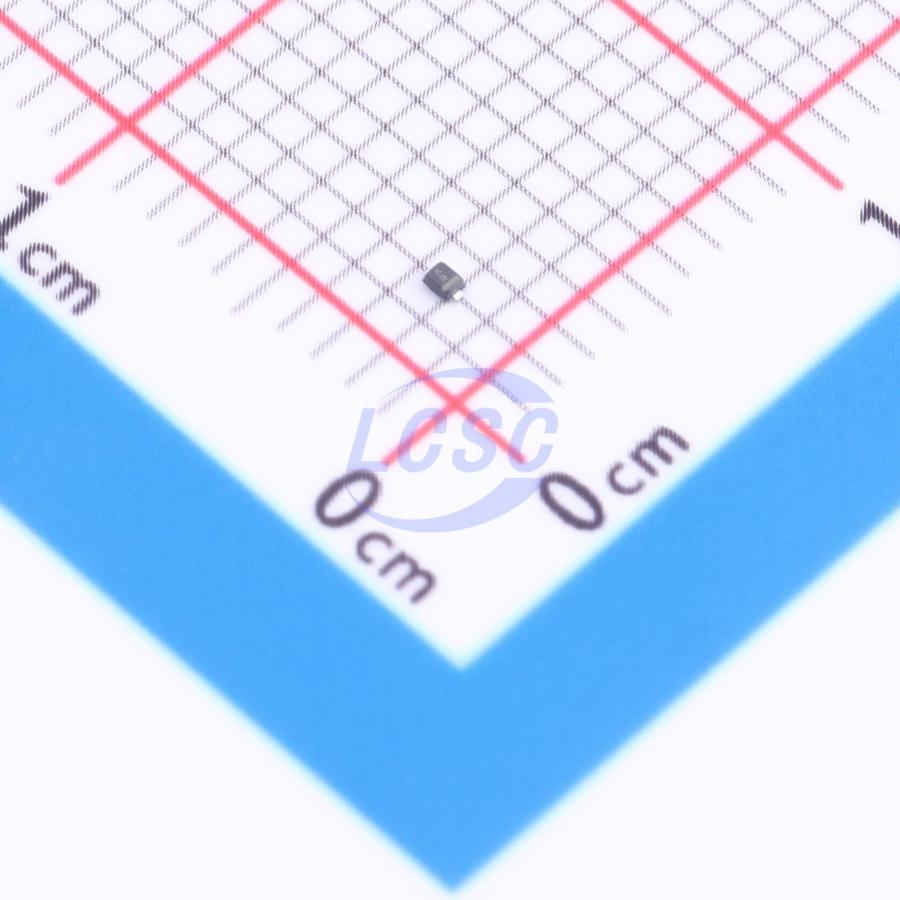

NZ9F16VT5G
1 Independent 15.2V~16.8V 16V SOD-923 Single Zener Diodes RoHS
SOD-923ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- NZ9F16VT5G
- Store part #
- C896523
- Package / case
- SOD-923
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C896523
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.17 | ₹110.85 |
| 50+ | ₹21.78 | ₹1,089.00 |
| 150+ | ₹21.51 | ₹3,226.50 |
| 500+ | ₹21.26 | ₹10,630.00 |
5 × ₹22.17
₹110.85
excl. GST
₹130.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
NZ9F16VT5G
₹110.85 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 250mW
- Reverse Leakage Current (Ir)
- 100nA@12V
- Impedance(Zzt)
- 50Ω
- Zener Voltage(Range)
- 15.2V~16.8V
- Zener Voltage(Nom)
- 16V
- Impedance(Zzk)
- 80Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.121 g
Overview
This series of Zener diodes is packaged in a SOD- 923 surface mount package. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.
Applications
- cellular phones
- hand held portables
- high density PC boards
Key features
- Standard Zener Breakdown Voltage Range - 2.4 V to 24 V
- Steady State Power Rating of 250 mW
- Small Body Outline Dimensions: 0.039" x 0.024" (1.00 mm x 0.60 mm)
- Low Body Height: 0.016" (0.40 mm)
- ESD Rating of Class 3 (>16 kV) per Human Body Model
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC - Q101 Qualified and PPAP Capable
- These Devices are Pb - Free, Halogen Free/BFR Free and are RoHS Compliant
