onsemiDatasheet (PDF)

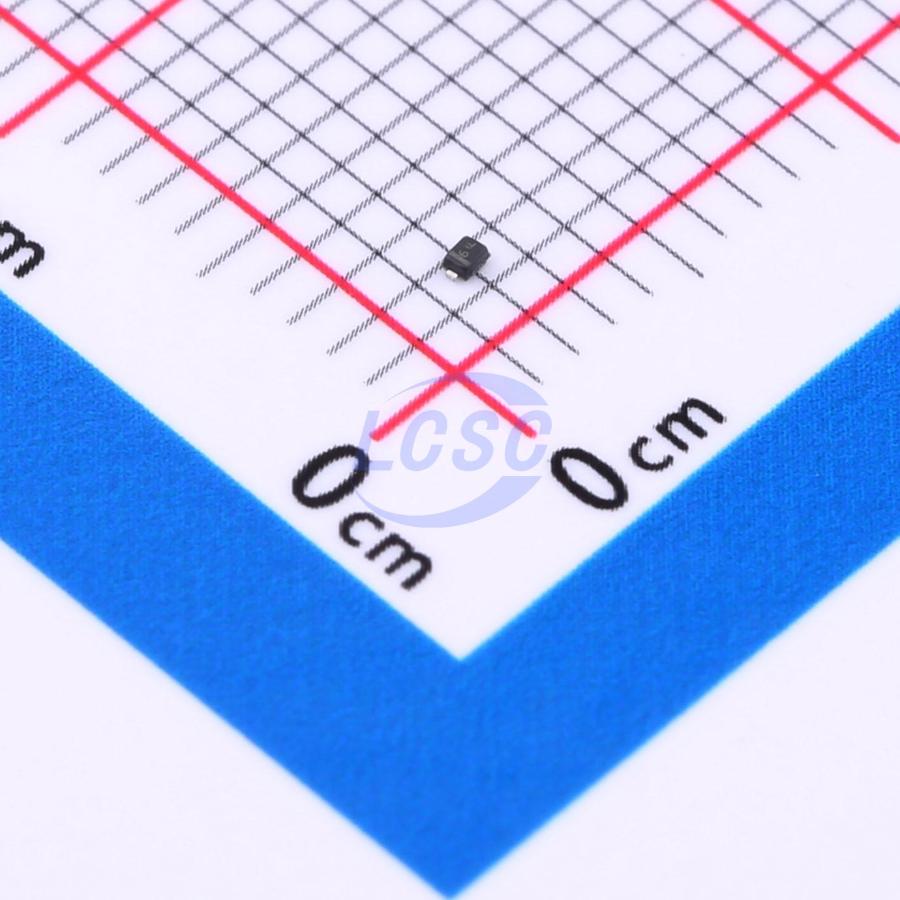

NZ9F6V2T5G
Zener Diode 6.2V 250mW Surface Mount SOD-923
SOD-923ROHS3 CompliantActive
DIODE ZENER 6.2V 250mW SOD-923
- Manufacturer
- onsemi
- Manufacturer part #
- NZ9F6V2T5G
- Store part #
- C896534
- Package / case
- SOD-923
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C896534
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.97 | ₹54.85 |
| 50+ | ₹10.82 | ₹541.00 |
| 150+ | ₹10.73 | ₹1,609.50 |
| 500+ | ₹10.64 | ₹5,320.00 |
5 × ₹10.97
₹54.85
excl. GST
₹64.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
NZ9F6V2T5G
₹54.85 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 250mW
- Reverse Leakage Current (Ir)
- 1uA@3V
- Impedance(Zzt)
- 60Ω
- Zener Voltage(Range)
- 5.89V~6.51V
- Zener Voltage(Nom)
- 6.2V
- Impedance(Zzk)
- 100Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.008 g
Overview
This series of Zener diodes is packaged in a SOD- 923 surface mount package. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.
Applications
- cellular phones
- hand held portables
- high density PC boards
Key features
- Standard Zener Breakdown Voltage Range - 2.4 V to 24 V
- Steady State Power Rating of 250 mW
- Small Body Outline Dimensions: 0.039" x 0.024" (1.00 mm x 0.60 mm)
- Low Body Height: 0.016" (0.40 mm)
- ESD Rating of Class 3 (>16 kV) per Human Body Model
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC - Q101 Qualified and PPAP Capable
- These Devices are Pb - Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DZ9F6V2S92-7#C5124987DIODES · SOD-923 | DIODES | SOD-923 | 40 | ₹10.58 · 40 in stock | View |
 | CZRQR52C6V2-HF#C3013404Comchip · 0402(SOD-923F) | Comchip | 0402(SOD-923F) | 50 | ₹23.87 · 50 in stock | View |
 | CZRQR6V2B-HF#C3013441Comchip · SOD-923F | Comchip | SOD-923F | 185 | ₹14.00 · 185 in stock | View |
 | CDZVT2R6.2B#C3728893ROHM · SOD-923 | ROHM | SOD-923 | 6,360 | ₹4.39 · 6,360 in stock | View |
 | NZ9F5V6T5G#C604657onsemi · SOD-923 | onsemi | SOD-923 | 10 | ₹44.28 · 10 in stock | View |
