NexperiaDatasheet (PDF)

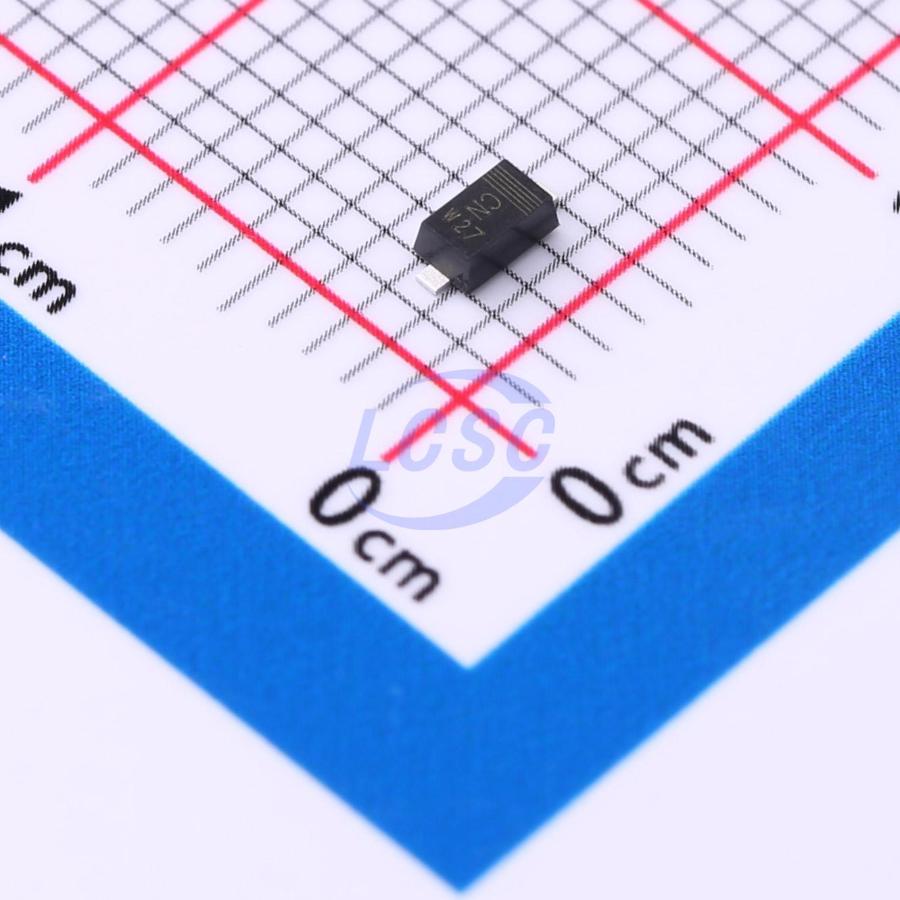

NZH4V7B,115
Zener Diode Independent 4.7V 500mW Surface Mount SOD-123F
SOD-123FROHS3 CompliantActive
DIODE ZENER 4.7V 500mW SOD-123F
- Manufacturer
- Nexperia
- Manufacturer part #
- NZH4V7B,115
- Store part #
- C551643
- Package / case
- SOD-123F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
950 in stock
#C551643
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.64 | ₹96.40 |
| 100+ | ₹7.58 | ₹758.00 |
| 300+ | ₹6.55 | ₹1,965.00 |
| 3,000+ | ₹5.77 | ₹17,310.00 |
| 6,000+ | ₹5.15 | ₹30,900.00 |
| 9,000+ | ₹4.84 | ₹43,560.00 |
10 × ₹9.64
₹96.40
excl. GST
₹113.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NZH4V7B,115
₹96.40 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 5uA@1V
- Impedance(Zzt)
- 25Ω
- Zener Voltage(Range)
- 4.55V~4.8V
- Zener Voltage(Nom)
- 4.7V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
General- purpose Zener diodes in a SOD123F small and flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤ 500 mW
- Wide working voltage range
- Small plastic package suitable for surface-mounted design
- Low differential resistance
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5230A_R1_00001#C391550PANJIT · SOD-123 | PANJIT | SOD-123 | 3,440 | ₹4.62 · 3,440 in stock | View |
| BZT52B4V7HE3-TP#C3729477MCC · SOD-123 | MCC | SOD-123 | 3,000 | ₹6.15 · 3,000 in stock | View | |
 | BZT52B4V7#C968129YANGJIE · SOD-123 | YANGJIE | SOD-123 | 1,628 | ₹3.39 · 1,628 in stock | View |
 | LMSZ5230BT1G#C131750LRC · SOD-123 | LRC | SOD-123 | 2,940 | ₹3.10 · 2,940 in stock | View |
 | MMSZ5230B#C22395554R+O · SOD-123 | R+O | SOD-123 | 16,280 | ₹2.95 · 16,280 in stock | View |
