DDFDatasheet (PDF)

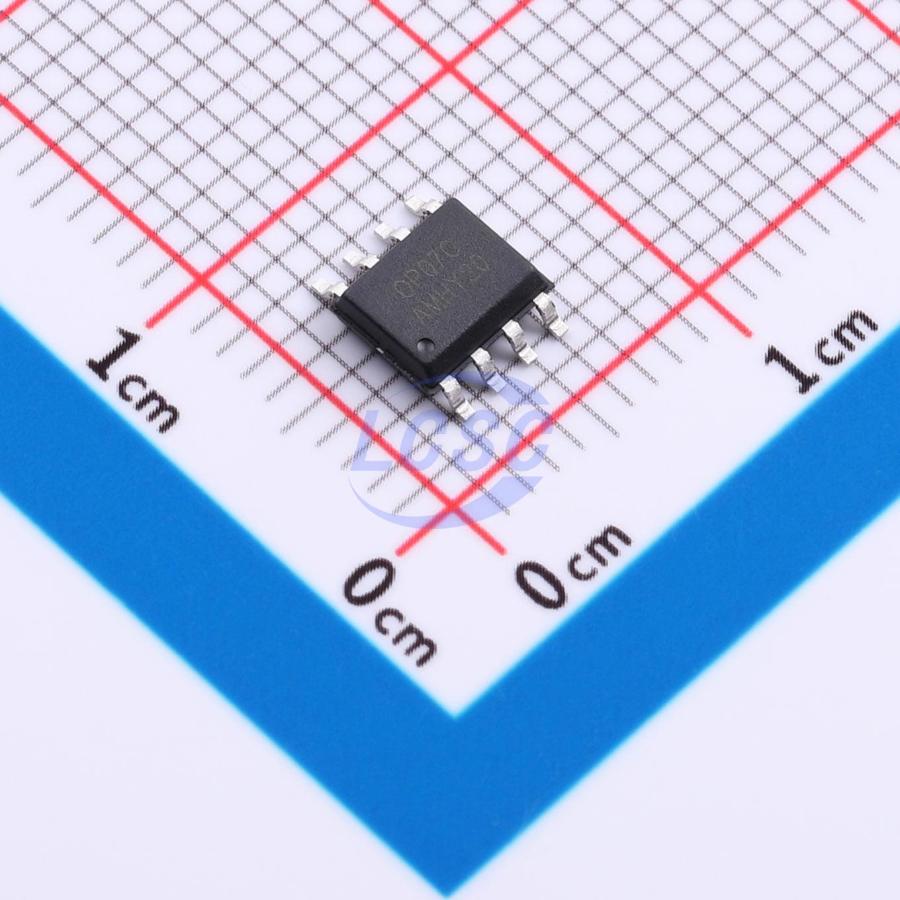

OP07C-SOP-8
1 150uV 0.5V/us 100dB 2nA 1.2MHz SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- DDF
- Manufacturer part #
- OP07C-SOP-8
- Store part #
- C53199147
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,905 in stock
#C53199147
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.61 | ₹73.05 |
| 50+ | ₹11.40 | ₹570.00 |
| 150+ | ₹9.80 | ₹1,470.00 |
| 500+ | ₹8.60 | ₹4,300.00 |
| 2,500+ | ₹7.83 | ₹19,575.00 |
| 4,000+ | ₹7.36 | ₹29,440.00 |
5 × ₹14.61
₹73.05
excl. GST
₹86.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
OP07C-SOP-8
₹73.05 for 5 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 150uV
- Slew Rate
- 0.5V/us
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 2nA
- Input Offset Voltage Drift(Vos TC)
- 500nV/℃
- Gain Bandwidth Product
- 1.2MHz
- Input Voltage Noise Density
- 9.6nV/√Hz@1kHz
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.149 g
Overview
The OP07 is a low-noise, non-chopper-stabilized bipolar op-amp. Through wafer-level trimming, the device achieves ultralow input offset voltage, eliminating the need for external nulling in most applications. It is graded into two versions — OP07A and OP07C — based on offset voltage performance. Additional features include low input bias current, high open-loop gain, wide input voltage range, high CMRR, and high input impedance. Typical applications include high-gain instrumentation and weak signal amplification from sensors.
Applications
- Instrumentation
- Sensors & Control
- Wireless Base Station Control Circuits
Key features
- OP07A: Maximum offset voltage ±25uV
- OP07C: Maximum offset voltage ±150uV
- Low input offset voltage
- Low input offset voltage drift
- Typical input offset current: ±2nA
- Wide supply voltage range: ±3V ~ ±18V
- Wide input voltage range: 0V ~ ±13V
- Gain bandwidth product: 1.2MHz
- Slew rate: 0.5 V/μs
- Low noise
