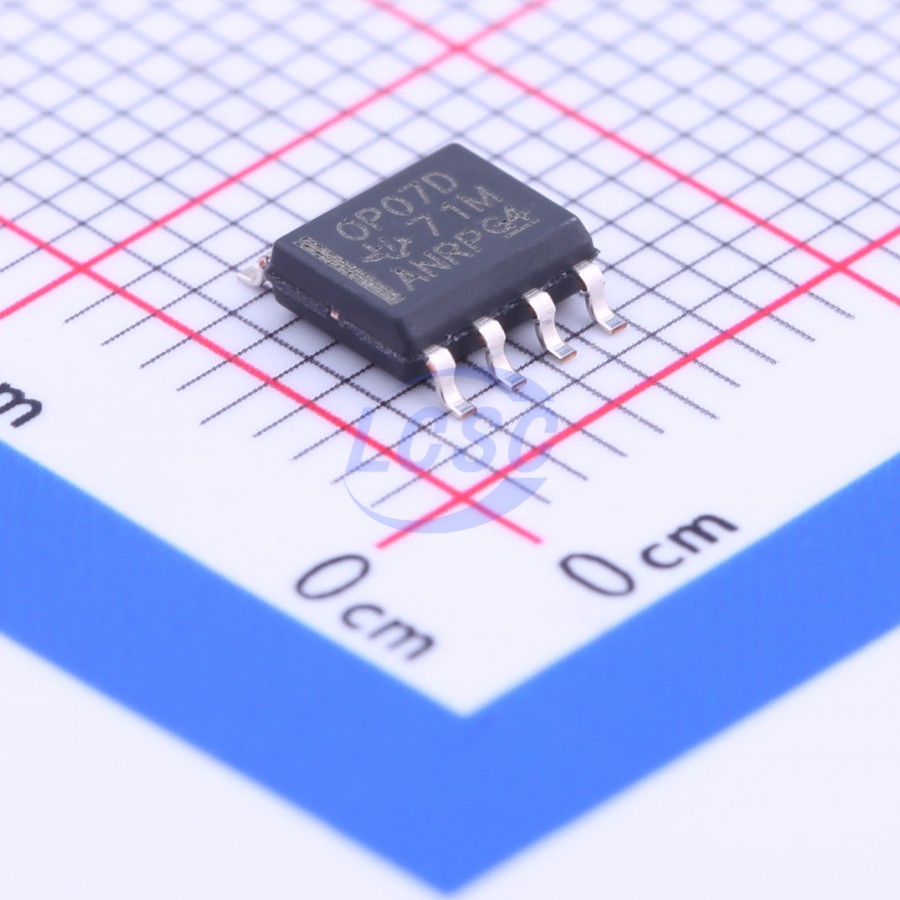

OP07DDR
1 150uV 0.3V/us 110dB 1.8nA 600kHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
OP07x Precision Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- OP07DDR
- Store part #
- C191405
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,085 in stock
#C191405
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹131.18 | ₹131.18 |
| 10+ | ₹115.95 | ₹1,159.50 |
| 30+ | ₹101.59 | ₹3,047.70 |
| 100+ | ₹90.93 | ₹9,093.00 |
| 500+ | ₹86.58 | ₹43,290.00 |
| 1,000+ | ₹84.41 | ₹84,410.00 |
1 × ₹131.18
₹131.18
excl. GST
₹154.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OP07DDR
₹131.18 for 1 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 150uV
- Slew Rate
- 0.3V/us
- Input Offset Current(Ios)
- 800pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Ib - Input Bias Current
- 1.8nA
- Input Offset Voltage Drift(Vos TC)
- 500nV/℃
- Gain Bandwidth Product
- 600kHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 9.8nV/√Hz@1kHz
- Dual Supply
- -18V~-3V;3V~18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
These devices offer low offset and long-term stability by means of a low-noise, chopperless, bipolar-input-transistor amplifier circuit. For most applications, external components are not required for offset nulling and frequency compensation. The true differential input, with a wide input-voltage range and outstanding common-mode rejection, provides maximum flexibility and performance in high-noise environments and in noninverting applications. Low bias currents and extremely high input impedances are maintained over the entire temperature range.
Applications
- Wireless Base Station Control Circuits
- Optical Network Control Circuits
- Instrumentation
- Sensors and Controls
- Precision Filters
Key features
- Low Noise
- No External Components Required
- Replace Chopper Amplifiers at a Lower Cost
- Wide Input-Voltage Range: 0 to ±14 V (Typ)
- Wide Supply-Voltage Range: ±3 V to ±18 V
