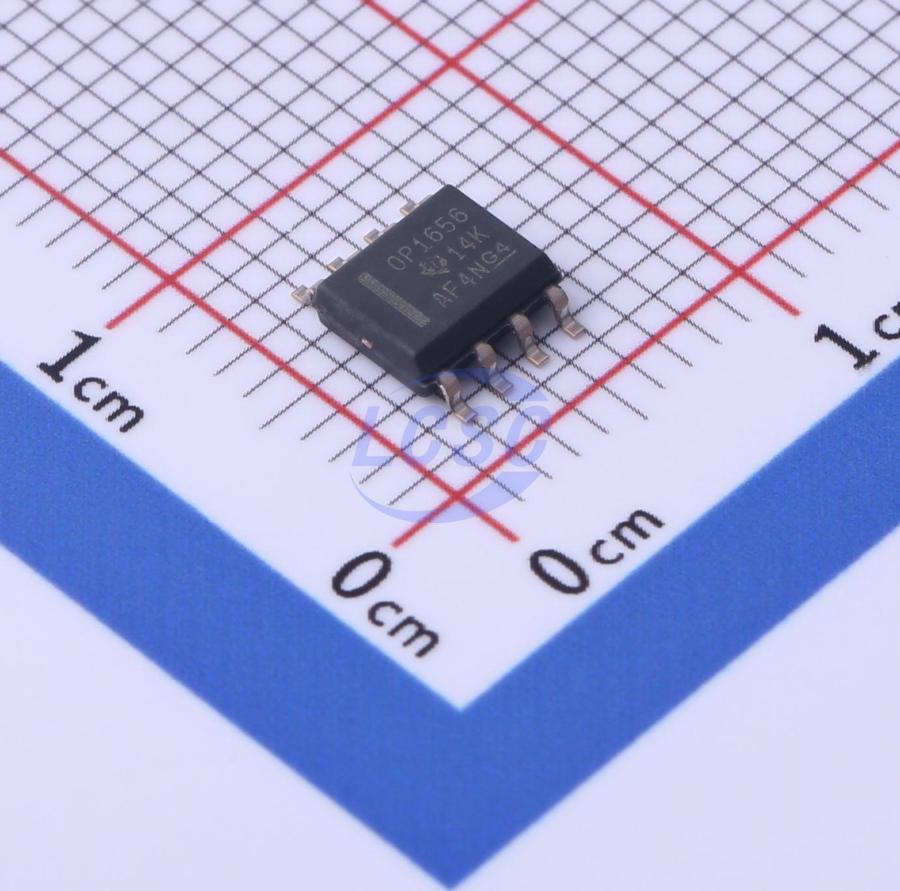

OPA1656IDR

The OPA1655 and OPA1656 (OPA165x) are operational amplifiers designed specifically for audio and industrial applications where maintaining signal fidelity is crucial. The FET input architecture achieves a low voltage noise density of 2.9nV/√Hz and a current noise density of 6fA/√Hz, enabling ultra-low noise in various circuits. The OPA165x is designed with high bandwidth and high open-loop gain, offering a distortion rate as low as 0.000035% (–129dB) at 20kHz and improving audio signal fidelity across the full audio bandwidth. The device also features excellent output current drive capabilities, providing rail-to-rail output swing within a 250mV supply voltage range under a 2kΩ load and capable of delivering 100mA of output current. The OPA165x can operate over an ultra-wide supply voltage range from ±2.25V to ±18V and also at a supply current of only 3.9mA (4.5V to 36V), thus meeting the power supply limitations of many types of audio products. It is rated for an operating temperature range from –40°C to +125°C.

Applications

• Professional microphones and wireless systems
• Professional audio mixers/control surfaces
• Guitar amplifiers and other instrument amplifiers
• A/V receivers
• Bookshelf stereo sound systems
• Professional audio amplifiers
• DJ equipment
• Turntables
• Special function modules

Key features

• Ultra-low noise:
• Voltage noise: 2.9nV/√Hz at 10kHz
• Current noise: 6fA/√Hz at 1kHz
• Low distortion:
• 0.000029% (–131dB) at 1kHz
• 0.000035% (–129dB) at 20kHz
• High open-loop gain: 150dB
• High output current: 100mA
• Low input bias current: 10pA
• Slew rate: 24V/μs
• Gain bandwidth product: 53MHz
• Rail-to-rail output
• Wide supply voltage range: ±2.25V to ±18V or 4.5V to 36V
• Quiescent current: 3.9mA per channel
