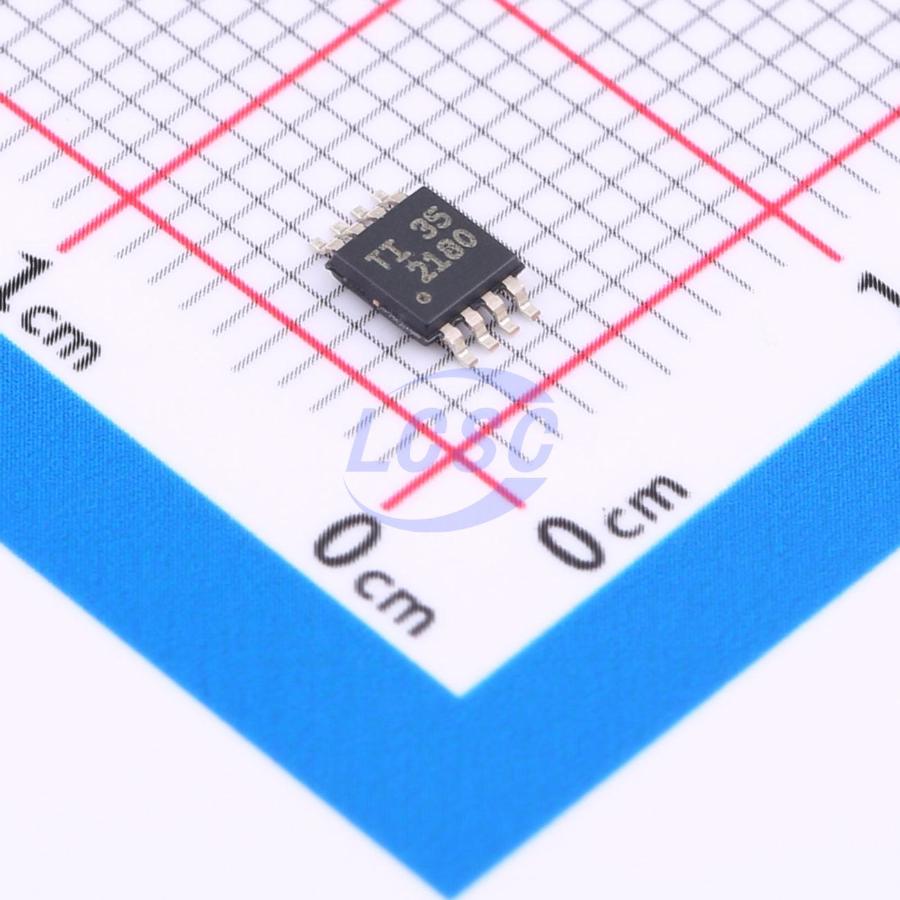

OPA2180QDGKRQ1

The OPA180-Q1 and OPA2180-Q1 operational amplifiers utilize TI's proprietary zero-drift technology, which can simultaneously provide low offset voltage (75μV) and achieve near-zero drift performance over time and temperature changes. These high-precision, low quiescent current micro operational amplifiers offer high input impedance and rail-to-rail output swing within 18mV of the supply rails. The input common-mode range includes the negative supply rail. Single or dual power supplies with a voltage range of 4V to 36V (±2V to ±18V) can be used. Both single-channel and dual-channel versions are available in a VSSOP-8 package. The single-package product (OPA180-Q1) is rated for a temperature range of -40°C to +125°C, while the dual-package (OPA2180-Q1) is rated for a temperature range of -40°C to +105°C.

Applications

• Automotive high-precision current measurement
• On-Board Charger (OBC)
• Battery Management System (BMS)
• Motor control
• Traction inverter

Key features

• Qualified for automotive applications with the following AEC-Q100 characteristics:
• OPA180-Q1 device temperature grade 1: -40°C to +125°C ambient operating temperature range
• OPA2180-Q1 device temperature grade 2: -40°C to +105°C ambient operating temperature range
• Device HBM ESD classification level 1C
• Device CDM ESD classification level C5
• Wide supply voltage: ±2V to ±18V
• Low offset voltage: 75μV (maximum)
• Zero drift: 0.1μV/°C
• Low noise: 10nV/√Hz
• Ultralow 1/f noise
• Excellent DC accuracy: PSRR: 126dB; CMRR: 114dB; AOL: 120dB
• Quiescent current: 525μA (maximum)
• Rail-to-rail output: input includes negative supply rail
• Low bias current: 250pA (typical)
• RFI-filtered inputs
• MicroSIZE package
