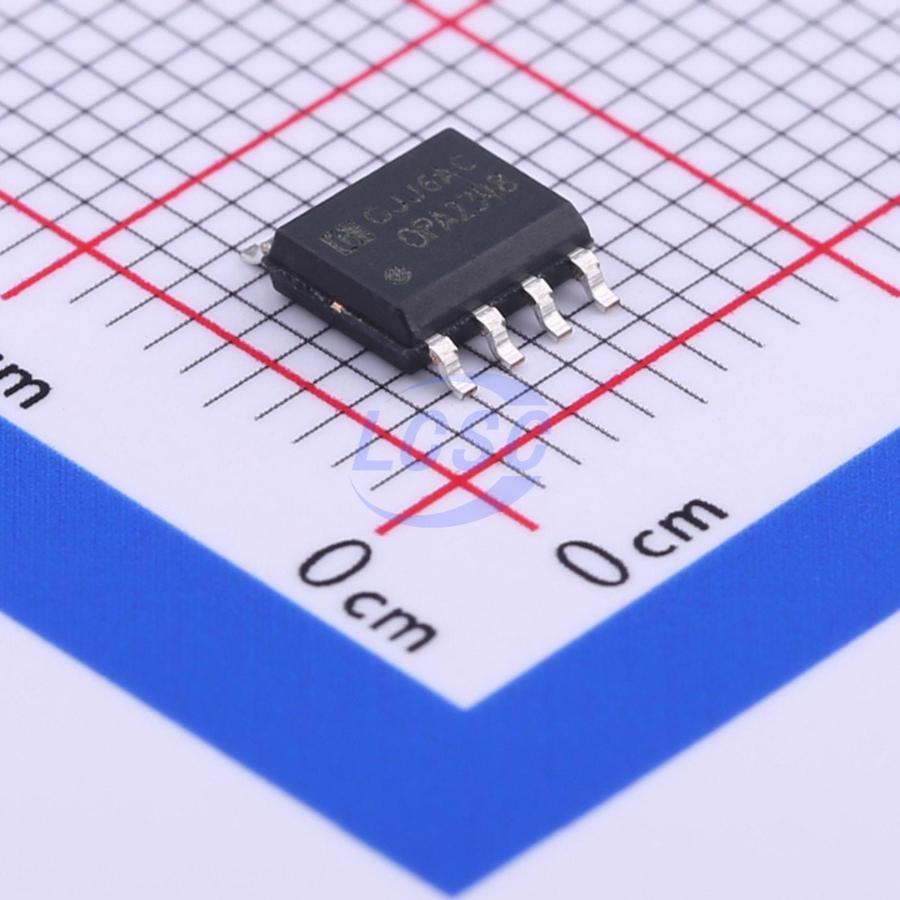

OPA2348M/TR
Standard (General Purpose) Amplifier 2 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOP-8
SOP-8RoHSActive
1MHz,45uA,CMOS,Rail-to-Rail OPERATIONAL AMPLIFIERS
- Manufacturer
- HGSEMI
- Manufacturer part #
- OPA2348M/TR
- Store part #
- C444393
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,630 in stock
#C444393
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.50 | ₹142.50 |
| 50+ | ₹22.46 | ₹1,123.00 |
| 150+ | ₹19.88 | ₹2,982.00 |
| 500+ | ₹16.66 | ₹8,330.00 |
| 2,500+ | ₹14.88 | ₹37,200.00 |
| 5,000+ | ₹14.02 | ₹70,100.00 |
5 × ₹28.50
₹142.50
excl. GST
₹168.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OPA2348M/TR
₹142.50 for 5 + GST
Specifications
- Output Current
- 10mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 6mV
- Slew Rate
- 1.5V/us
- Input Offset Current(Ios)
- 0.5pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 0.5pA
- Common Mode Rejection Ratio(CMRR)
- 82dB
- Input Offset Voltage Drift(Vos TC)
- 175uV/℃
- Quiescent Current
- 45uA
- Gain Bandwidth Product
- 1MHz
- Input Voltage Noise Density
- 35nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.225 g
