TIDatasheet (PDF)

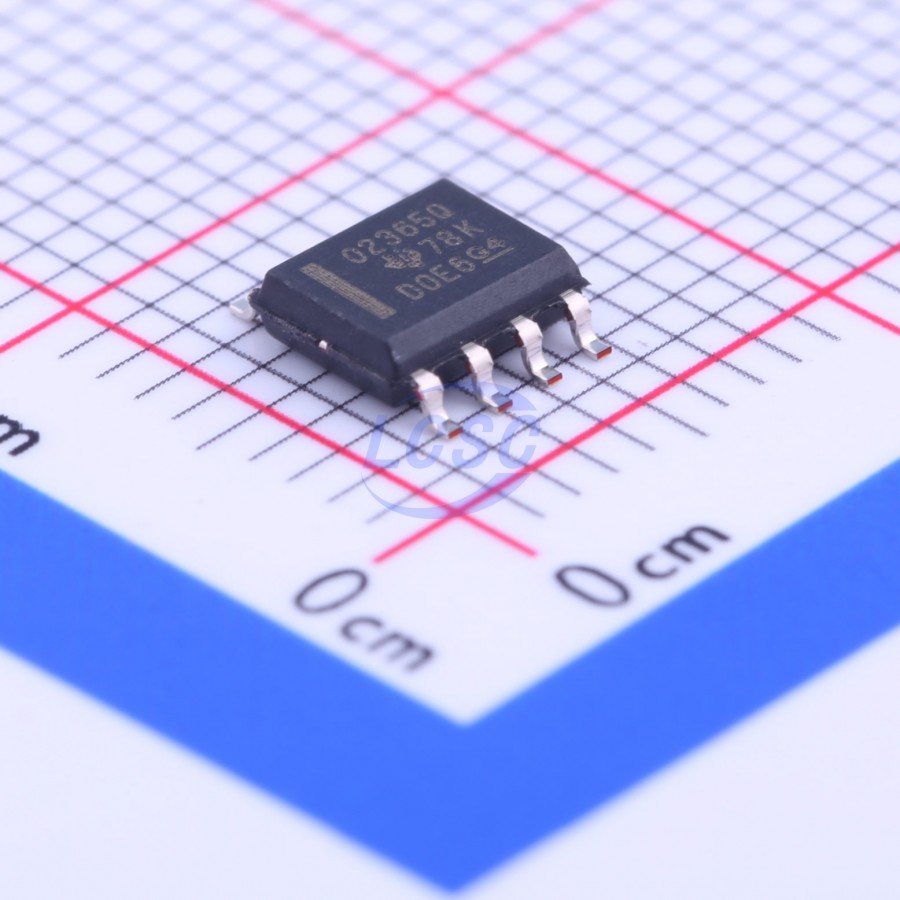

OPA2365AQDRQ1
65mA 2 100uV 25V/us 100dB 0.2pA 5mA 50MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
50-MHz Low-Distortion High-CMRR Rail-to-Rail I/O Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- OPA2365AQDRQ1
- Store part #
- C181619
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,440 in stock
#C181619
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹198.54 | ₹198.54 |
| 10+ | ₹181.78 | ₹1,817.80 |
| 30+ | ₹171.33 | ₹5,139.90 |
| 100+ | ₹160.44 | ₹16,044.00 |
| 500+ | ₹155.65 | ₹77,825.00 |
| 1,000+ | ₹153.48 | ₹1,53,480.00 |
1 × ₹198.54
₹198.54
excl. GST
₹234.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OPA2365AQDRQ1
₹198.54 for 1 + GST
Specifications
- Output Current
- 65mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 100uV
- Slew Rate
- 25V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 0.2pA
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- Quiescent Current
- 5mA
- Gain Bandwidth Product
- 50MHz
- Features
- ESD protection
- Input Voltage Noise Density
- 4.5nV/√Hz@100kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.2V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
The OPAx365-Q1 zero-crossover family, rail-to-rail, high-performance, CMOS operational amplifiers are optimized for very low voltage, single-supply applications. Rail-to-rail input/output, low noise (4.5 nV/√Hz) and high speed operation (50-MHz gain bandwidth) make these devices ideal for driving sampling data converters (such as the ADS7822-Q1 or the ADS1115-Q1), specifically in short to midrange radar applications. The OPAx356-Q1 family of operational amplifiers are also well-suited for HEV/EV and Powertrain applications in DC-DC converters and as transmission control in engine control units. Special features include an excellent common-mode rejection ratio (CMRR), no input stage crossover distortion, high input impedance, and rail-to-rail input and output swing. The input common-mode range includes both the negative and positive supplies. The output voltage swing is within 10 mV of the rails. The OPA365-Q1 (single version) is available in the 5-pin SOT-23 package. The OPA2365-Q1 (dual version) is available in the 8-pin SOIC package. All versions are specified for operation from -40°C to 125°C. Single and dual versions have identical specifications for maximum design flexibility.
Applications
- Automotive
- ADAS
- HEV/EV and Powertrain
- Body and Lighting
- Blind Spot Detection Engine Control Units
- DC-DC Converters
- Short to Mid Range Radars
- Collision Warning
- Industrial Heads Up Display
Key features
- Qualified for Automotive Applications
- AEC-Q100 Qualified with the Following Results: Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature Range Device HBM ESD Classification Level H2 Device CDM ESD Classification Level C3B
- Gain Bandwidth: 50 MHz
- Zero-Crossover Distortion Topology
- Excellent THD+N: 0.0004%
- CMRR: 100 dB (Minimum)
- Rail-to-Rail Input and Output
- Input 100 mV Beyond Supply Rail
- Low Noise: 4.5 nV/√Hz at 100 kHz
- Slew Rate: 25 V/µs
- Fast Settling: 0.3 µs to 0.01%
- Precision
- Low Offset: 100 µV
- Low Input Bias Current: 0.2 pA
- 2.2-V to 5.5-V Operation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | OPA2365AID#C1346093TI · SOIC-8 | TI | SOIC-8 | 11 | ₹133.35 · 11 in stock | View |
 | OPA2365AIDR#C130011TI · SOIC-8 | TI | SOIC-8 | 8,347 | ₹184.28 · 8,347 in stock | View |
 | RS8702XK#C5372652RUNIC · SOIC-8 | RUNIC | SOIC-8 | 3,530 | ₹161.54 · 3,530 in stock | View |
 | TLV2365DR#C22427586TI · SOIC-8 | TI | SOIC-8 | 873 | ₹242.40 · 873 in stock | View |
 | AD8652ARZ-REEL7#C207553ADI · SOIC-8 | ADI | SOIC-8 | 12 | ₹1,369.41 · 12 in stock | View |
