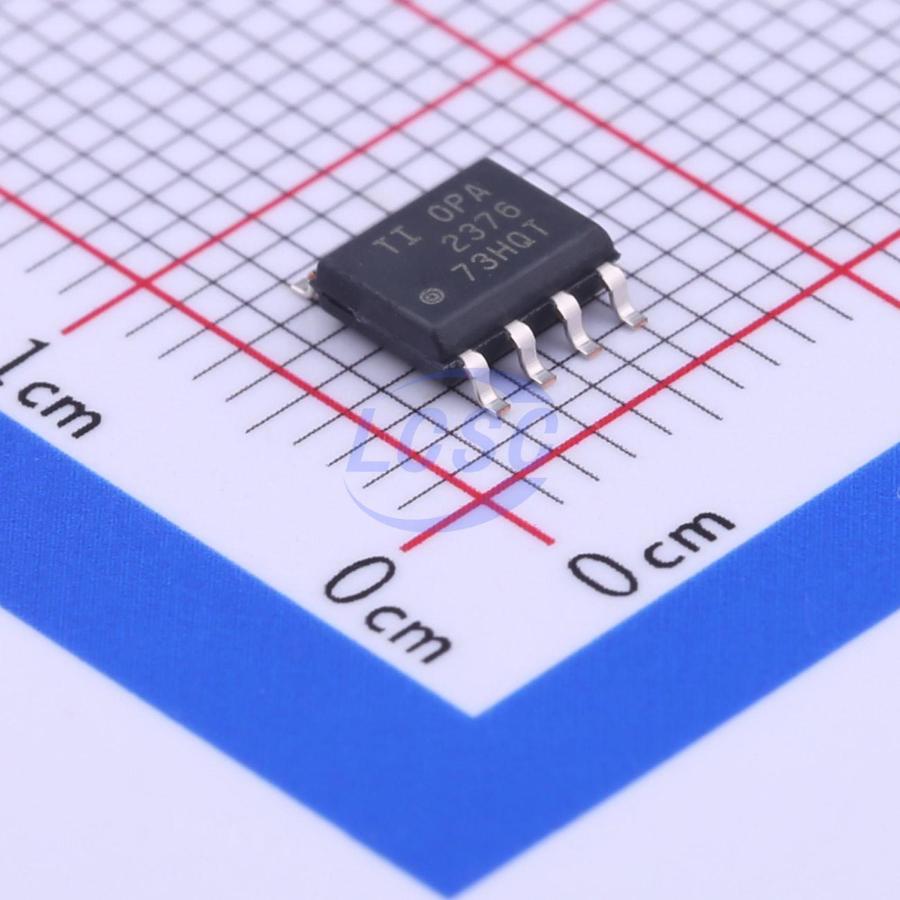

OPA2376AIDR

30mA 2 5uV 2V/us 76dB 0.2pA 760uA 5.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

Low-Noise, Low Quiescent Current, Precision Operational Amplifier

Manufacturer: TI
Manufacturer part #: OPA2376AIDR
Store part #: C46316
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

17,084 in stock

#C46316

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹202.52	₹202.52
10+	₹169.24	₹1,692.40
30+	₹150.97	₹4,529.10
100+	₹117.91	₹11,791.00
500+	₹108.76	₹54,380.00
1,000+	₹104.42	₹1,04,420.00

Quantity (min 1)

1 × ₹202.52

₹202.52

excl. GST

₹238.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA2376AIDR

₹202.52 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 30mA
Number of Channels: 2
Vos - Input Offset Voltage: 5uV
Slew Rate: 2V/us
Input Offset Current(Ios): 0.2pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 76dB
Ib - Input Bias Current: 0.2pA
Input Offset Voltage Drift(Vos TC): 260nV/℃
Quiescent Current: 760uA
Gain Bandwidth Product: 5.5MHz
Features: ESD protection;Reverse-phase input protection
Input Voltage Noise Density: 7.5nV/√Hz@1kHz
Dual Supply: -2.75V~-1.1V;1.1V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.2V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.29 g

Overview

The OPA376 family represent a new generation of low-noise operational amplifiers with e -trim, offering outstanding dc precision and ac performance. Rail-to-rail input and output, low offset (25μv max), low noise (7.5nV/√Hz) ，quiescent current of 950μA max, and a 5.5MHz bandwidth make this part very attractive for a variety of precision and portable applications. In addition, this device has a reasonably wide supply range with excellent PSRR, making it attractive for applications that run directly from batteries without regulation. The OPA376 (single version) is available in MicroSIZE SC70 - 5, SOT23 - 5, and SO - 8 packages. The OPA2376 (dual) is offered in the WCSP - 8, MSOP - 8, and SO - 8 packages. The OPA4376 (quad) is offered in a TSSOP - 14 package. All versions are specified for operation from -40°C to +125°C

Applications

ADC BUFFER
AUDIO EQUIPMENT
MEDICAL INSTRUMENTATION
HANDHELD TEST EQUIPMENT
ACTIVE FILTERING
SENSOR SIGNAL CONDITIONING

Key features

LOW NOISE: 7.5nV/√Hz at 1kHz
0.1Hz TO 10Hz NOISE: 0.8μνPP
QUIESCENT CURRENT: 760μA (typ)
LOW OFFSETVOLTAGE: 5μν (typ)
GAINBANDWIDTHPRODUCT: 5.5MHz
RAIL - TO - RAIL INPUT AND OUTPUT
SINGLE - SUPPLY OPERATION
SUPPLY VOLTAGE: 2.2V to 5.5V
SPACE - SAVING PACKAGES: SC - 70, SOT23, WCSP, MSOP, TSSOP
