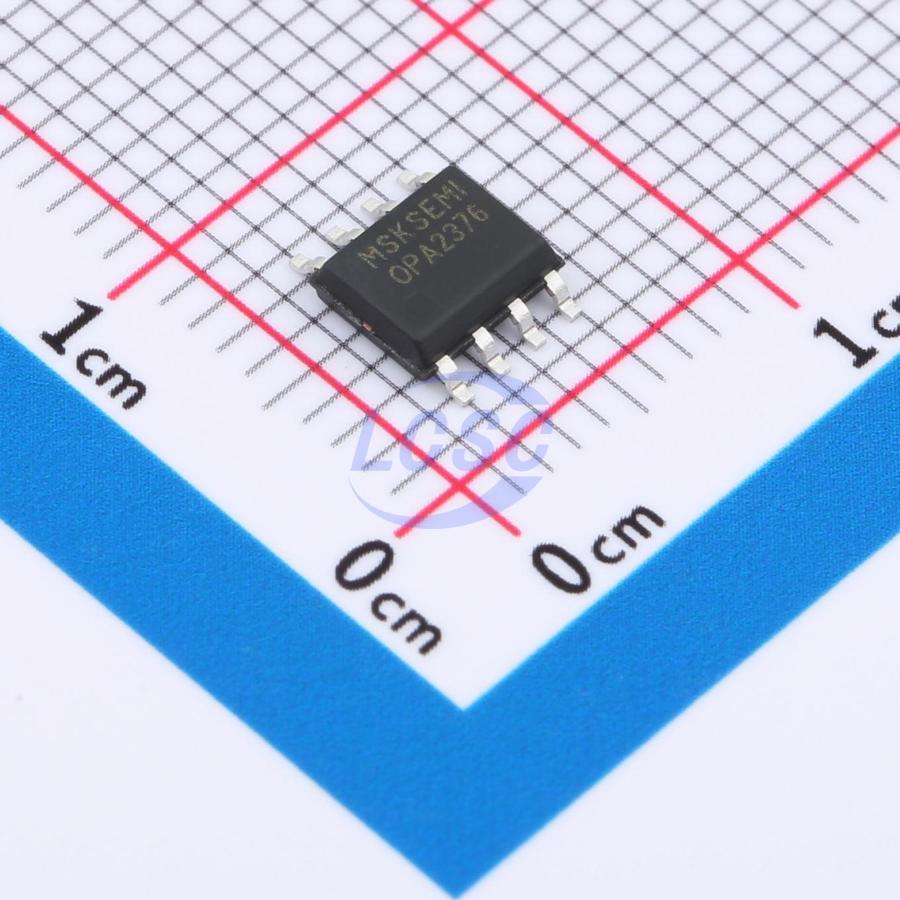

OPA2376AIDR-MS

30mA 2 2uV 5V/us 500pA 130dB 6MHz 600uA Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

Ultra Low Noise Rail-to-Rail I/O CMOS Precision Operational Amplifiers

Manufacturer: MSKSEMI
Manufacturer part #: OPA2376AIDR-MS
Store part #: C22462537
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,888 in stock

#C22462537

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹43.90	₹43.90
10+	₹38.46	₹384.60
30+	₹36.08	₹1,082.40
100+	₹33.04	₹3,304.00
500+	₹31.73	₹15,865.00
1,000+	₹31.08	₹31,080.00

Quantity (min 1)

1 × ₹43.90

₹43.90

excl. GST

₹51.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA2376AIDR-MS

₹43.90 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 30mA
Number of Channels: 2
Vos - Input Offset Voltage: 2uV
Slew Rate: 5V/us
Input Offset Current(Ios): 50pA
Operating Temperature: -25℃~+125℃
Ib - Input Bias Current: 500pA
Common Mode Rejection Ratio(CMRR): 130dB
Input Offset Voltage Drift(Vos TC): 30nV/℃
Gain Bandwidth Product: 6MHz
Quiescent Current: 600uA
Features: Zero drift / auto-zero;Reverse-phase input protection;Built-in compensation
Input Voltage Noise Density: 6nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-1V;1V~2.75V
Single Supply: 2V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.17 g

Overview

The OPA376 family represents a new generation of low-noise operational amplifiers, offering outstanding dc precision and ac performance. Rail-to-Rail input and output, low offset (2μV), low noise (6nV/√Hz), quiescent current of 600 μA, and a 6-MHz bandwidth make this part very attractive for a variety of precision and portable applications. In addition, this device has a reasonably wide supply range (2V to 5.5V) with excellent PSRR making it attractive for applications that run directly from batteries without regulation. The OPA376AIDBVR-MS (single), OPA2376AIDR-MS (dual) families of operational amplifiers are specified for operation from -25°C to +125°C.

Applications

ADC Buffer
Audio Equipment
Medical Instrumentation
Handheld Test Equipment
Active Filtering
Sensor Signal Conditioning

Key features

Input Offset Voltage: 2μV (Typical)
Zero Drift: 0.03μV/°C (Typical)
Ultra Low Noise: 6nV/√Hz at 1kHz
Supply Range: 2V to 5.5V
Gain Bandwidth: 6 MHz
Slew rate: 5V/μs
Quiescent current: 600μA (Vs = 5V)
Rail-to-Rail Input and Output
Micro size Packages: OPA376AIDBVR-MS: SOT - 23 - 5; OPA2376AIDR-MS: SOP - 8
