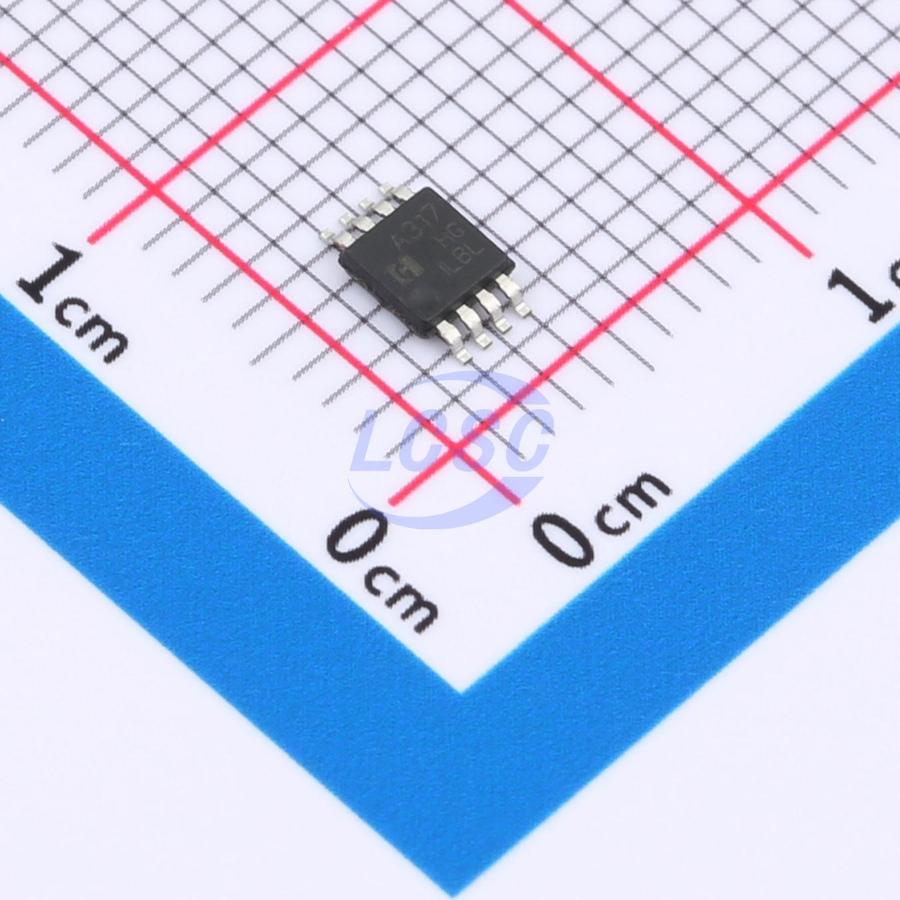

OPA317MM/TR

30mA 1 10uV 0.2V/us 20pA 110dB 25uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps

MSOP-8RoHSActive

350KHz Zero-Drift CMOS Rail-to-Rail IO Opamp

Manufacturer: HGSEMI
Manufacturer part #: OPA317MM/TR
Store part #: C22461610
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,981 in stock

#C22461610

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹63.28	₹63.28
10+	₹49.71	₹497.10
30+	₹43.92	₹1,317.60
100+	₹36.73	₹3,673.00
500+	₹33.34	₹16,670.00
1,000+	₹31.54	₹31,540.00

Quantity (min 1)

1 × ₹63.28

₹63.28

excl. GST

₹74.67 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA317MM/TR

₹63.28 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 30mA
Number of Channels: 1
Vos - Input Offset Voltage: 10uV
Slew Rate: 0.2V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -45℃~+125℃
Ib - Input Bias Current: 20pA
Common Mode Rejection Ratio(CMRR): 110dB
Input Offset Voltage Drift(Vos TC): 50nV/℃
Quiescent Current: 25uA
Gain Bandwidth Product: 350kHz
Features: EMI filtering/RF suppression;Zero drift / auto-zero
Input Voltage Noise Density: 70nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-900mV;900mV~2.75V
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.194 g
