HGSEMIDatasheet (PDF)

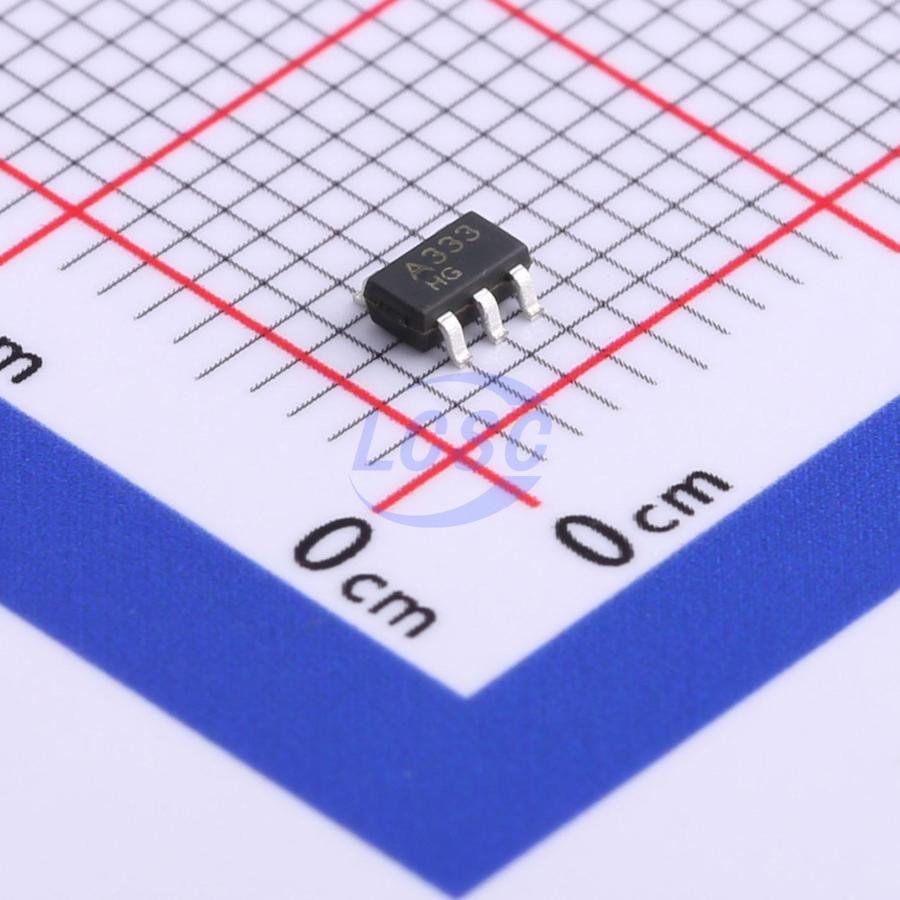

OPA333AIM5/TR
5mA 1 2uV 0.16V/us 70pA 115dB 17uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
CMOS operational amplifier
- Manufacturer
- HGSEMI
- Manufacturer part #
- OPA333AIM5/TR
- Store part #
- C565345
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,005 in stock
#C565345
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹54.15 | ₹270.75 |
| 50+ | ₹43.06 | ₹2,153.00 |
| 150+ | ₹38.49 | ₹5,773.50 |
| 500+ | ₹32.63 | ₹16,315.00 |
| 3,000+ | ₹30.01 | ₹90,030.00 |
| 6,000+ | ₹28.27 | ₹1,69,620.00 |
5 × ₹54.15
₹270.75
excl. GST
₹319.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
OPA333AIM5/TR
₹270.75 for 5 + GST
Specifications
- Output Current
- 5mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 2uV
- Slew Rate
- 0.16V/us
- Input Offset Current(Ios)
- 140pA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 70pA
- Common Mode Rejection Ratio(CMRR)
- 115dB
- Input Offset Voltage Drift(Vos TC)
- 20nV/℃
- Quiescent Current
- 17uA
- Gain Bandwidth Product
- 350kHz
- Features
- EMI filtering/RF suppression;Zero drift / auto-zero;Built-in compensation;Reverse-phase input protection;ESD protection
- Input Voltage Noise Density
- 55nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-900mV;900mV~2.75V
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HGV333M5/TR#C507202HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 15 | ₹53.42 · 15 in stock | View |
 | HGV333AIM5/TR#C565347HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 11 | ₹56.29 · 11 in stock | View |
 | HGA333M5/TR#C3007934HGSEMI · SOT23-5L | HGSEMI | SOT23-5L | 2,965 | ₹48.90 · 2,965 in stock | View |
 | OPA333M5/TR#C3007938HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 425 | ₹47.27 · 425 in stock | View |
 | TLV333AIM5/TR#C565346HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | On request | ₹53.95 · 0 in stock | View |
