UMWDatasheet (PDF)

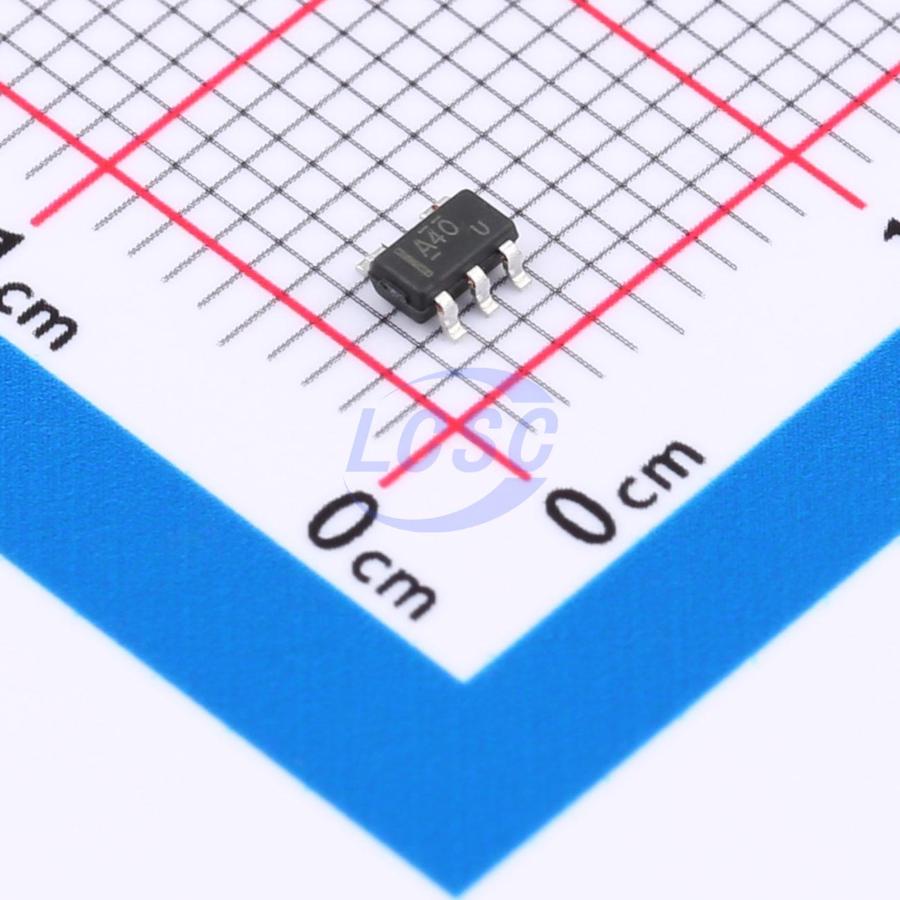

OPA340NA(UMW)
50mA 1 150uV 6V/us 80dB 0.2pA 5.5MHz 750uA Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS CompliantActive
Single-Supply, Rail-to-Rail Operational Amplifiers Series
- Manufacturer
- UMW
- Manufacturer part #
- OPA340NA(UMW)
- Store part #
- C20754798
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,625 in stock
#C20754798
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.14 | ₹225.70 |
| 50+ | ₹34.93 | ₹1,746.50 |
| 150+ | ₹30.55 | ₹4,582.50 |
| 500+ | ₹25.08 | ₹12,540.00 |
| 3,000+ | ₹22.66 | ₹67,980.00 |
| 6,000+ | ₹21.19 | ₹1,27,140.00 |
5 × ₹45.14
₹225.70
excl. GST
₹266.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
OPA340NA(UMW)
₹225.70 for 5 + GST
Specifications
- Output Current
- 50mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 150uV
- Slew Rate
- 6V/us
- Input Offset Current(Ios)
- 0.2pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 0.2pA
- Input Offset Voltage Drift(Vos TC)
- 2.5uV/℃
- Gain Bandwidth Product
- 5.5MHz
- Quiescent Current
- 750uA
- Input Voltage Noise Density
- 25nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
The UMW OPA340 series operates from single supplies as low as 2.5V, with an input common-mode voltage range that extends 500mV below ground and 500mV above the positive supply. With a 100kΩ load, the output voltage swing reaches within 1mV of either supply rail. These devices offer excellent dynamic response (bandwidth = 5.5MHz, slew rate = 6V/µs) while drawing only 750µA of quiescent current. Dual and quad versions feature fully independent circuitry for minimum crosstalk and freedom from interaction. All devices are rated for operation from -40°C to 85°C, with an extended operating temperature range of -55°C to 125°C.
Applications
- Driving A/D converters
- PCMCIA cards
- Data acquisition
- Process control
Key features
- Rail-to-rail input
- Rail-to-rail output (within 1mV)
- Miniature package
- Wide bandwidth: 5.5MHz
- High slew rate: 6V/µs
- Low THD+N: 0.0007% (f = 1kHz)
- Low quiescent current: 750µA/channel
- Single, dual, and quad versions
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV721IDBVR(UMW)#C18207570UMW · SOT23-5 | UMW | SOT23-5 | 2,615 | ₹13.34 · 2,615 in stock | View |
 | TLV2631IDBVR(UMW)#C22373390UMW · SOT-23-5 | UMW | SOT-23-5 | 2,935 | ₹32.03 · 2,935 in stock | View |
