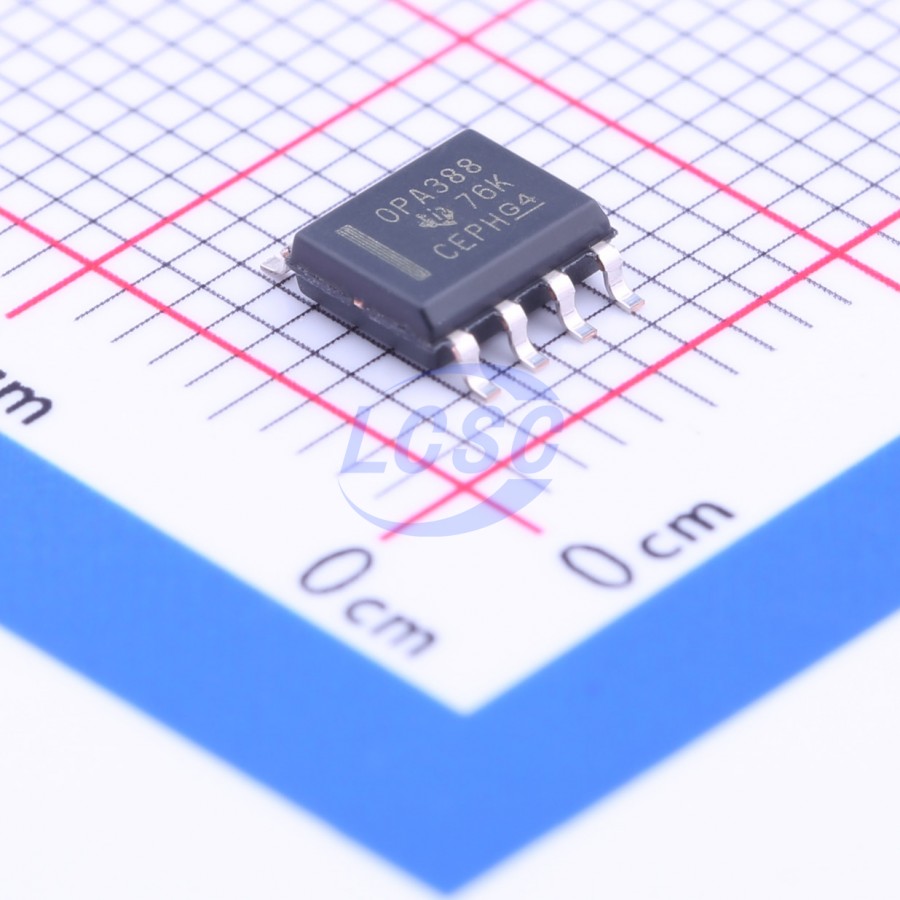

OPA388IDR

60mA 1 250nV 5V/us 140dB 30pA 2.4mA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

OPAx388 Precision, Zero-Drift, Zero-Crossover, True Rail-to-Rail Input/Output, Operational Amplifiers

Manufacturer: TI
Manufacturer part #: OPA388IDR
Store part #: C154118
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,683 in stock

#C154118

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
1+	₹395.58	₹395.58
10+	₹335.09	₹3,350.90
30+	₹297.24	₹8,917.20
100+	₹258.50	₹25,850.00
500+	₹241.09	₹1,20,545.00
1,000+	₹233.48	₹2,33,480.00

Quantity (min 1)

1 × ₹395.58

₹395.58

excl. GST

₹466.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA388IDR

₹395.58 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 60mA
Number of Channels: 1
Vos - Input Offset Voltage: 250nV
Slew Rate: 5V/us
Input Offset Current(Ios): 60pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 140dB
Ib - Input Bias Current: 30pA
Input Offset Voltage Drift(Vos TC): 5nV/℃
Quiescent Current: 2.4mA
Gain Bandwidth Product: 10MHz
Features: Zero drift / auto-zero;EMI filtering/RF suppression;Built-in compensation
Input Voltage Noise Density: 7nV/√Hz@1kHz
Dual Supply: -2.75V~-1.25V;1.25V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.175 g

Overview

The OPAx388 (OPA388, OPA2388, and OPA4388) series of precision operational amplifiers are ultra-low noise, fast-settling, zero-drift, zero-crossover devices that provide rail-to-rail input and output operation. These features and excellent ac performance, combined with only 0.25 μv of offset and 0.005 μV/°C of drift over temperature, makes the OPAx388 ideal for driving high-precision, analog-to-digital converters (ADCs) or buffering the output of high-resolution, digital-to-analog converters (DACs). This design results in superior performance when driving analog-to-digital converters (ADCs) without degradation of linearity.

Applications

Bridge Amplifiers
Strain Gauges
Test Equipment
Current Shunt Measurement
Thermocouples, Thermopiles
Electronic Scales
Medical Instrumentation
Resistor Thermal Detectors
Precision Active Filters

Key features

Ultra-Low Offset Voltage: ±0.25 μV
Zero-Drift: ±0.005 μV/°C
Zero-Crossover: 140-dB CMRR
True RRIO
Low Noise: 7.0 nV/√Hz at 1 kHz
No 1/f Noise: 140 nVPP (0.1 Hz to 10 Hz)
Fast Settling: 2 μs (1 V to 0.01%)
Gain Bandwidth: 10 MHz
Single Supply: 2.5 V to 5.5 V
Dual Supply: ±1.25 V to ±2.75 V
True Rail-to-Rail Input and Output
EMI/RFI Filtered Inputs
Industry-Standard Packages: Single in SOIC-8, SOT-23-5, and VSSOP-8; Dual in SOIC-8 and VSSOP-8; Quad in SOIC-14 and TSSOP-14
