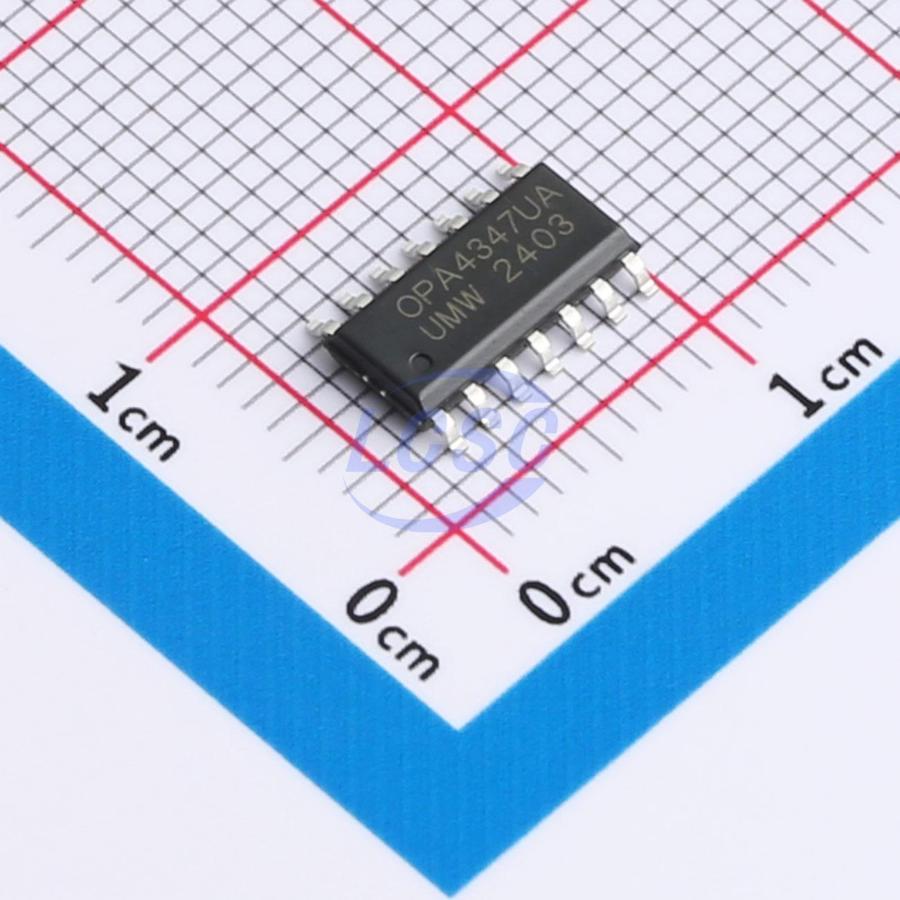

OPA4347UA(UMW)

17mA 2mV 170V/ms 80dB 0.5pA 350kHz 20uA Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS

SOP-14ROHS CompliantActive

Low-Power, Rail-to-Rail Operational Amplifiers

Manufacturer: UMW
Manufacturer part #: OPA4347UA(UMW)
Store part #: C21713890
Package / case: SOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,898 in stock

#C21713890

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹40.38	₹40.38
10+	₹35.44	₹354.40
30+	₹33.08	₹992.40
100+	₹30.51	₹3,051.00
500+	₹29.21	₹14,605.00
1,000+	₹28.58	₹28,580.00

Quantity (min 1)

1 × ₹40.38

₹40.38

excl. GST

₹47.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA4347UA(UMW)

₹40.38 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 17mA
Vos - Input Offset Voltage: 2mV
Slew Rate: 170V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -55℃~+125℃
Common Mode Rejection Ratio(CMRR): 80dB
Ib - Input Bias Current: 0.5pA
Input Offset Voltage Drift(Vos TC): 3uV/℃
Gain Bandwidth Product: 350kHz
Quiescent Current: 20uA
Input Voltage Noise Density: 60nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.3V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.288 g

Overview

The OPA347 features a compact form factor and ultra-low power consumption (34μA max per channel), making it ideal for portable and battery-powered applications. Its input range extends 200mV beyond the supply rails, while the output swings to within 5mV of the supply rails. The OPA347 also offers an excellent speed-to-power ratio with a bandwidth of 350kHz. The device operates from a single or dual supply of 2.3V to 5.5V, and all versions are rated for an operating temperature range of -55℃ to +125℃.
