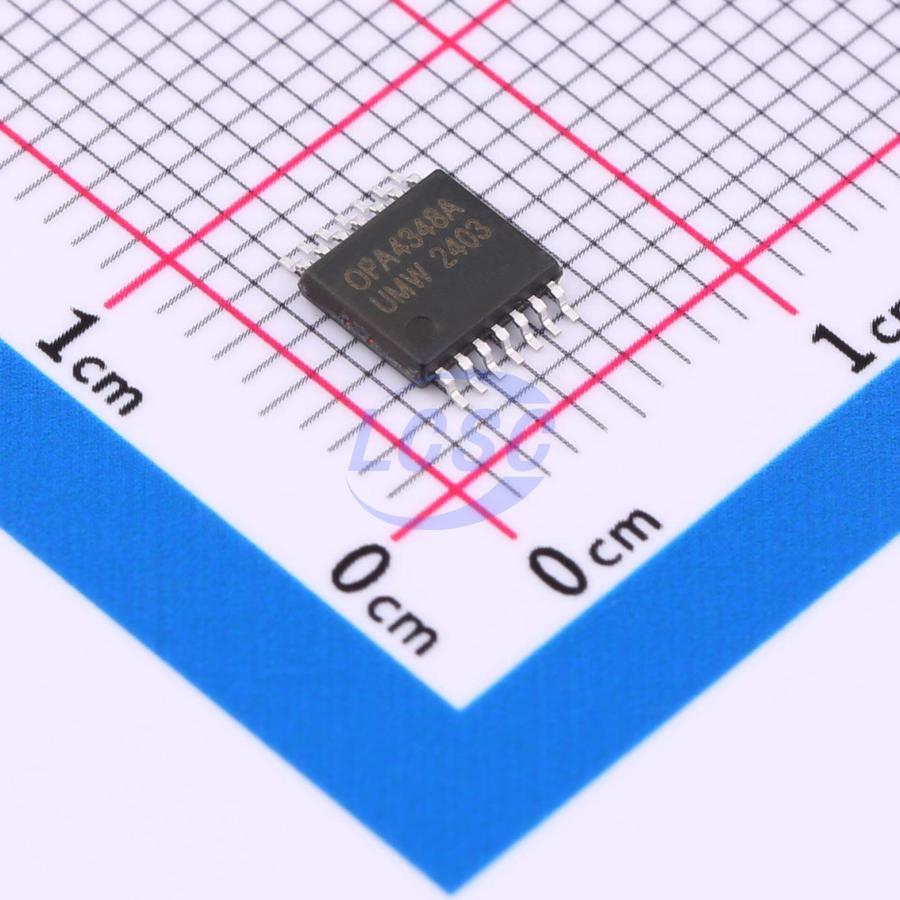

OPA4348AIPWR(UMW)
10mA 4 5mV 500V/ms 0.5pA 82dB 45uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-14ROHS CompliantActive
1MHz, 45μA, CMOS, Rail-to-Rail Operational Amplifiers
- Manufacturer
- UMW
- Manufacturer part #
- OPA4348AIPWR(UMW)
- Store part #
- C22368263
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,995 in stock
#C22368263
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.11 | ₹100.55 |
| 50+ | ₹17.49 | ₹874.50 |
| 150+ | ₹16.37 | ₹2,455.50 |
| 500+ | ₹14.96 | ₹7,480.00 |
| 2,500+ | ₹14.33 | ₹35,825.00 |
| 4,000+ | ₹13.96 | ₹55,840.00 |
5 × ₹20.11
₹100.55
excl. GST
₹118.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
OPA4348AIPWR(UMW)
₹100.55 for 5 + GST
Specifications
- Output Current
- 10mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 0.5pA
- Common Mode Rejection Ratio(CMRR)
- 82dB
- Input Offset Voltage Drift(Vos TC)
- 4uV/℃
- Quiescent Current
- 45uA
- Gain Bandwidth Product
- 1MHz
- Input Voltage Noise Density
- 35nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.26 g
Overview
The OPA348 series amplifiers are single-supply, low-power, CMOS op amps in miniature packages. This series features 1MHz extended bandwidth and 45μA supply current, suitable for low-power applications with 2.1V to 5.5V single supply. The 45μA low supply current and 0.5pA input bias current make the OPA348 series ideal for low-power, high-impedance applications such as smoke detectors and other sensors.
Applications
- Portable devices
- Battery-powered devices
- Smoke alarms
Key features
- Typical quiescent current: 45μA
- Low cost
- Rail-to-rail input and output
- Single-supply operating range: +2.1V to +5.5V
- Input bias current: 0.5pA
- Miniature packages: SC70-5, SOP-8, and TSSOP-14
- High speed-to-power ratio bandwidth: 1MHz
