UMWDatasheet (PDF)

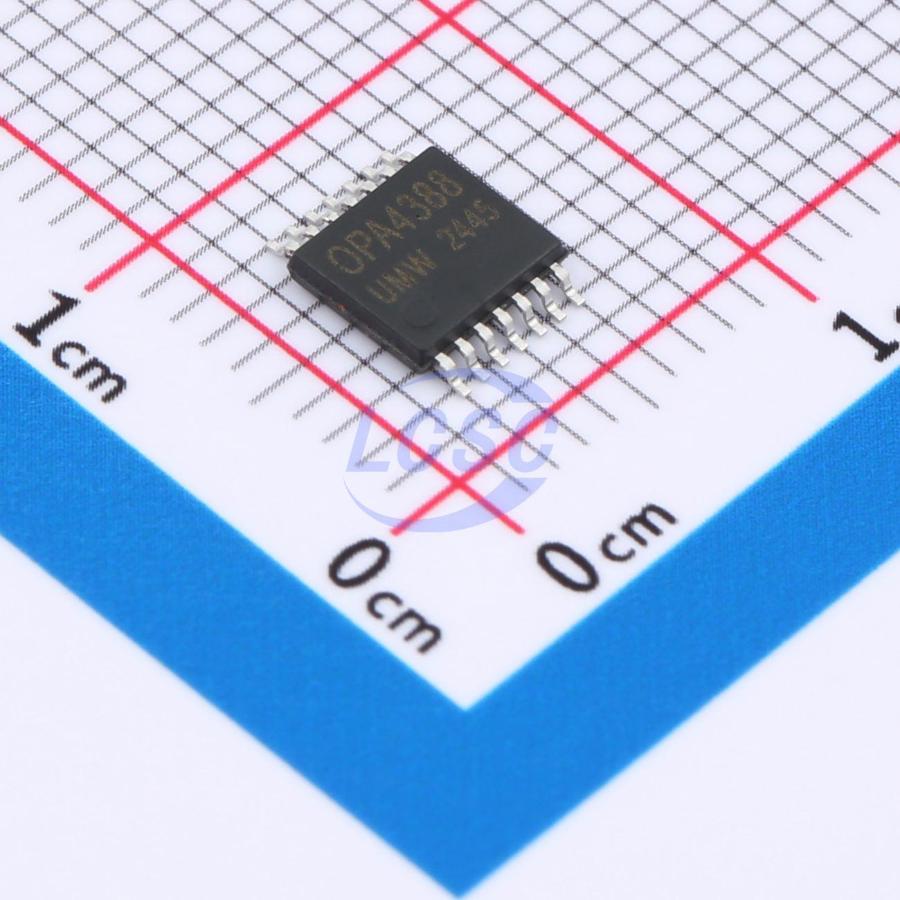

OPA4388IPWR(UMW)
60mA Four channels 8uV 5V/us 30pA 140dB 10MHz 1.9mA Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-14ROHS CompliantActive
Precision, zero-drift, zero-crossing, true rail-to-rail input/output operational amplifier
- Manufacturer
- UMW
- Manufacturer part #
- OPA4388IPWR(UMW)
- Store part #
- C22368271
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,305 in stock
#C22368271
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹154.26 | ₹154.26 |
| 10+ | ₹126.89 | ₹1,268.90 |
| 30+ | ₹111.67 | ₹3,350.10 |
| 100+ | ₹94.73 | ₹9,473.00 |
| 500+ | ₹87.13 | ₹43,565.00 |
| 1,000+ | ₹83.65 | ₹83,650.00 |
1 × ₹154.26
₹154.26
excl. GST
₹182.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
OPA4388IPWR(UMW)
₹154.26 for 1 + GST
Specifications
- Output Current
- 60mA
- Number of Channels
- Four channels
- Vos - Input Offset Voltage
- 8uV
- Slew Rate
- 5V/us
- Input Offset Current(Ios)
- 1nA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 30pA
- Common Mode Rejection Ratio(CMRR)
- 140dB
- Input Offset Voltage Drift(Vos TC)
- 50nV/℃
- Gain Bandwidth Product
- 10MHz
- Quiescent Current
- 1.9mA
- Features
- Zero drift / auto-zero;EMI filtering/RF suppression
- Input Voltage Noise Density
- 7nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.25V;1.25V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.154 g
Overview
The OPA4388 series precision op amps are ultra-low noise, fast settling, zero-drift, crossover-distortion-free devices with rail-to-rail input and output operation. These characteristics, combined with excellent AC performance, an offset voltage of only 0.25μV, adjustable voltage, and 0.005μV/°C temperature drift, make the OPA4388 an ideal choice for driving high-precision ADCs or buffering high-resolution DACs. This design delivers superior performance when driving ADCs without sacrificing linearity.
Applications
- Commercial network and server power supplies
- Laptop power adapter designs
- Electronic scales
- Laboratory and field instruments
- Battery testing
Key features
- Ultra-low offset voltage: ±0.25μV
- Zero drift: ±0.005μV/°C
- No crossover distortion: 140dB CMRR true rail-to-rail input/output
- Low noise: 7.0 nV/√Hz (at 1kHz)
- No 1/f noise: 140 nVₚ₋ₚ (0.1Hz to 10Hz)
- Fast settling: 2μs (1V, 0.01%)
- Gain bandwidth product: 10 MHz
- Single supply: 2.5V to 5.5V
- Dual supply: ±1.25V to ±2.75V
- True rail-to-rail input and output
- EMI RFI filtered inputs
