VBsemi ElecDatasheet (PDF)

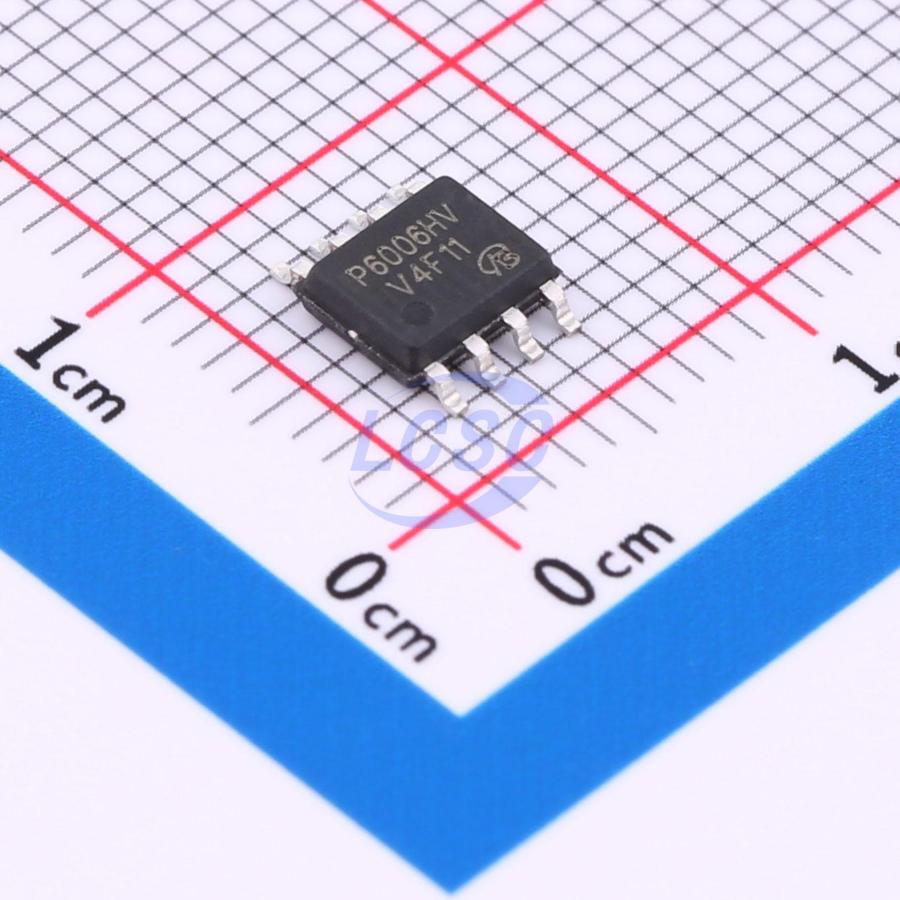

P6006HV-VB
N-Channel 60V 7A 4W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 60V 7A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- P6006HV-VB
- Store part #
- C22389938
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C22389938
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹92.15 | ₹92.15 |
| 10+ | ₹76.93 | ₹769.30 |
| 30+ | ₹69.33 | ₹2,079.90 |
| 100+ | ₹61.93 | ₹6,193.00 |
| 500+ | ₹43.25 | ₹21,625.00 |
| 1,000+ | ₹40.85 | ₹40,850.00 |
1 × ₹92.15
₹92.15
excl. GST
₹108.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
P6006HV-VB
₹92.15 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 7A
- Output Capacitance(Coss)
- 110pF
- Ciss-Input Capacitance
- 600pF
- Pd - Power Dissipation
- 4W
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 28mΩ@10V;30mΩ@4.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 11.7nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.235 g
Overview
Applications
- Server and telecom power supplies
- Switch Mode Power Supplies (SMPS)
- Power Factor Correction (PFC)
- Lighting
- High Intensity Discharge (HID)
- Fluorescent ballast lighting
- Industrial applications
Key features
- Trench power MOSFET
- 100% gate resistance (Rg) and unclamped inductive switching (UIS) tested
- RoHS compliant
- Halogen-free
- N-channel MOSFET
