VISHAYDatasheet (PDF)

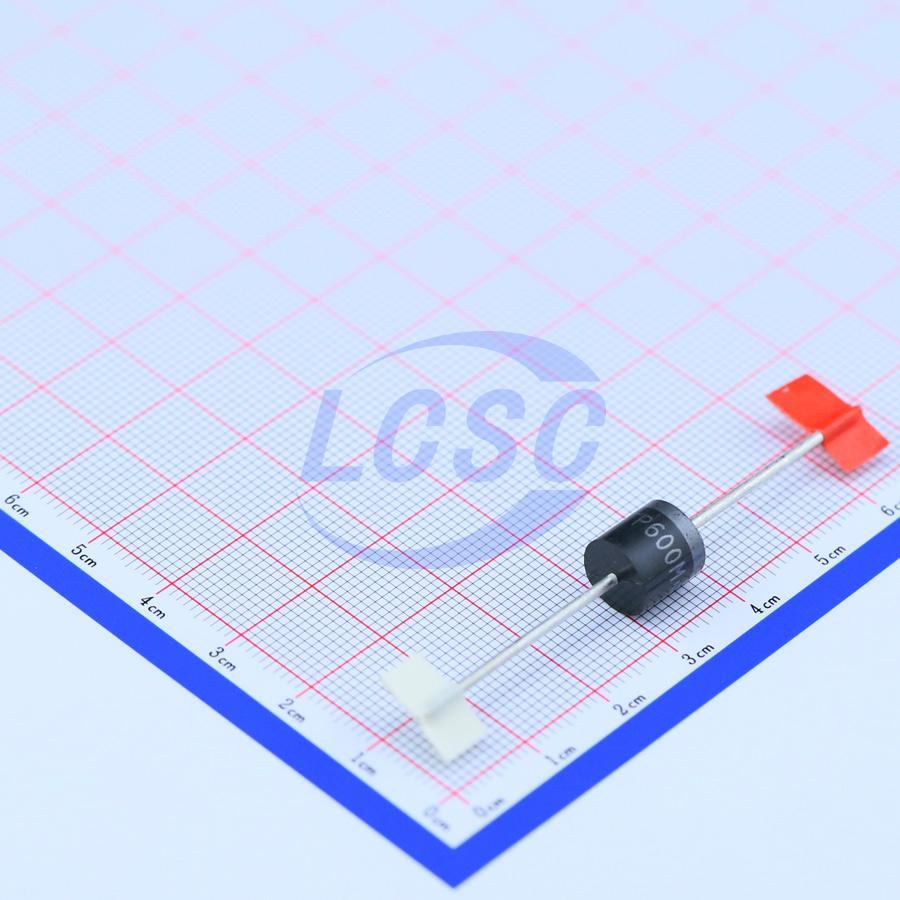

P600M-E3/54
Diode 1kV 6A P600
P600ROHS3 CompliantActive
DIODE STANDARD 1kV 6A P600
- Manufacturer
- VISHAY
- Manufacturer part #
- P600M-E3/54
- Store part #
- C27556
- Package / case
- P600
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
300 in stock
#C27556
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹151.89 | ₹151.89 |
| 10+ | ₹125.38 | ₹1,253.80 |
| 30+ | ₹112.14 | ₹3,364.20 |
| 100+ | ₹99.09 | ₹9,909.00 |
| 500+ | ₹91.27 | ₹45,635.00 |
| 800+ | ₹87.15 | ₹69,720.00 |
1 × ₹151.89
₹151.89
excl. GST
₹179.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
P600M-E3/54
₹151.89 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -50℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 1kV
- Voltage - Forward(Vf@If)
- 1.3V@100A
- Reverse Leakage Current (Ir)
- 5uA@1kV
- Non-Repetitive Peak Forward Surge Current
- 400A
- Current - Rectified
- 6A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.45 g
Overview
Applications
- For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes application.
Key features
- Low forward voltage drop
- Low leakage current
- High forward current capability
- High forward surge capability
- RoHS COMPLIANT
- Solder dip 275 ℃ max. 10 s, per JESD 22-B106
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 10A10#C55544512R+O · R-6 | R+O | R-6 | 465 | ₹28.07 · 465 in stock | View |
 | P600M#C424501SUNMATE Elec · R-6 | SUNMATE Elec | R-6 | 895 | ₹20.80 · 895 in stock | View |
 | 6A10#C156257ST(Semtech) · R-6 | ST(Semtech) | R-6 | 4,515 | ₹31.26 · 4,515 in stock | View |
 | 10A10 MW#C42429544YFW · R-6 | YFW | R-6 | 470 | ₹22.74 · 470 in stock | View |
 | 10A10#C7450450LangJie · R-6 | LangJie | R-6 | 100 | ₹8.00 · 100 in stock | View |
