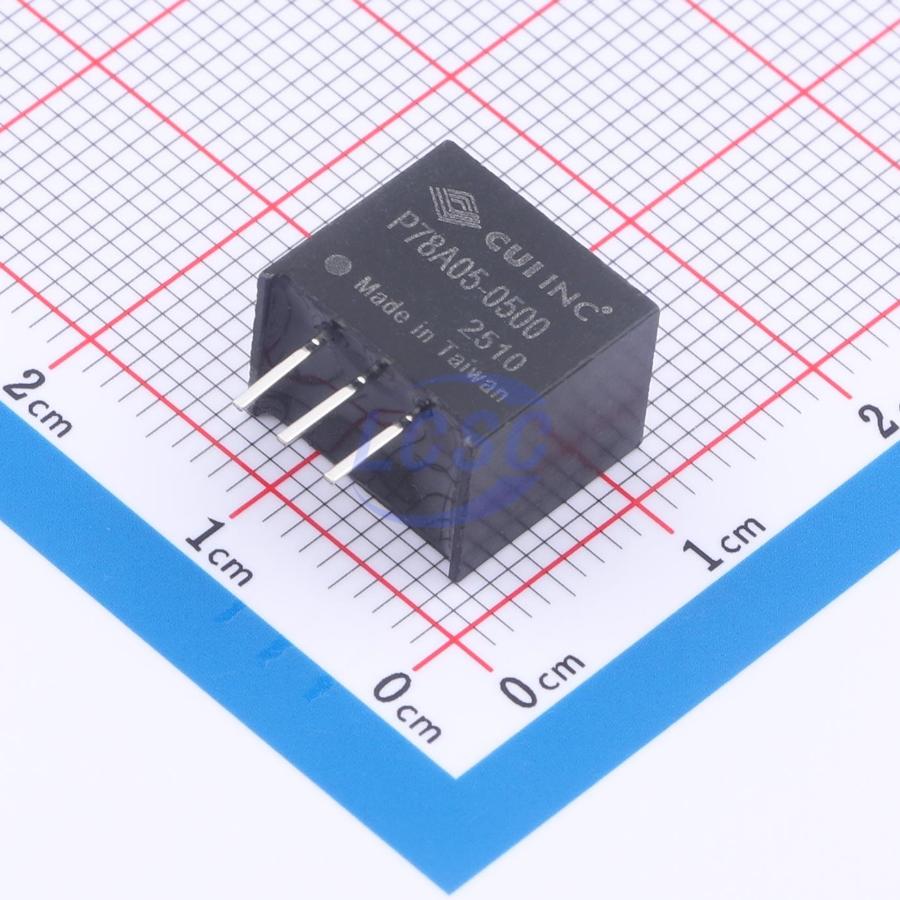

CUI

P78A05-0500

Step-down type 5V 7V~28V SIP-3 DC DC Converters RoHS

SIP-3ROHS CompliantActive

Manufacturer: CUI
Manufacturer part #: P78A05-0500
Store part #: C5823893
Package / case: SIP-3
Category: DC DC Converters
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

13 in stock

#C5823893

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹1,814.83	₹1,814.83
10+	₹1,733.69	₹17,336.90
42+	₹1,593.29	₹66,918.18
84+	₹1,470.94	₹1,23,558.96

Quantity (min 1)

1 × ₹1,814.83

₹1,814.83

excl. GST

₹2,141.50 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 42 per tube

P78A05-0500

₹1,814.83 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Function: Step-down type
Output Voltage: 5V
Ripple Noise: 50mVp-p
Operating Temperature: -40℃~+85℃
Quiescent Supply Current: 1.5mA
Voltage - Supply: 7V~28V
Capacitive Load(Max): 220uF
Number of Outputs: 1
Iout: 500mA
Output Voltage Accuracy: ±3%
Height: 10.4mm
Frequency - Switching: 570kHz
Features: Short Circuit Protection;Automatic fault recovery
Conversion Efficiency: 92%
Length: 11.6mm
Width: 8.5mm

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 42 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 3.585 g

Overview

Key features

up to 500 mA current output
pin compatible with LM78xx linear regulators
non-isolated switching regulator
high start-up current capability
wide input voltage range
efficiency up to 95%
low ripple and noise
short circuit protection
ultra-compact SIP3 package
-40°C to +85°C temperature range

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	K7805-500R3#C19188491EVISUN · SIP-3	EVISUN	SIP-3	6,451	₹168.59 · 6,451 in stock	View
	K7805-500#C19188490EVISUN · SIP-3	EVISUN	SIP-3	231	₹164.13 · 231 in stock	View
