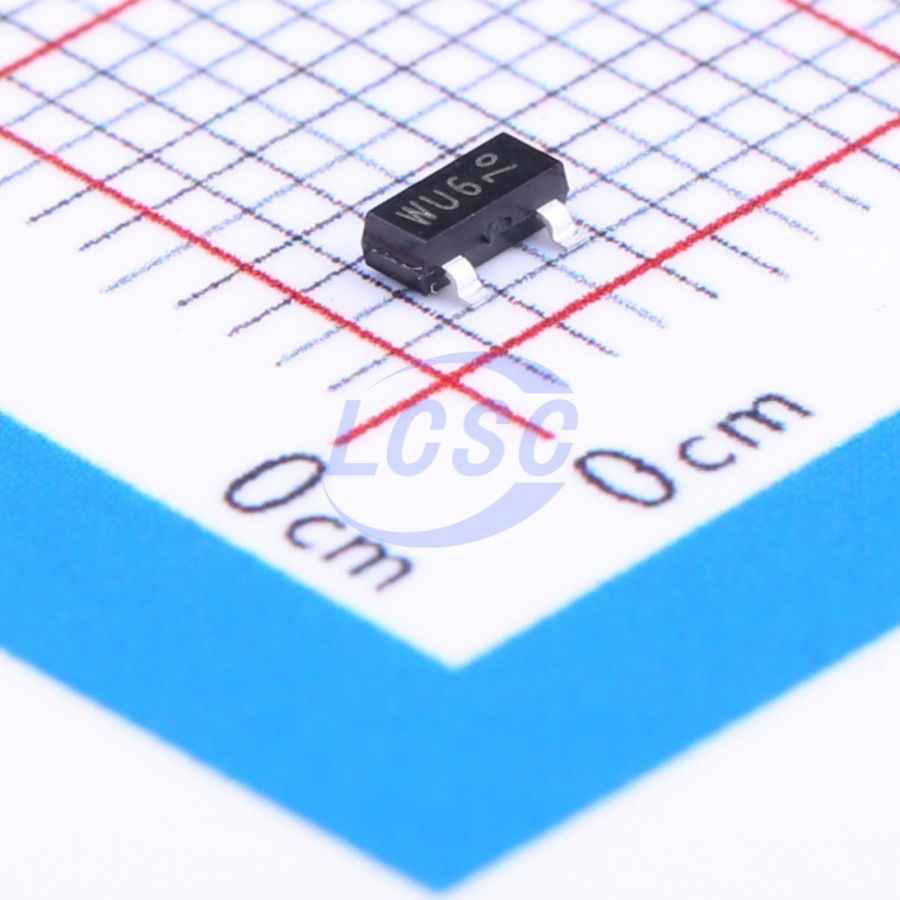

PBSS5160T,215
Bipolar (BJT) Transistor PNP 60V 1A 220MHz 400mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
TRANS PNP 60V 1A SOT-23
- Manufacturer
- Nexperia
- Manufacturer part #
- PBSS5160T,215
- Store part #
- C139609
- Package / case
- SOT-23
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,135 in stock
#C139609
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.21 | ₹76.05 |
| 50+ | ₹11.92 | ₹596.00 |
| 150+ | ₹10.28 | ₹1,542.00 |
| 500+ | ₹9.04 | ₹4,520.00 |
| 3,000+ | ₹8.06 | ₹24,180.00 |
| 6,000+ | ₹7.55 | ₹45,300.00 |
5 × ₹15.21
₹76.05
excl. GST
₹89.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PBSS5160T,215
₹76.05 for 5 + GST
Specifications
- Operating Temperature
- -65℃~+150℃
- Current - Collector Cutoff
- 100nA
- Transition frequency(fT)
- 220MHz
- Collector - Emitter Voltage VCEO
- 60V
- Emitter-Base Voltage VEBO
- 5V
- DC Current Gain
- 100
- Pd - Power Dissipation
- 400mW
- Current - Collector(Ic)
- 1A
- Configuration
- Standalone
- Number
- 1 PNP
- type
- PNP
- Vce Saturation(VCE(sat))
- 330mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
PNP low VCEsat transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package. NPN complement: PBSS4160T
Applications
- Major application segments: Automotive Telecom infrastructure Industrial
- Power management: JDC-to-DC conversion Supply line switching
- Peripheral driver: Driver in low supply voltage applications (e.g. lamps and LEDs) Inductive load drivers (e.g. relays, buzzers and motors)
Key features
- Low collector-emitter saturation voltage VCEsat
- High collector current capability IC and ICM
- High efficiency due to less heat generation
- Reduces Printed-Circuit Board (PCB) area required
- Cost-effective replacement for medium power transistors BCP52 and BCX52
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PBSS5160TVL#C551957Nexperia · SOT-23 | Nexperia | SOT-23 | 5 | ₹73.27 · 5 in stock | View |
 | PBSS5160T-HXY#C47506940HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 820 | ₹8.96 · 820 in stock | View |
 | FMMT591-TP#C779215MCC · SOT-23 | MCC | SOT-23 | 2,120 | ₹11.13 · 2,120 in stock | View |
 | FMMT593#C48580924GOODWORK · SOT-23 | GOODWORK | SOT-23 | 1,400 | ₹5.31 · 1,400 in stock | View |
 | FMMT591#C171009Shikues · SOT-23 | Shikues | SOT-23 | 10,860 | ₹4.63 · 10,860 in stock | View |
