NXP

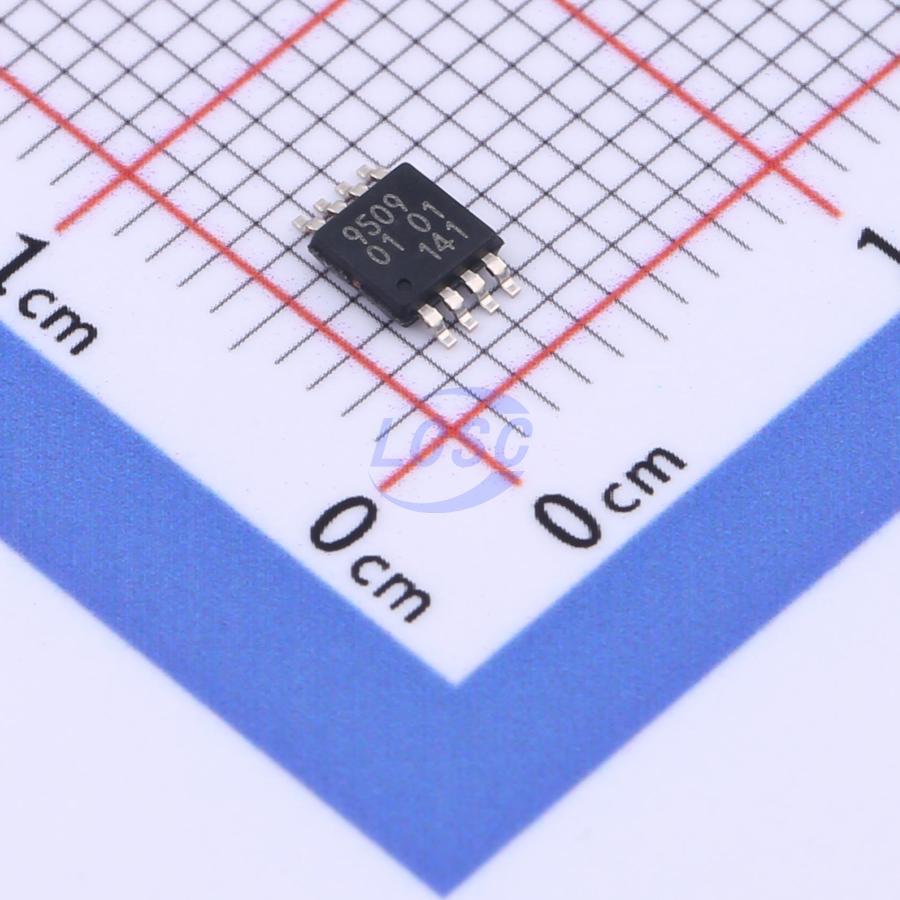

PCA9509DP,118

3V~5.5V 1V~4.5V TSSOP-8 Signal Buffers, Repeaters, Splitters RoHS

TSSOP-8ROHS3 CompliantActive

Level translating I2C-bus/SMBus repeater

Manufacturer: NXP
Manufacturer part #: PCA9509DP,118
Store part #: C2652394
Package / case: TSSOP-8
Category: Signal Buffers, Repeaters, Splitters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

35,865 in stock

#C2652394

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹142.53	₹142.53
10+	₹114.89	₹1,148.90
30+	₹101.18	₹3,035.40
100+	₹87.69	₹8,769.00
500+	₹73.12	₹36,560.00
1,000+	₹68.77	₹68,770.00

Quantity (min 1)

1 × ₹142.53

₹142.53

excl. GST

₹168.19 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

PCA9509DP,118

₹142.53 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply(VCCB): 3V~5.5V
Channel Type: Bidirectional
Interface: I2C;SMBus
Output Type: Open-drain
Features: Output enable high-impedance;Integrated pull-up resistor
Voltage - Supply(VCCA): 1V~4.5V
Operating Temperature: -40℃~+85℃

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.066 g
