DIODESDatasheet (PDF)

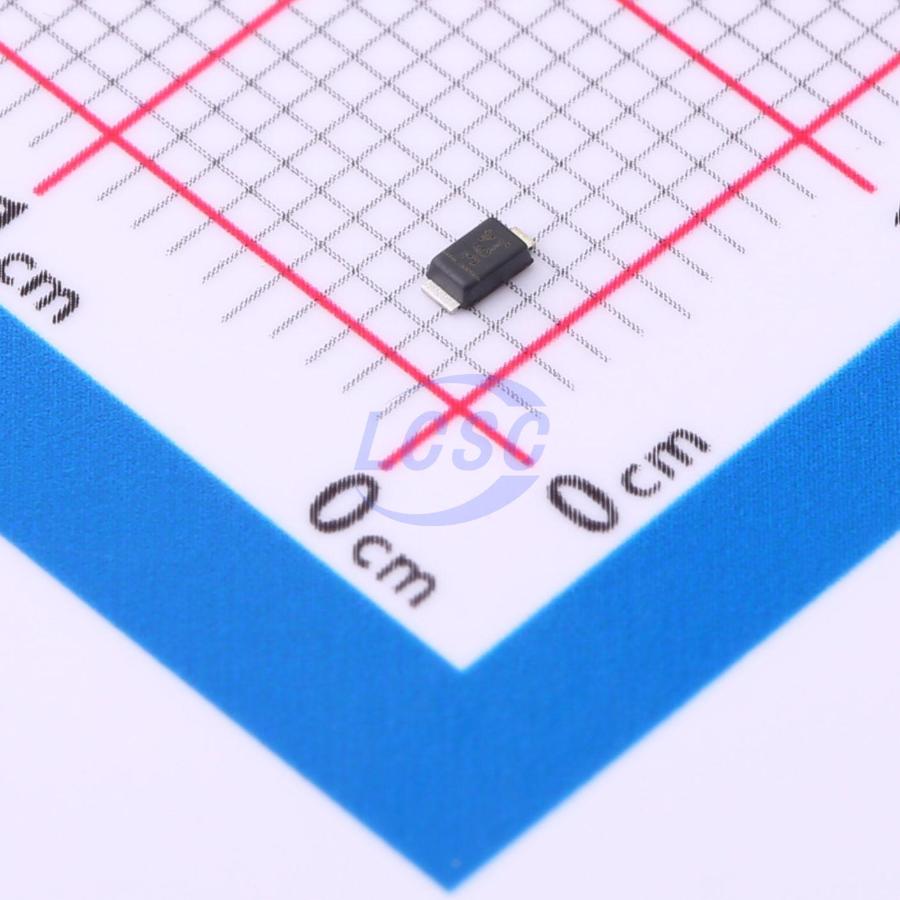

PD3S0230-7
Diode 30V 200mA Surface Mount Power-DI-323
PowerDI323ROHS3 CompliantActive
DIODE SCHOTTKY 30V Power-DI-323
- Manufacturer
- DIODES
- Manufacturer part #
- PD3S0230-7
- Store part #
- C5244992
- Package / case
- PowerDI323
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
130 in stock
#C5244992
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.15 | ₹245.75 |
| 50+ | ₹39.12 | ₹1,956.00 |
| 150+ | ₹34.81 | ₹5,221.50 |
| 500+ | ₹29.45 | ₹14,725.00 |
| 3,000+ | ₹27.06 | ₹81,180.00 |
| 6,000+ | ₹25.63 | ₹1,53,780.00 |
5 × ₹49.15
₹245.75
excl. GST
₹289.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PD3S0230-7
₹245.75 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 800mV@100mA
- Reverse Leakage Current (Ir)
- 2uA@25V
- Current - Rectified
- 200mA
- Non-Repetitive Peak Forward Surge Current
- 600mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
This Schottky barrier rectifier has been designed to meet the Low forward voltage applications. It is ideally suited to use as : Polarity Protection Diode Re- circulating Diode Switching Diode
Applications
- Polarity Protection Diode
- Re- circulating Diode
- Switching Diode
Key features
- Low Forward Voltage Drop
- Fast Switching
- Ultra- Small Surface Mount Package
- PN Junction Guard Ring for Transient and ESD Protection
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free
- "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS16HE#C556433onsemi · SOD-323HE | onsemi | SOD-323HE | 5,760 | ₹40.42 · 5,760 in stock | View |
 | LMBR1100ET1G#C2912027LRC · SOD-323HE | LRC | SOD-323HE | 6,270 | ₹10.82 · 6,270 in stock | View |
 | S-LMBR1100ET1G#C2932863LRC · SOD-323HE | LRC | SOD-323HE | 235 | ₹11.74 · 235 in stock | View |
 | RB168VYM-40FHTR#C3760103ROHM · TUMD2M | ROHM | TUMD2M | 9 | ₹28.26 · 9 in stock | View |
 | PMEG100T10ELXDX#C5846092Nexperia · SOD-323HP | Nexperia | SOD-323HP | 15 | ₹28.92 · 15 in stock | View |
