DIODESDatasheet (PDF)

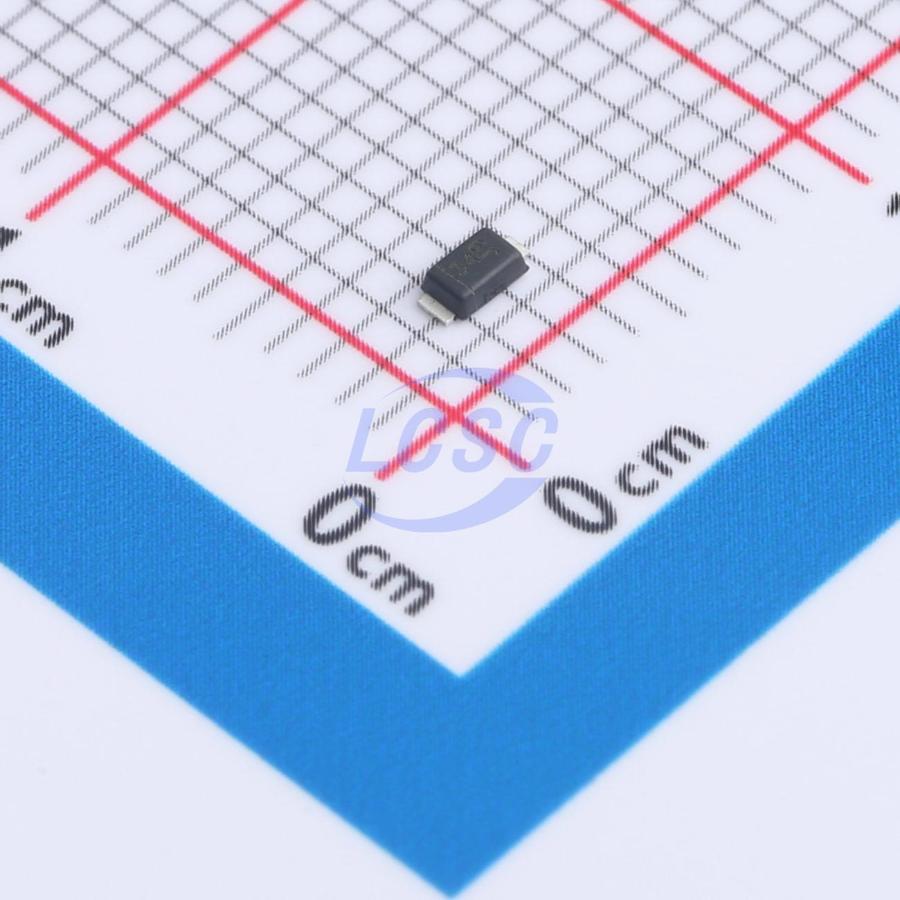

PD3S120LQ-7
Diode 20V 1A Surface Mount Power-DI-323
PowerDI323ROHS3 CompliantActive
DIODE SCHOTTKY 20V Power-DI-323
- Manufacturer
- DIODES
- Manufacturer part #
- PD3S120LQ-7
- Store part #
- C5244354
- Package / case
- PowerDI323
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,151 in stock
#C5244354
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹48.24 | ₹48.24 |
| 10+ | ₹42.64 | ₹426.40 |
| 30+ | ₹40.27 | ₹1,208.10 |
| 100+ | ₹37.04 | ₹3,704.00 |
| 500+ | ₹35.75 | ₹17,875.00 |
| 1,000+ | ₹34.89 | ₹34,890.00 |
1 × ₹48.24
₹48.24
excl. GST
₹56.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PD3S120LQ-7
₹48.24 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 20V
- Operating Junction Temperature Range
- -65℃~+125℃
- Voltage - Forward(Vf@If)
- 420mV@1A
- Reverse Leakage Current (Ir)
- 160uA@20V
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 33A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
This Schottky Barrier Rectifier has been designed to meet the stringent requirements of Automotive Applications. It is ideally suited to use as: Polarity Protection Diode Re- circulating Diode Switching Diode
Applications
- Polarity Protection Diode
- Re- circulating Diode
- Switching Diode
Key features
- Guard Ring Die Construction for Transient Protection
- High Surge Capability
- Ultra- Small Surface Mount Package
- Lead- Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC- Q101 Standards for High Reliability
- PPAP Capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PD3S120L-7#C445535DIODES · PowerDI323 | DIODES | PowerDI323 | 30 | ₹33.13 · 30 in stock | View |
 | PD3S130L-7#C212293DIODES · PowerDI323 | DIODES | PowerDI323 | 95 | ₹33.22 · 95 in stock | View |
 | SDB13LHT#C3015279EIC · SOD-323HF | EIC | SOD-323HF | 70 | ₹7.89 · 70 in stock | View |
 | PD3S230L-7#C508240DIODES · PowerDI323 | DIODES | PowerDI323 | 3,069 | ₹67.66 · 3,069 in stock | View |
 | PD3S130HQ-7#C5125503DIODES · Power-DI-323-2 | DIODES | Power-DI-323-2 | 100 | ₹20.92 · 100 in stock | View |
