DIODESDatasheet (PDF)

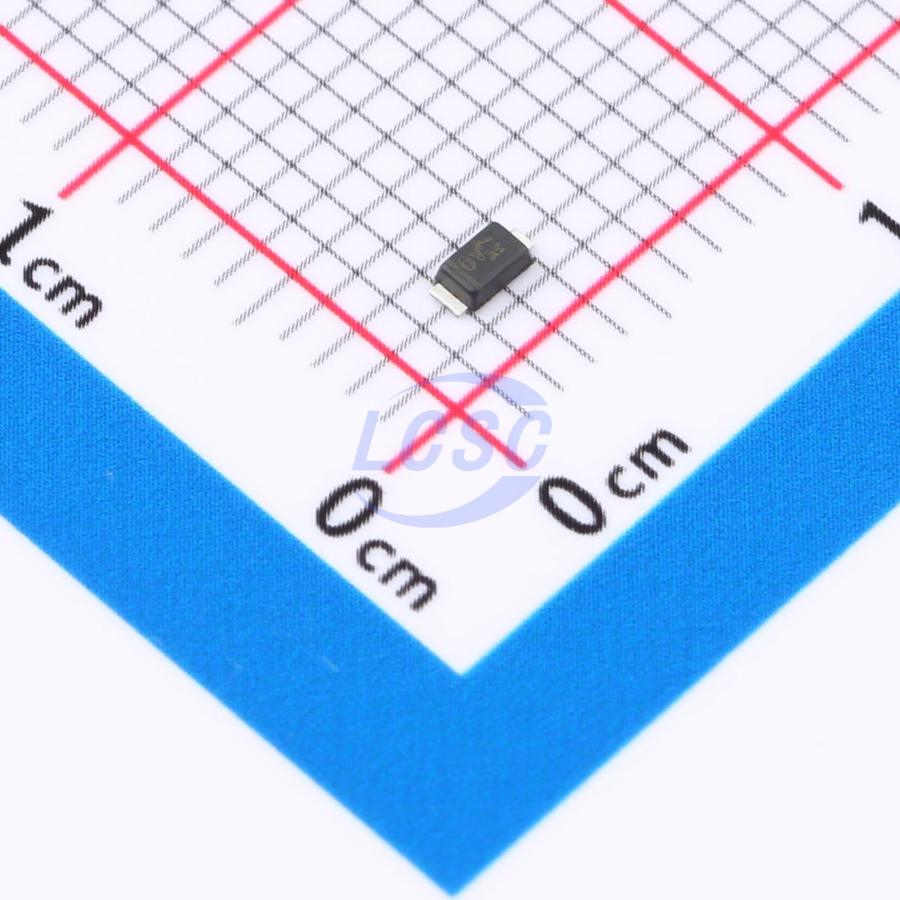

PD3Z284C15-7
Zener Diode Independent 15V 500mW PowerDI323
PowerDI323ROHS3 CompliantActive
DIODE ZENER 15V 500mW PowerDI323
- Manufacturer
- DIODES
- Manufacturer part #
- PD3Z284C15-7
- Store part #
- C460244
- Package / case
- PowerDI323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,125 in stock
#C460244
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.70 | ₹108.50 |
| 50+ | ₹19.54 | ₹977.00 |
| 150+ | ₹18.63 | ₹2,794.50 |
| 500+ | ₹17.48 | ₹8,740.00 |
| 3,000+ | ₹16.96 | ₹50,880.00 |
| 6,000+ | ₹16.66 | ₹99,960.00 |
5 × ₹21.70
₹108.50
excl. GST
₹128.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PD3Z284C15-7
₹108.50 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA@10.5V
- Impedance(Zzt)
- 15Ω
- Zener Voltage(Range)
- 13.8V~15.6V
- Zener Voltage(Nom)
- 15V
- Impedance(Zzk)
- 200Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
Key features
- Planar Die Construction
- Ultra-Small Surface Mount Package
- Lead Free By Design, RoHS Compliant
- "Green" Molding Compound (No Br, Sb)
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TDZVTR15#C3731916ROHM · TUMD2M | ROHM | TUMD2M | 12 | ₹73.29 · 12 in stock | View |
 | YFZVFHTR15B#C7130709ROHM · TUMD2M | ROHM | TUMD2M | 50 | ₹33.52 · 50 in stock | View |
| PZS5215BCH_R1_00001#C6957972PANJIT · SOD-323HE | PANJIT | SOD-323HE | On request | ₹12.30 · 0 in stock | View | |
| PZS5115BCH-AU_R1_000A1#C6365941PANJIT · SOD-323HE | PANJIT | SOD-323HE | On request | ₹11.59 · 0 in stock | View | |
| PZS5115BCH_R1_00001#C6365945PANJIT · SOD-323HE | PANJIT | SOD-323HE | On request | ₹10.15 · 0 in stock | View | |
