DIODESDatasheet (PDF)

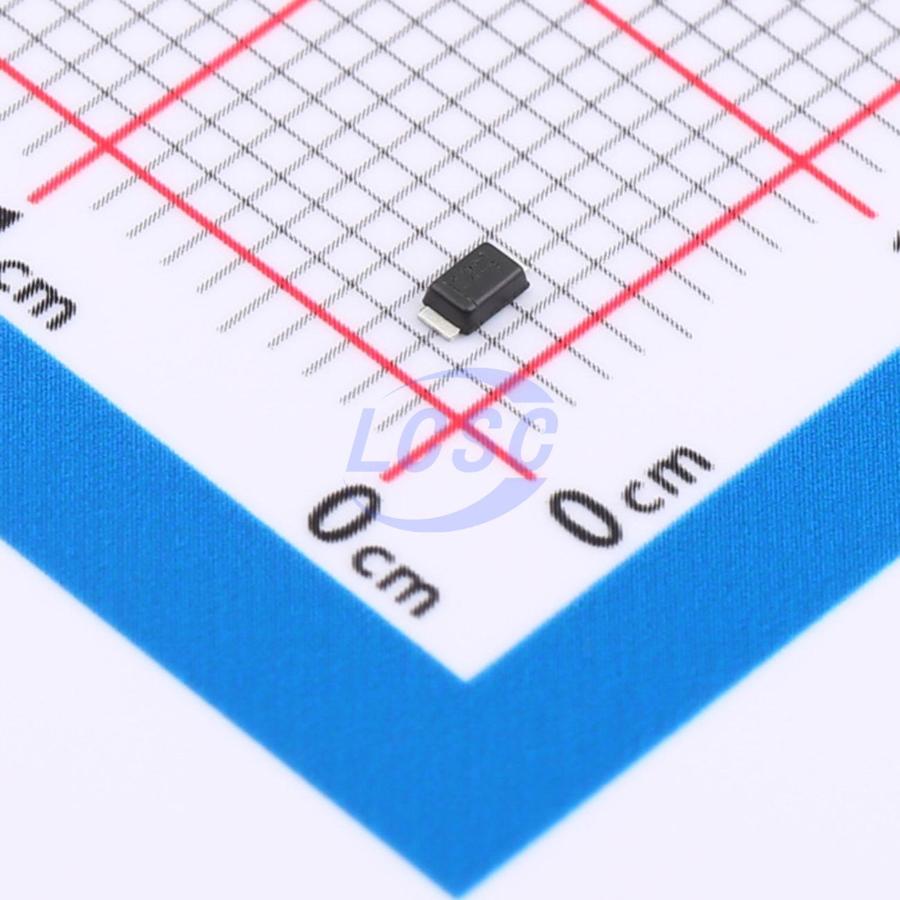

PD3Z284C24-7
Zener Diode Independent 24V 500mW Surface Mount Power-DI-323
PowerDI323ROHS3 CompliantDiscontinued
DIODE ZENER 24V 500mW Power-DI-323
- Manufacturer
- DIODES
- Manufacturer part #
- PD3Z284C24-7
- Store part #
- C5244972
- Package / case
- PowerDI323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C5244972
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.02 | ₹125.10 |
| 50+ | ₹24.69 | ₹1,234.50 |
| 150+ | ₹24.46 | ₹3,669.00 |
| 500+ | ₹24.24 | ₹12,120.00 |
5 × ₹25.02
₹125.10
excl. GST
₹147.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PD3Z284C24-7
₹125.10 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA@16.8V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 22.8V~25.6V
- Zener Voltage(Nom)
- 24V
- Impedance(Zzk)
- 250Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.056 g
Overview
Key features
- Planar Die Construction
- Ultra-Small Surface Mount Package (PowerDI)
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| PZS5224BCH_R1_00001#C5848509PANJIT · SOD-323HE | PANJIT | SOD-323HE | On request | ₹10.77 · 0 in stock | View | |
| PZS5124BCH_R1_00001#C5830539PANJIT · SOD-323HE | PANJIT | SOD-323HE | On request | ₹10.15 · 0 in stock | View | |
| PZS5124BCH-AU_R1_000A1#C5848480PANJIT · SOD-323HE | PANJIT | SOD-323HE | On request | ₹11.59 · 0 in stock | View | |
| YDZVFHTR24#C6043121ROHM · TUMD2M | ROHM | TUMD2M | On request | ₹15.03 · 0 in stock | View | |
| TDZVTR24#C7399743ROHM · TUMD2M | ROHM | TUMD2M | On request | ₹14.30 · 0 in stock | View | |
