DIODESDatasheet (PDF)

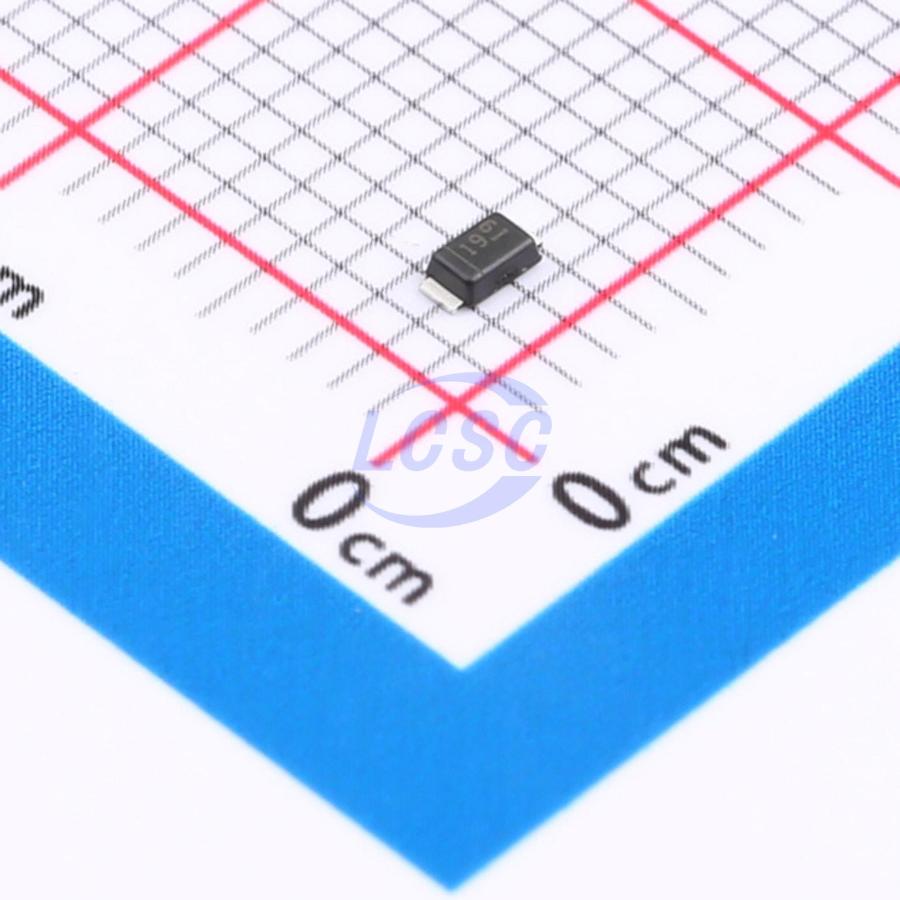

PD3Z284C39-7
Zener Diode 39V 500mW
PowerDI323ROHS3 CompliantActive
DIODE ZENER 39V 500mW
- Manufacturer
- DIODES
- Manufacturer part #
- PD3Z284C39-7
- Store part #
- C6949425
- Package / case
- PowerDI323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C6949425
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.74 | ₹103.70 |
| 50+ | ₹20.47 | ₹1,023.50 |
| 150+ | ₹20.28 | ₹3,042.00 |
| 500+ | ₹20.10 | ₹10,050.00 |
5 × ₹20.74
₹103.70
excl. GST
₹122.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PD3Z284C39-7
₹103.70 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA@27.3V
- Impedance(Zzt)
- 75Ω
- Zener Voltage(Range)
- 37V~41V
- Zener Voltage(Nom)
- 39V
- Impedance(Zzk)
- 300Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
Key features
- Planar Die Construction
- Ultra-Small Surface Mount Package
- Lead Free By Design, RoHS Compliant
- "Green" Molding Compound (No Br, Sb)
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PD3Z284C36-7#C5244977DIODES · PowerDI323 | DIODES | PowerDI323 | 50 | ₹20.47 · 50 in stock | View |
| PZS5239BCH_R1_00001#C5713808PANJIT · SOD-323HE | PANJIT | SOD-323HE | On request | ₹10.77 · 0 in stock | View | |
| PZS5139BCH_R1_00001#C6256977PANJIT · SOD-323HE | PANJIT | SOD-323HE | On request | ₹10.15 · 0 in stock | View | |
| PZS5139BCH-AU_R1_000A1#C7030397PANJIT · SOD-323HE | PANJIT | SOD-323HE | On request | ₹11.59 · 0 in stock | View | |
| PZS5236BCH_R1_00001#C6629598PANJIT · SOD-323HE | PANJIT | SOD-323HE | On request | ₹10.77 · 0 in stock | View | |
