DIODESDatasheet (PDF)

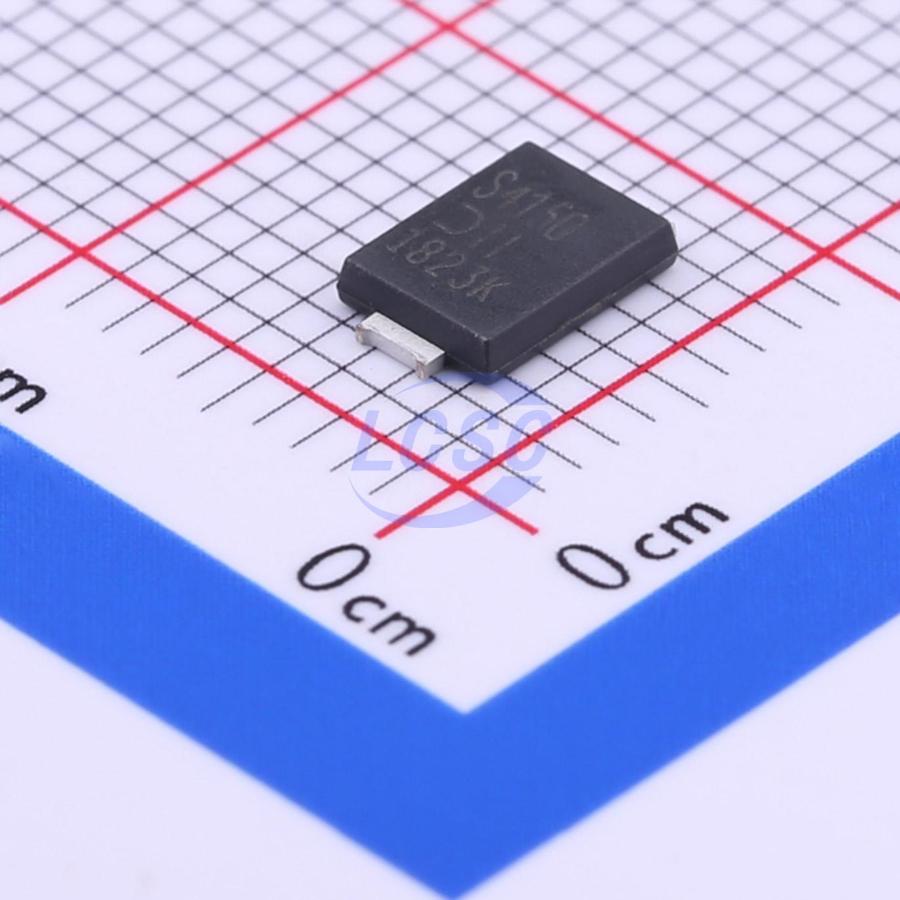

PDS4150-13
1 Independent 150V 810mV@8A 4A Power-DI-5 Single Diodes RoHS
Power-DI-5ROHS3 CompliantActive
Voltage： 150V Current： 4A
- Manufacturer
- DIODES
- Manufacturer part #
- PDS4150-13
- Store part #
- C397958
- Package / case
- Power-DI-5
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
126 in stock
#C397958
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹152.00 | ₹152.00 |
| 10+ | ₹132.70 | ₹1,327.00 |
| 30+ | ₹122.28 | ₹3,668.40 |
| 100+ | ₹110.36 | ₹11,036.00 |
| 500+ | ₹88.03 | ₹44,015.00 |
| 1,000+ | ₹85.65 | ₹85,650.00 |
1 × ₹152.00
₹152.00
excl. GST
₹179.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PDS4150-13
₹152.00 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 150V
- Voltage - Forward(Vf@If)
- 810mV@8A
- Reverse Leakage Current (Ir)
- 10uA@150V
- Non-Repetitive Peak Forward Surge Current
- 180A
- Current - Rectified
- 4A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.209 g
Overview
This Schottky Barrier Rectifier has been designed to meet the stringent requirements of Automotive Applications. It is ideally suited to use as: Polarity Protection Diode Re- circulating Diode Switching Diode
Applications
- Polarity Protection Diode
- Re- circulating Diode
- Switching Diode
Key features
- Guard Ring Die Construction for Transient Protection
- Low Forward Voltage Drop
- Very Low Leakage Current
- High Maximum Junction Temperature Capability
- Highly Stable Oxide Passivated Junction
- High Forward Surge Current Capability
- Lead- Free Finish, RoHS Compilant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC- Q101 Standards for High Reliability
- PPAP Capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SB15150#C55269533R+O · TO-277 | R+O | TO-277 | 60 | ₹18.93 · 60 in stock | View |
 | SB15200#C55269534R+O · TO-277 | R+O | TO-277 | 45 | ₹19.43 · 45 in stock | View |
 | SB10150-A#C20199366DOWO · TO-277B | DOWO | TO-277B | 4,020 | ₹10.21 · 4,020 in stock | View |
 | NST10150L#C50338739BORN · TO-277B | BORN | TO-277B | 85 | ₹34.01 · 85 in stock | View |
 | SP10150L#C7437818XCH · TO-277B | XCH | TO-277B | 275 | ₹36.16 · 275 in stock | View |
