DIODESDatasheet (PDF)

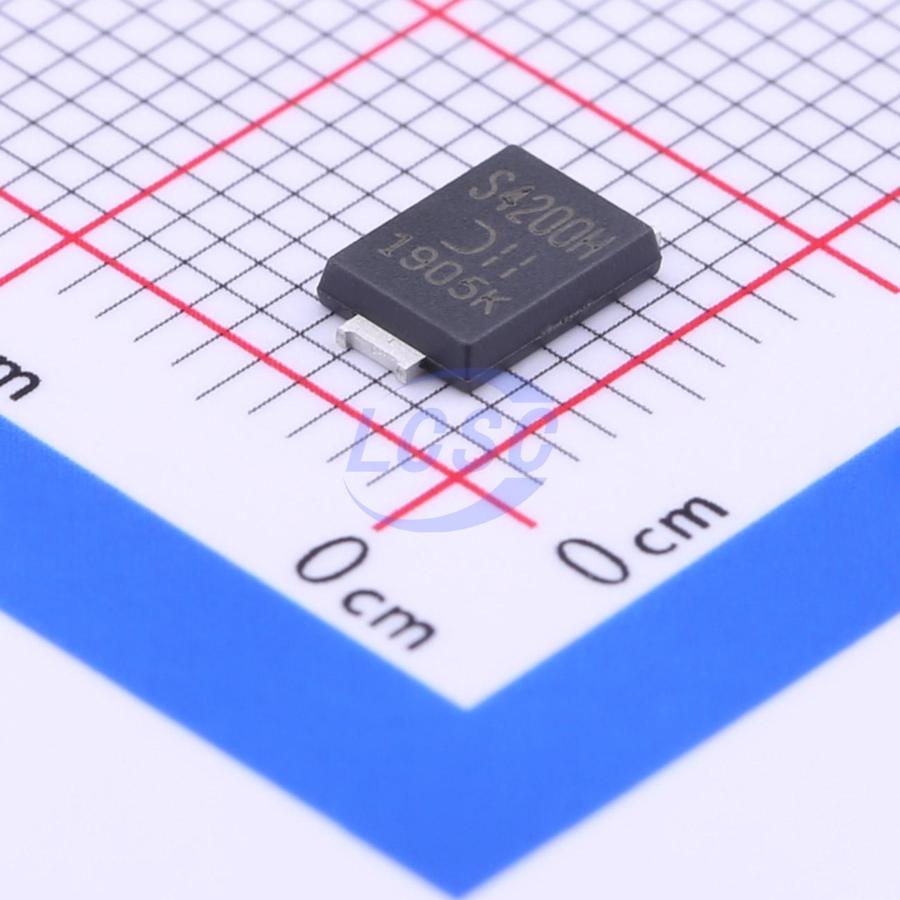

PDS4200HQ-13
1 Independent 200V 890mV@8A 4A Power-DI-5 Single Diodes RoHS
Power-DI-5ROHS3 CompliantActive
Voltage: 200V Current: 4A
- Manufacturer
- DIODES
- Manufacturer part #
- PDS4200HQ-13
- Store part #
- C397959
- Package / case
- Power-DI-5
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,182 in stock
#C397959
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹187.50 | ₹187.50 |
| 10+ | ₹153.39 | ₹1,533.90 |
| 30+ | ₹134.92 | ₹4,047.60 |
| 100+ | ₹113.63 | ₹11,363.00 |
| 500+ | ₹104.29 | ₹52,145.00 |
| 1,000+ | ₹100.16 | ₹1,00,160.00 |
1 × ₹187.50
₹187.50
excl. GST
₹221.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PDS4200HQ-13
₹187.50 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Voltage - Forward(Vf@If)
- 890mV@8A
- Reverse Leakage Current (Ir)
- 1uA@200V
- Non-Repetitive Peak Forward Surge Current
- 100A
- Current - Rectified
- 4A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.211 g
Overview
Applications
- SMPS DC-DC converters
- Freewheeling diodes
- AC-DC
Key features
- Lower Forward Voltage Drop than Ultrafast Rectifiers
- Very Low Leakage Current
- Soft Recovery Characteristics: Softness Factor (tB / tA) ≥ 1
- Highly Stable Oxide Passivated Junction
- High Forward Surge Current Capability
- Lead-Free Finish: RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PDS4200H-13#C154742DIODES · PowerDI-5 | DIODES | PowerDI-5 | 3 | ₹334.82 · 3 in stock | View |
 | SB10200#C20199365DOWO · TO-277B | DOWO | TO-277B | 4,475 | ₹18.57 · 4,475 in stock | View |
 | SB10200#C53207108Slkor · TO-277 | Slkor | TO-277 | 175 | ₹26.87 · 175 in stock | View |
 | SB10200#C53329065R+O · TO-277 | R+O | TO-277 | 10,505 | ₹30.10 · 10,505 in stock | View |
 | SB15200#C53207109Slkor · TO-277 | Slkor | TO-277 | 200 | ₹30.50 · 200 in stock | View |
