DIODESDatasheet (PDF)

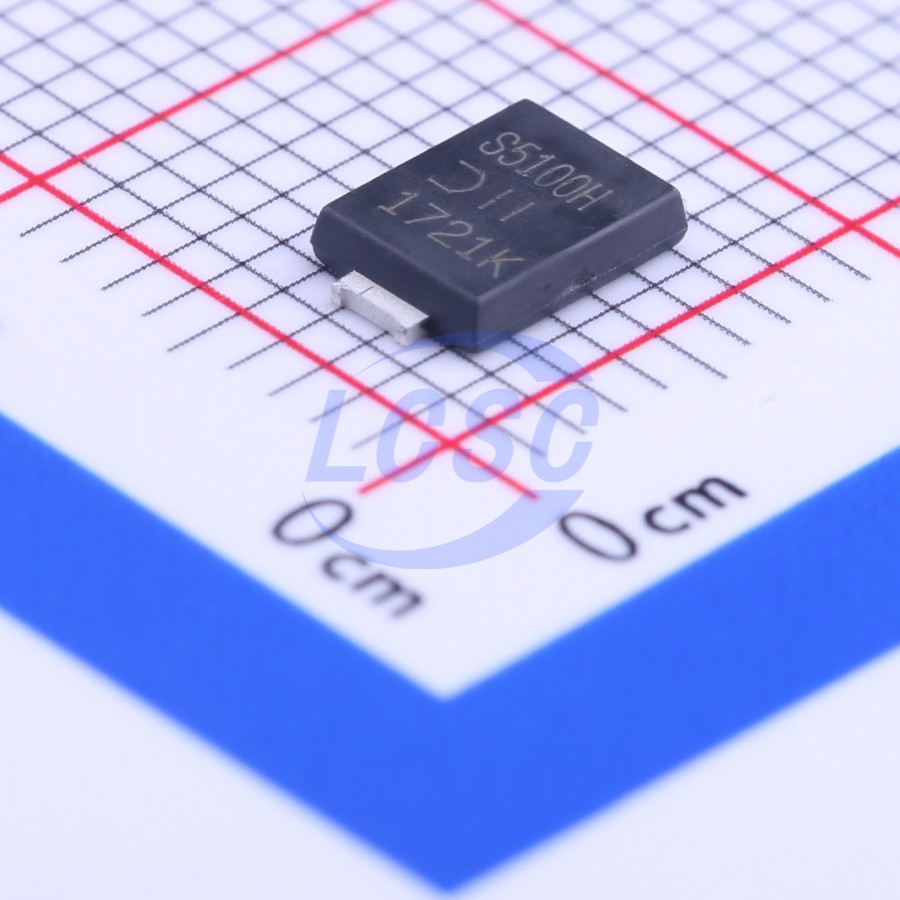

PDS5100H-13
1 Independent 100V 710mV@5A 5A Power-DI-5 Single Diodes RoHS
Power-DI-5ROHS3 CompliantActive
Voltage: 100V Current: 5A
- Manufacturer
- DIODES
- Manufacturer part #
- PDS5100H-13
- Store part #
- C141284
- Package / case
- Power-DI-5
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,337 in stock
#C141284
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.97 | ₹85.97 |
| 10+ | ₹70.34 | ₹703.40 |
| 30+ | ₹62.52 | ₹1,875.60 |
| 100+ | ₹54.72 | ₹5,472.00 |
| 500+ | ₹49.94 | ₹24,970.00 |
| 1,000+ | ₹47.55 | ₹47,550.00 |
1 × ₹85.97
₹85.97
excl. GST
₹101.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PDS5100H-13
₹85.97 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 710mV@5A
- Reverse Leakage Current (Ir)
- 3.5uA@100V
- Non-Repetitive Peak Forward Surge Current
- 250A
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.212 g
Overview
This Schottky Barrier Rectifier has been designed to meet the stringent requirements of Automotive Applications. It is ideally suited to use as: Polarity Protection Diode Re- circulating Diode Switching Diode
Key features
- Guard Ring Die Construction for Transient Protection
- High Maximum Junction Temperature
- Very Low Leakage Current
- Highly Stable Oxide Passivated Junction
- Low Forward Voltage Drop
- High Forward Surge Current Capability
- Lead- Free Finish
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC- Q101 Standards for High Reliability
- PPAP Capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PDS5100HQ-13#C154855DIODES · PowerDI-5 | DIODES | PowerDI-5 | 449 | ₹210.53 · 449 in stock | View |
 | SB10100L#C42394090TECH PUBLIC · TO-277B | TECH PUBLIC | TO-277B | 1,685 | ₹27.64 · 1,685 in stock | View |
 | SB10200L-MS#C47021051MSKSEMI · TO-277 | MSKSEMI | TO-277 | 3,910 | ₹25.26 · 3,910 in stock | View |
 | SP15100L#C5375261XCH · TO-277B | XCH | TO-277B | 345 | ₹39.53 · 345 in stock | View |
 | SB10100L-MS#C47021050MSKSEMI · TO-277 | MSKSEMI | TO-277 | 4,040 | ₹22.74 · 4,040 in stock | View |
