DIODESDatasheet (PDF)

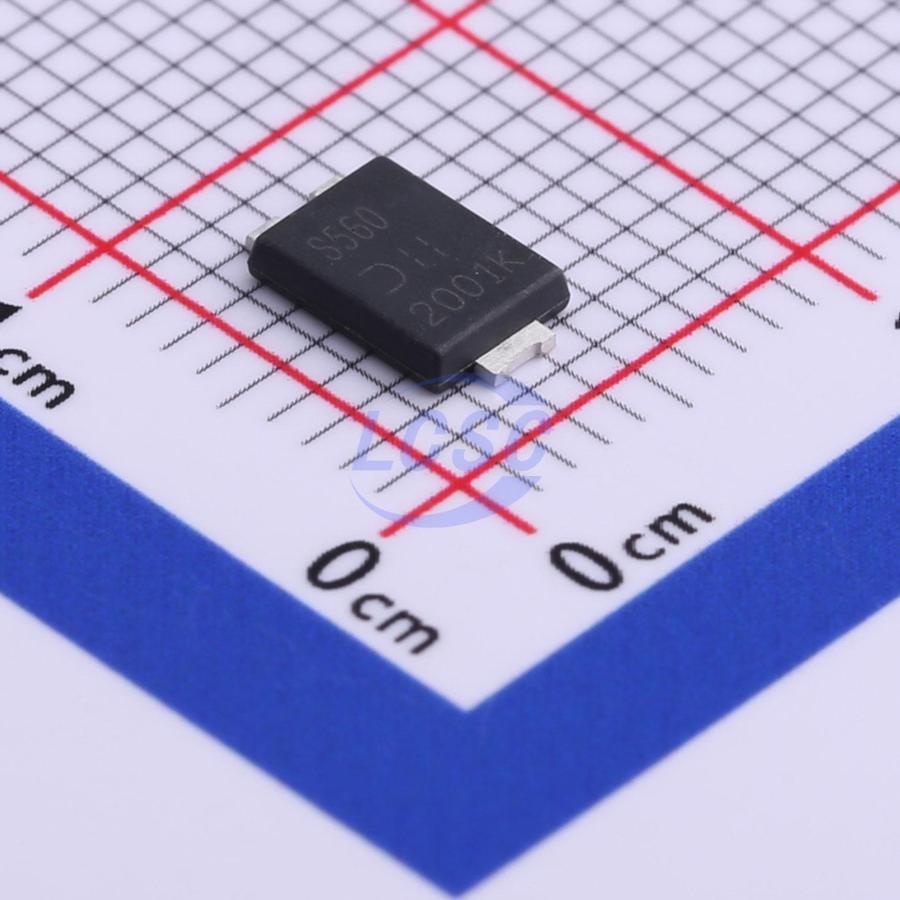

PDS560Q-13
Diode Independent 60V 5A Power-DI-5
Power-DI-5ROHS3 CompliantActive
DIODE SCHOTTKY 60V Power-DI-5
- Manufacturer
- DIODES
- Manufacturer part #
- PDS560Q-13
- Store part #
- C526696
- Package / case
- Power-DI-5
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,426 in stock
#C526696
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.40 | ₹89.40 |
| 10+ | ₹72.65 | ₹726.50 |
| 30+ | ₹64.17 | ₹1,925.10 |
| 100+ | ₹55.91 | ₹5,591.00 |
| 500+ | ₹50.90 | ₹25,450.00 |
| 1,000+ | ₹48.29 | ₹48,290.00 |
1 × ₹89.40
₹89.40
excl. GST
₹105.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PDS560Q-13
₹89.40 for 1 + GST
Specifications
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 710mV@8A
- Reverse Leakage Current (Ir)
- 4uA@60V
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.217 g
Overview
Designed to meet the stringent requirements of automotive applications. It is ideally suited to use as: Polarity Protection Diode, Recirculating Diode, Switching Diode
Applications
- Polarity Protection Diode
- Recirculating Diode
- Switching Diode
Key features
- Guard Ring Die Construction for Transient Protection
- High Surge Current Capability
- Low Leakage Current
- Low Power Loss, High Efficiency
- For Use in High Frequency Inverters, Free Wheeling, and Polarity Protection Applications
- High Forward Surge Current Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FSV10120V#C895432onsemi · TO-277-3L | onsemi | TO-277-3L | 92 | ₹151.44 · 92 in stock | View |
 | SDT5100LP5-13#C780903DIODES · PowerDI-5 | DIODES | PowerDI-5 | 1,240 | ₹34.49 · 1,240 in stock | View |
 | NRVTS860PFST3G#C893802onsemi · TO-277-3 | onsemi | TO-277-3 | 5 | ₹107.78 · 5 in stock | View |
 | SB1060#C6067463GOODWORK · TO-277 | GOODWORK | TO-277 | 3,105 | ₹19.36 · 3,105 in stock | View |
 | SB1080L#C6067453GOODWORK · TO-277 | GOODWORK | TO-277 | 1,160 | ₹29.65 · 1,160 in stock | View |
