NexperiaDatasheet (PDF)

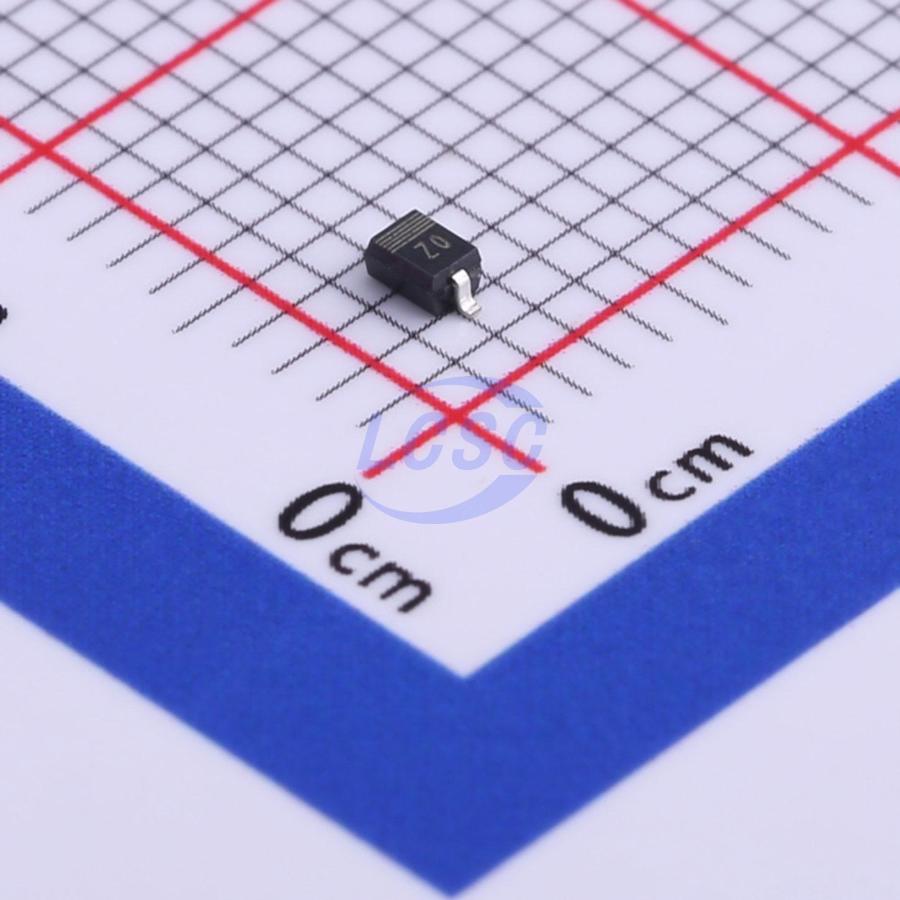

PDZ2.4B,115
Zener Diode Independent 2.4V 400mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 2.4V 400mW SOD-323
- Manufacturer
- Nexperia
- Manufacturer part #
- PDZ2.4B,115
- Store part #
- C513114
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,030 in stock
#C513114
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.28 | ₹72.80 |
| 100+ | ₹5.72 | ₹572.00 |
| 300+ | ₹4.93 | ₹1,479.00 |
| 3,000+ | ₹4.35 | ₹13,050.00 |
| 6,000+ | ₹3.89 | ₹23,340.00 |
| 9,000+ | ₹3.65 | ₹32,850.00 |
10 × ₹7.28
₹72.80
excl. GST
₹85.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PDZ2.4B,115
₹72.80 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 400mW
- Reverse Leakage Current (Ir)
- 50uA@1V
- Impedance(Zzt)
- 100Ω
- Zener Voltage(Range)
- 2.43V~2.63V
- Zener Voltage(Nom)
- 2.4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.01 g
Overview
Low-power general purpose voltage regulator diodes in a very small SOD323 (SC-76) Surface Mounted Device (SMD) plastic package.
Applications
- General voltage regulation
Key features
- Total power dissipation: P (tot) ≤ 400 mW
- Small plastic package suitable for surface mounted design
- Wide variety of voltage ranges: nominal 2.4 V to 36 V (E24 range)
- Tolerance approximately ±2%
- PDZ5.1B - 10B: Very low dynamic impedances at low currents, very low leakage current, hard breakdown knee
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM3Z2V4BW#C2857004JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 1,600 | ₹2.50 · 1,600 in stock | View |
 | UDZVTE-172.4B#C209554ROHM · SOD-323FL | ROHM | SOD-323FL | 11,650 | ₹2.41 · 11,650 in stock | View |
 | PZU2.4BA,115#C553640Nexperia · SOD-323 | Nexperia | SOD-323 | 3,000 | ₹27.51 · 3,000 in stock | View |
 | BZT52C2V4S#C968141YANGJIE · SOD-323 | YANGJIE | SOD-323 | 2,320 | ₹3.33 · 2,320 in stock | View |
 | BZX384-B2V4,115#C550551Nexperia · SOD-323(SC-76) | Nexperia | SOD-323(SC-76) | 9,700 | ₹3.12 · 9,700 in stock | View |
