NexperiaDatasheet (PDF)

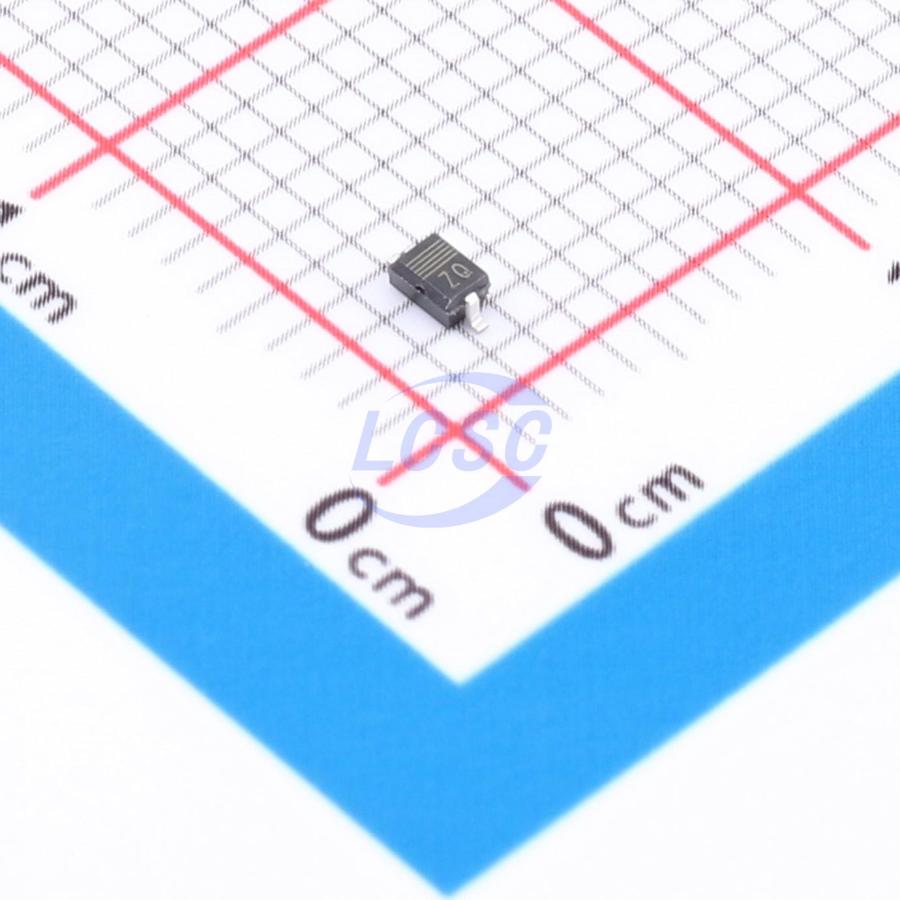

PDZ24B,115
Zener Diode 24V 400mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 24V 400mW SOD-323
- Manufacturer
- Nexperia
- Manufacturer part #
- PDZ24B,115
- Store part #
- C552309
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,030 in stock
#C552309
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.48 | ₹112.40 |
| 50+ | ₹17.89 | ₹894.50 |
| 150+ | ₹15.93 | ₹2,389.50 |
| 500+ | ₹13.47 | ₹6,735.00 |
| 3,000+ | ₹12.37 | ₹37,110.00 |
| 6,000+ | ₹11.72 | ₹70,320.00 |
5 × ₹22.48
₹112.40
excl. GST
₹132.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PDZ24B,115
₹112.40 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 400mW
- Reverse Leakage Current (Ir)
- 50nA@19V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 23.72V~24.78V
- Zener Voltage(Nom)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
Low-power general purpose voltage regulator diodes in a very small SOD323 (SC-76) Surface Mounted Device (SMD) plastic package.
Applications
- General voltage regulation
Key features
- Total power dissipation: P (tot) ≤ 400 mW
- Small plastic package suitable for surface mounted design
- Wide variety of voltage ranges: nominal 2.4 V to 36 V (E24 range)
- Tolerance approximately ±2%
- PDZ5.1B - 10B: Very low dynamic impedances at low currents, very low leakage current, hard breakdown knee
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PDZ24B_R1_00001#C268645PANJIT · SOD-323 | PANJIT | SOD-323 | 140 | ₹6.56 · 140 in stock | View |
| PZU24B2A,115#C553674Nexperia · SOD-323 | Nexperia | SOD-323 | 80 | ₹27.20 · 80 in stock | View | |
 | BZX384-B24,115#C550550Nexperia · SOD-323 | Nexperia | SOD-323 | 52,000 | ₹3.90 · 52,000 in stock | View |
| PZU24B2A-QX#C7329013Nexperia · SOD-323 | Nexperia | SOD-323 | 70 | ₹21.01 · 70 in stock | View | |
 | MM3Z24VB#C891592onsemi · SOD-323FL | onsemi | SOD-323FL | 10 | ₹8.97 · 10 in stock | View |
