NexperiaDatasheet (PDF)

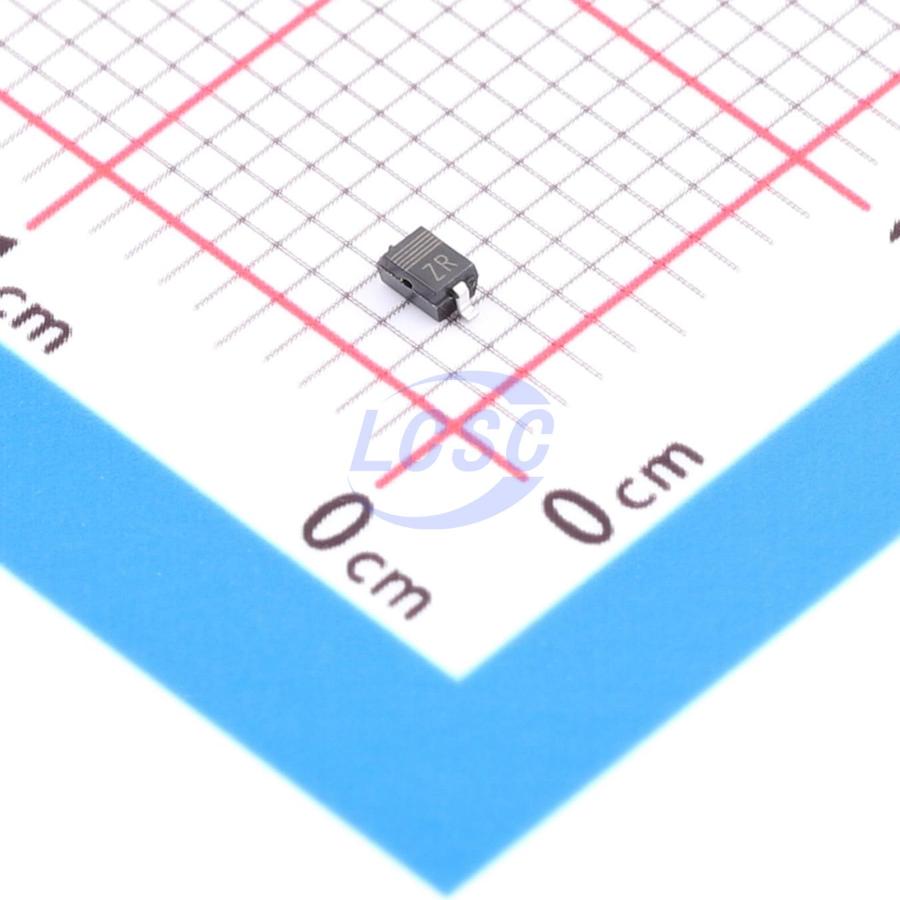

PDZ27BF
1 Independent 26.19V~27.53V 27V SOD-323 Single Zener Diodes RoHS
SOD-323ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PDZ27BF
- Store part #
- C552315
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C552315
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.14 | ₹70.70 |
| 50+ | ₹13.84 | ₹692.00 |
| 150+ | ₹13.63 | ₹2,044.50 |
| 500+ | ₹13.42 | ₹6,710.00 |
5 × ₹14.14
₹70.70
excl. GST
₹83.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
PDZ27BF
₹70.70 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 400mW
- Reverse Leakage Current (Ir)
- 50nA@21V
- Impedance(Zzt)
- 40Ω
- Zener Voltage(Range)
- 26.19V~27.53V
- Zener Voltage(Nom)
- 27V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.053 g
Overview
Low-power general purpose voltage regulator diodes in a very small SOD323 (SC-76) Surface Mounted Device (SMD) plastic package.
Applications
- General voltage regulation
Key features
- Total power dissipation: P (tot) ≤ 400 mW
- Small plastic package suitable for surface mounted design
- Wide variety of voltage ranges: nominal 2.4 V to 36 V (E24 range)
- Tolerance approximately ±2%
- PDZ5.1B - 10B: Very low dynamic impedances at low currents, very low leakage current, hard breakdown knee
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PDZ27B_R1_00001#C268646PANJIT · SOD-323 | PANJIT | SOD-323 | 4,190 | ₹5.15 · 4,190 in stock | View |
 | BZT52B27BS#C3019986Slkor · SOD-323 | Slkor | SOD-323 | 60 | ₹2.88 · 60 in stock | View |
 | MM3Z27BW#C2857022JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 2,000 | ₹2.58 · 2,000 in stock | View |
 | BZX84J-B27,115#C550974Nexperia · SOD-323F | Nexperia | SOD-323F | 5,270 | ₹35.39 · 5,270 in stock | View |
 | MM3Z27VST1G#C462853onsemi · SOD-323 | onsemi | SOD-323 | 7,160 | ₹3.77 · 7,160 in stock | View |
