NexperiaDatasheet (PDF)

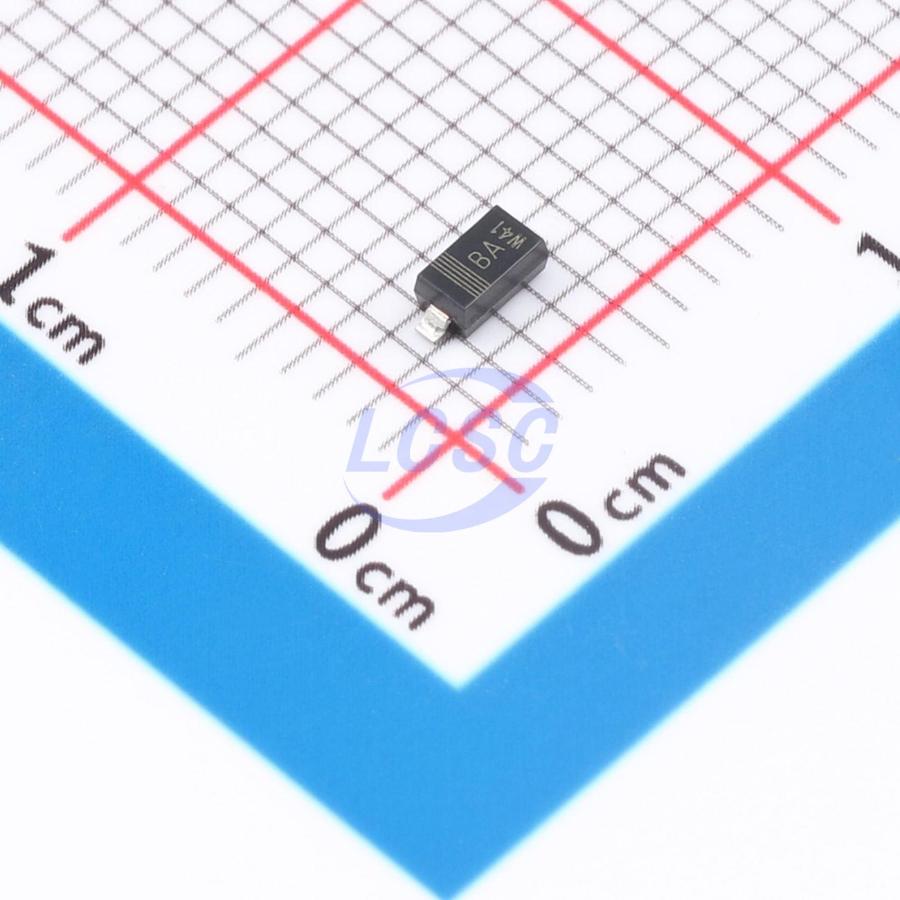

PDZ5.6BGWJ
Zener Diode Independent 5.6V 365mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 5.6V 365mW SOD-123
- Manufacturer
- Nexperia
- Manufacturer part #
- PDZ5.6BGWJ
- Store part #
- C552360
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
445 in stock
#C552360
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.06 | ₹155.30 |
| 50+ | ₹24.26 | ₹1,213.00 |
| 150+ | ₹21.34 | ₹3,201.00 |
| 500+ | ₹17.71 | ₹8,855.00 |
| 2,500+ | ₹16.09 | ₹40,225.00 |
| 5,000+ | ₹15.12 | ₹75,600.00 |
5 × ₹31.06
₹155.30
excl. GST
₹183.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
PDZ5.6BGWJ
₹155.30 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 365mW
- Reverse Leakage Current (Ir)
- 1uA@2.5V
- Impedance(Zzt)
- 50Ω
- Zener Voltage(Range)
- 5.48V~5.73V
- Zener Voltage(Nom)
- 5.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
General-purpose Zener diodes in a SOD123 small Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: P_ZSM ≤ 40 W
- Total power dissipation: P_tot ≤ 365 mW
- Tolerance series: B2: approximately ± 2 %
- Wide working voltage range: nominal 2.4 V to 36 V (E24 range)
- Low reverse current I_R range
- Small plastic package suitable for surface-mounted design
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PDZ5.6BGWX#C552361Nexperia · SOD-123 | Nexperia | SOD-123 | On request | ₹83.49 · 0 in stock | View |
 | TPZ5V6C-123#C46472892TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 2,600 | ₹2.58 · 2,600 in stock | View |
 | BZT52B5V6#C21714217CBI · SOD-123 | CBI | SOD-123 | 4,900 | ₹1.87 · 4,900 in stock | View |
 | BZT52B5V6#C3019935Slkor · SOD-123 | Slkor | SOD-123 | 2,720 | ₹2.78 · 2,720 in stock | View |
 | BZT52B5V6#C3647091MSKSEMI · SOD-123 | MSKSEMI | SOD-123 | 540 | ₹2.88 · 540 in stock | View |
