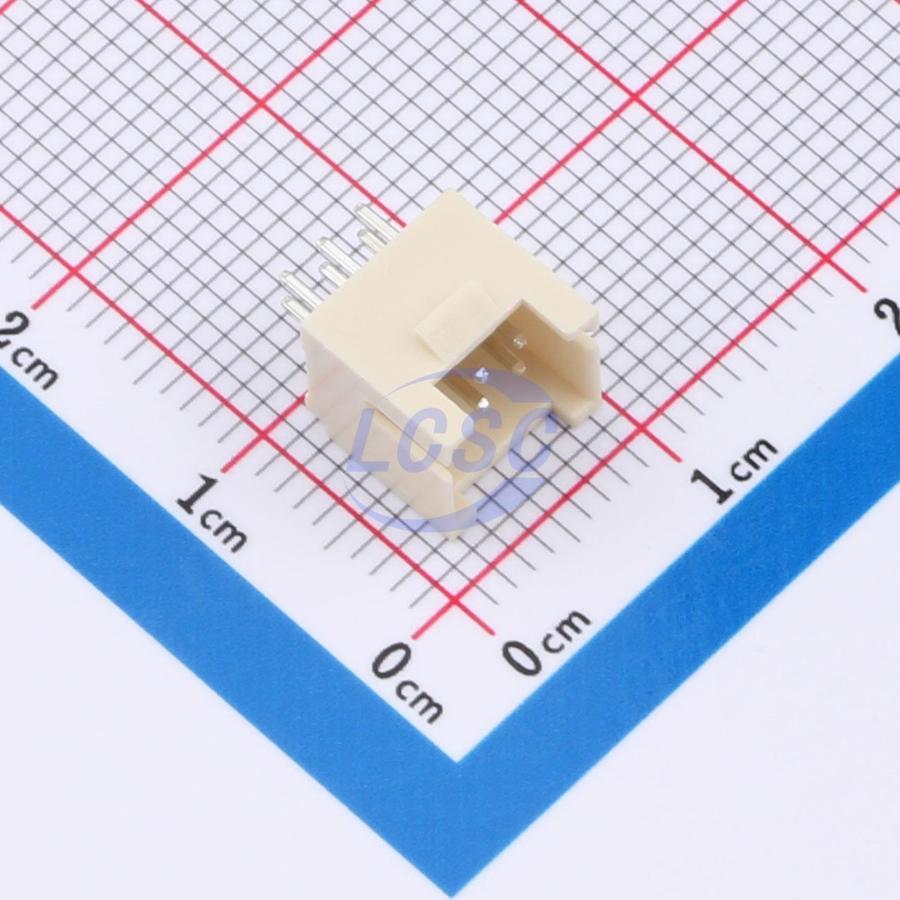

PHB2.0-2x3PZZDK

This specification applies to the production and inspection of standard series strip connectors (pin headers). Technical requirements are as follows: materials and plating refer to the attached table; plastic surfaces shall be smooth and clean, free from burrs, bubbles, burn marks, and deformation, with no drag marks, flash, or short shots at gate locations; terminal surfaces shall be free from oxidation and plating defects. Operating temperature range: -25℃~85℃; rated voltage: 250V AC/DC; rated current: 3A AC/DC; contact resistance: ≤0.02Ω; insulation resistance: ≥1000MΩ; withstanding voltage: 800V AC/min; applicable board thickness: 1.6mm. Operating conditions: ambient temperature -25℃~+85℃; applicable wire gauge AWG#28~#22; applicable PCB thickness 1.2~1.6mm. Appearance requirements: product surfaces shall be free from harmful defects, dirt, cracks, and mechanical damage; contacts shall be free from corrosion, plating oxidation, and peeling; outer dimensions shall conform to the attached drawings; products of the same specification shall be interchangeable. Packaging: plastic parts inner packaging uses plastic bags; terminals inner packaging uses reel tape-and-reel packaging with product information labeled; outer packaging uses cartons with packing lists affixed and product information indicated, with no movement of products inside the carton. Transportation by any means is permitted, but products must be protected from moisture and mechanical damage. Storage: packaged connectors shall be stored in a warehouse with ambient temperature -10℃~+40℃, relative humidity ≤80%, and free from acidic, alkaline, or other corrosive gases.

Key features

• Temperature Range: -25℃~85℃
• Rated Voltage: 250V AC/DC
• Rated Current: 3A AC/DC
• Contact Resistance: ≤0.02Ω
• Insulation Resistance: ≥1000MΩ
• Withstanding Voltage: 800V AC/min
• Applicable Substrate Thickness: 1.6mm
• Ambient Temperature: -25℃~+85℃
• Applicable Wire Gauge: AWG#28~#22
• Applicable PCB Thickness: 1.2~1.6mm
