DIODESDatasheet (PDF)

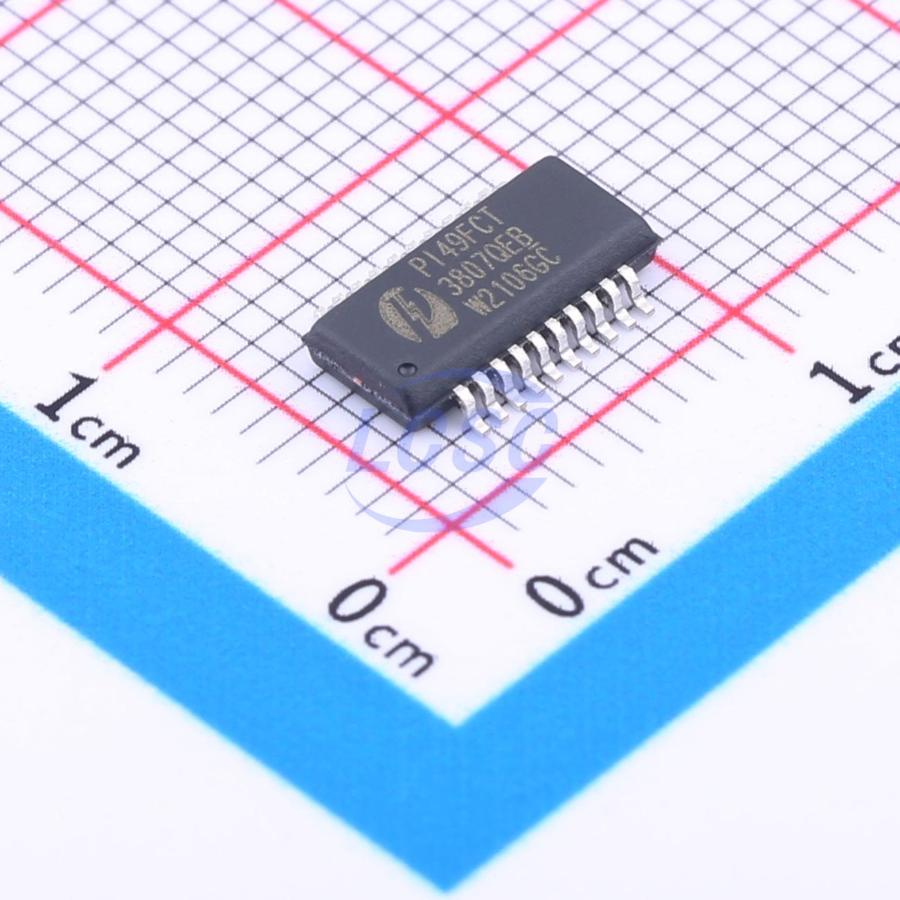

PI49FCT3807BQEX
3V~3.6V 80MHz 10 QSOP-20-150mil Clock Buffers, Drivers RoHS
QSOP-20-150milROHS3 CompliantActive
3.3V Fast CMOS Clock Driver
- Manufacturer
- DIODES
- Manufacturer part #
- PI49FCT3807BQEX
- Store part #
- C1545707
- Package / case
- QSOP-20-150mil
- Category
- Clock Buffers, Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,950 in stock
#C1545707
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.26 | ₹84.26 |
| 10+ | ₹67.33 | ₹673.30 |
| 30+ | ₹59.07 | ₹1,772.10 |
| 100+ | ₹50.60 | ₹5,060.00 |
| 500+ | ₹44.52 | ₹22,260.00 |
| 1,000+ | ₹41.91 | ₹41,910.00 |
1 × ₹84.26
₹84.26
excl. GST
₹99.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
PI49FCT3807BQEX
₹84.26 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 3V~3.6V
- Features
- Multi-channel fan-out/isolation drive
- Number of Inputs
- 1
- Output Frequency(Max)
- 80MHz
- Number of outputs
- 10
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.187 g
Overview
PI49FCT3807 is a 3.3V 1-to-10 clock driver. This low skew clock driver features one input and ten outputs fanout. The large fanout from a single input line reduced loading on input clock. TTL level outputs reduce noise levels on the part. Typical applications are clock and signal distributon
Key features
- 3.3V version of PI49FCT807
- Ultra low skew: 0.35ns
- Low Input Capacitance
- Minimum duty cycle distortion
- 1:10 fanout
- High speed: 3.5ns propogation
- TTL input and CMOS output compatible
- VOH = 3.3V (typical)
- VOL = 0.3V (typical)
- Industrial Temperature: -40°C to +85°C
- 3.3V±10% operation
- Packaging (Pb-free & Green Available):
- 20-pin 300-mil wide SOIC (S)
- 20-pin 150-mil wide QSOP (Q)
- 20-pin 209-mil wide SSOP (H)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 74FCT3807AQGI#C1545825RENESAS · QSOP-20-150mil | RENESAS | QSOP-20-150mil | 58 | ₹293.61 · 58 in stock | View | |
 | 74FCT3807AQGI8#C2672822RENESAS · QSOP-20-150mil | RENESAS | QSOP-20-150mil | 40 | ₹286.03 · 40 in stock | View |
 | 74FCT3807QGI8#C2672972RENESAS · QSOP-20-150mil | RENESAS | QSOP-20-150mil | On request | ₹189.63 · 0 in stock | View |
| 74FCT3807QG#C5915960RENESAS · QSOP-20 | RENESAS | QSOP-20 | On request | ₹207.10 · 0 in stock | View | |
| 74FCT3807AQG#C7039278RENESAS · QSOP-20 | RENESAS | QSOP-20 | On request | ₹221.44 · 0 in stock | View | |
