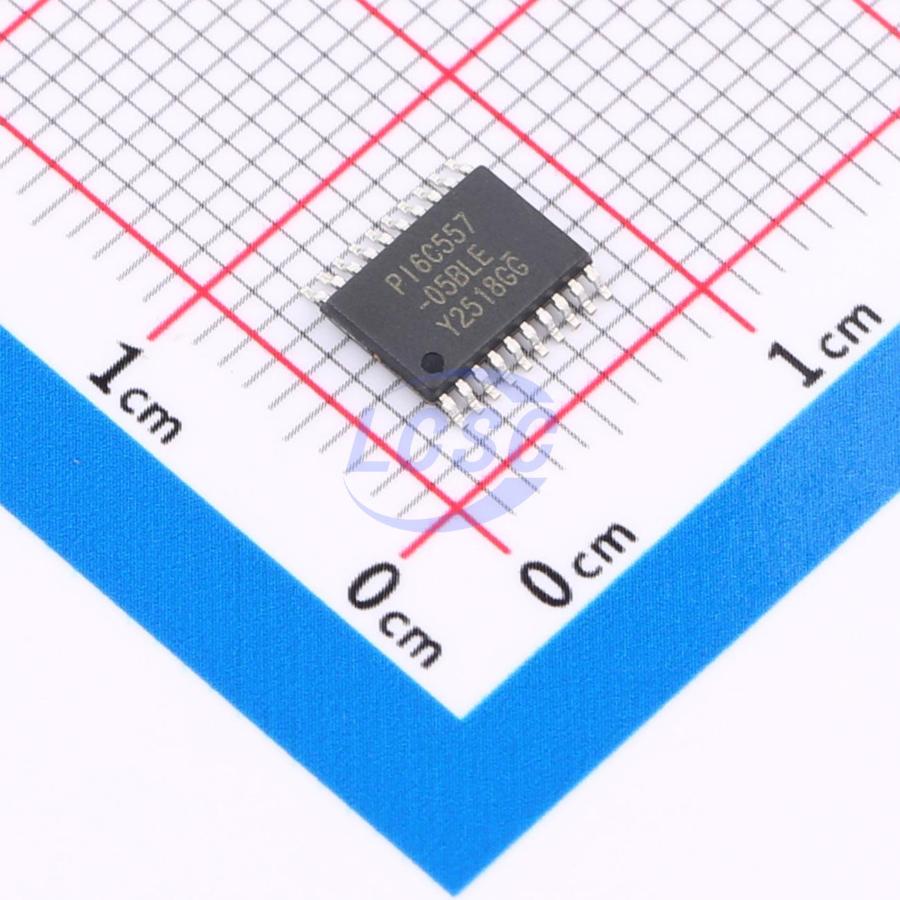

PI6C557-05BLE
3.135V~3.465V 200MHz 4 TSSOP-20 Application Specific Clock/Timing RoHS
PCIe 3.0 Clock Generator with 4 HCSL Outputs
- Manufacturer
- DIODES
- Manufacturer part #
- PI6C557-05BLE
- Store part #
- C212303
- Package / case
- TSSOP-20
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,453 in stock
#C212303
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹230.47 | ₹230.47 |
| 10+ | ₹201.98 | ₹2,019.80 |
| 30+ | ₹181.98 | ₹5,459.40 |
| 74+ | ₹163.72 | ₹12,115.28 |
| 518+ | ₹155.24 | ₹80,414.32 |
| 1,480+ | ₹151.76 | ₹2,24,604.80 |
1 × ₹230.47
₹230.47
excl. GST
₹271.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 74 per tube
PI6C557-05BLE
₹230.47 for 1 + GST
Specifications
- Clock/Oscillator
- External
- Phase Offset
- Not supported
- Voltage - Supply
- 3.135V~3.465V
- Features
- Protocol-specific clock generation;Spread spectrum;Built-in phase-locked loop
- Output Frequency(Max)
- 200MHz
- Operating Temperature
- -40℃~+85℃
- Number of outputs
- 4
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 74 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.6 g
Overview
The PI6C557-05B is a spread spectrum clock generator compliant to PCI Express 3.0 and Ethernet requirements. The device is used for PC or embedded systems to substantially reduce Electromagnetic Interference (EMI). The PI6C557-05B provides four differential (HCSL) or LVDS spread spectrum outputs. The PI6C557-05B is configured to select spread and clock selection. Using Pericom's patented Phase-Locked Loop (PLL) techniques, the device takes a 25MHz crystal input and produces four pairs of differential outputs (HCSL) at 100MHz and 200MHz clock frequencies. It also provides spread selection of - 0.5%, - 1.0%, - 1.5%, and no spread.
Key features
- PCIe 3.0 complaint • PCIe 3.0 Phase jitter: 0.48ps RMS (High Freq. Typ.)
- LVDS compatible outputs
- Supply voltage of 3.3V±5%
- 25MHz crystal or clock input frequency
- HCSL outputs, 0.7V Current mode differential pair
- Jitter 40ps cycle-to-cycle (typ)
- Spread of - 0.5%, - 1.0%, - 1.5%, and no spread
- Industrial temperature range
- Spread Bypass option available
- Spread and frequency selection via external pins
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Packaging: (Pb-free and Green) • 20-pin, TSSOP (L)
