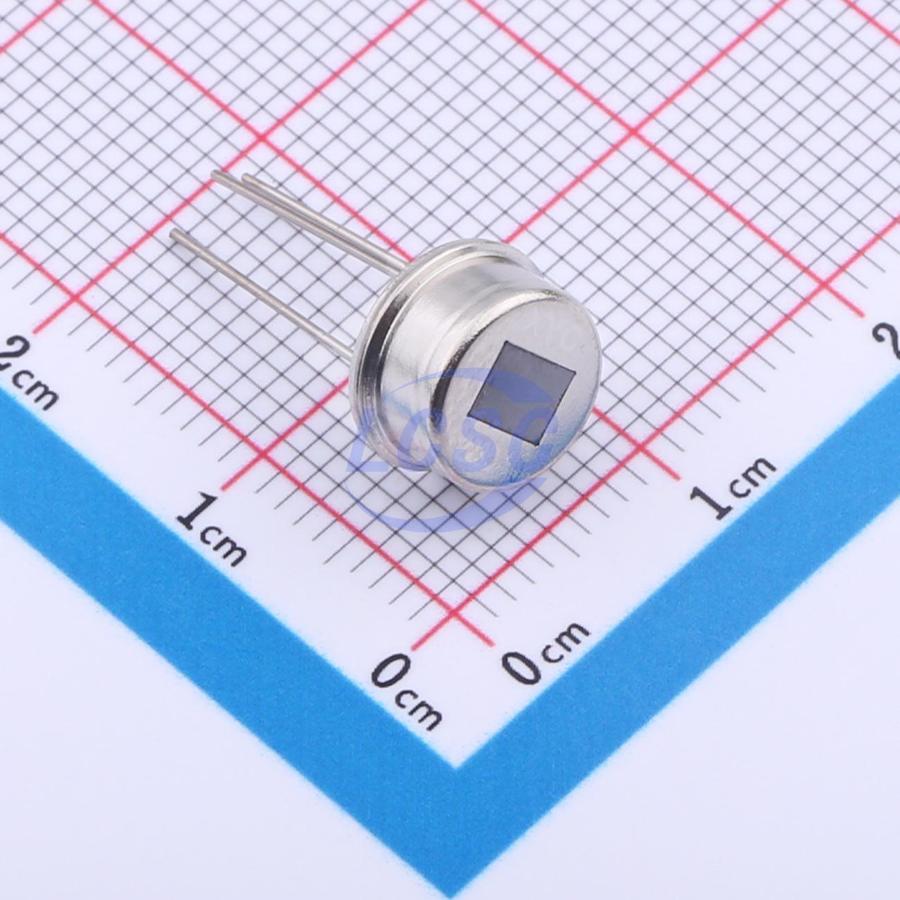

PIR223D-S0
TO-5 Sensor and Detector Interfaces
Digital pyroelectric infrared sensor
- Manufacturer
- NEWOPTO
- Manufacturer part #
- PIR223D-S0
- Store part #
- C2887901
- Package / case
- TO-5
- Category
- Sensor and Detector Interfaces
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,797 in stock
#C2887901
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹99.53 | ₹99.53 |
| 10+ | ₹80.66 | ₹806.60 |
| 30+ | ₹71.34 | ₹2,140.20 |
| 100+ | ₹59.42 | ₹5,942.00 |
| 500+ | ₹53.99 | ₹26,995.00 |
| 1,000+ | ₹50.96 | ₹50,960.00 |
1 × ₹99.53
₹99.53
excl. GST
₹117.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 100 per box
PIR223D-S0
₹99.53 for 1 + GST
Specifications
- Window Size
- 4x3mm
- Current - Supply
- 10uA
- Window Shape
- Rectangle
- Operating Temperature
- -20℃~+70℃
- Voltage - Supply
- 2.7V~3.7V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Box-packed
- Standard pack
- 100 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.97 g
Overview
The XYC - PIR223D - S0 digital pyroelectric infrared sensor integrates the sensitive element of the traditional pyroelectric infrared sensor with the signal processing chip, and integrates the sensitive element and the IC chip into the sensor shield. The sensitive element transmits the infrared signal generated by the external human movement to the high - precision digital intelligent processing chip for processing by differential input. When the signal processing is completed, the will sensor outputs the signal directly, which is convenient to use.
Applications
- For automatic lighting switches of all types
- For burglar alarm intrusion detectors of all types
- For smart toys of all types
- For smart household appliances of all types
Key features
- High-precision AD signal processing
- Schmitt trigger output for strong noise immunity
- Low operating voltage and low power consumption
