VISHAYDatasheet (PDF)

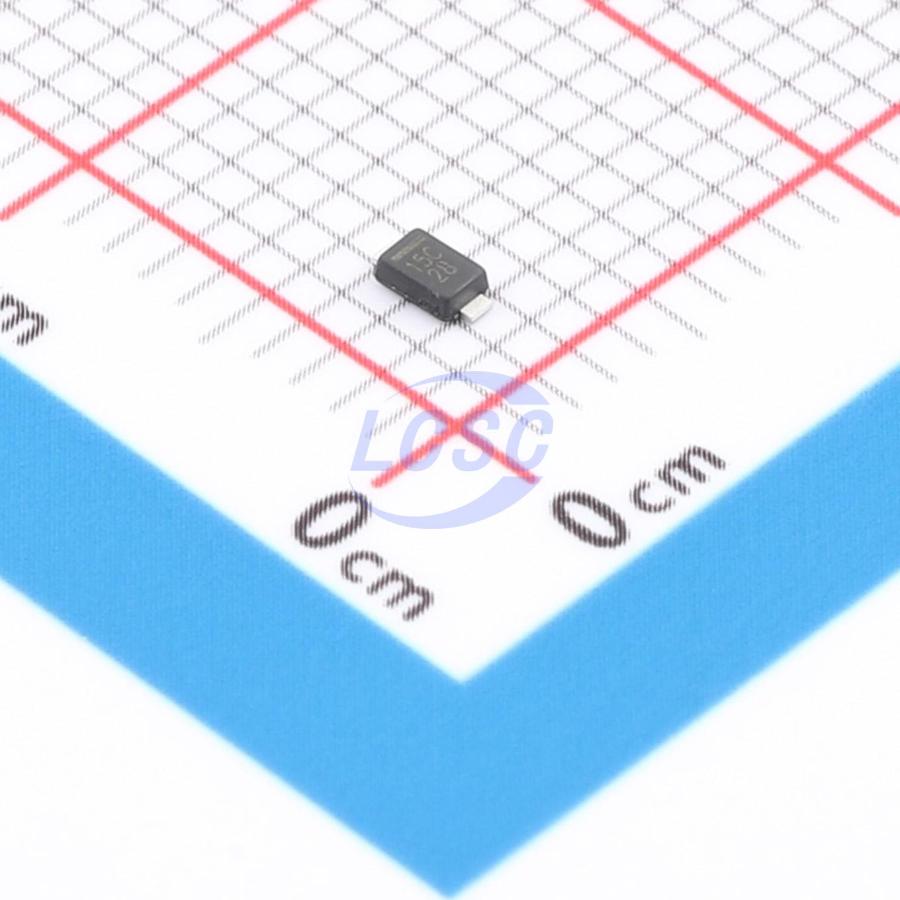

PLZ15C-HG3_A/H
1 Independent 14.35V~15.09V 15V MicroSMF(DO-219AC) Single Zener Diodes RoHS
MicroSMF(DO-219AC)ROHS3 CompliantActive
DIODE ZENER 15V 960mW MicroSMF(DO-219AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- PLZ15C-HG3_A/H
- Store part #
- C3731434
- Package / case
- MicroSMF(DO-219AC)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C3731434
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.99 | ₹59.95 |
| 50+ | ₹11.72 | ₹586.00 |
| 150+ | ₹11.54 | ₹1,731.00 |
| 500+ | ₹11.36 | ₹5,680.00 |
5 × ₹11.99
₹59.95
excl. GST
₹70.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
PLZ15C-HG3_A/H
₹59.95 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 960mW
- Reverse Leakage Current (Ir)
- 200nA@11V
- Impedance(Zzt)
- 4.5Ω
- Zener Voltage(Range)
- 14.35V~15.09V
- Zener Voltage(Nom)
- 15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.095 g
Overview
Key features
- Sillicon planar Zener diodes, ultra small
- Low profile MicroSMF (DO-219AC) package
- Low leakage current
- Excellent stability
- High temperature soldering: 260℃ / 10 s at terminals
- Wave and reflow solderable (reflow as per JPC / JEDEC J-STD 020) (double wave as per IEC 61760-1)
- AEC-Q101 qualified available
- Base P/N-G3 - RoHS-compliant, green, industrial grade
- Base P/N-HG3 - RoHS-compliant, green, AEC-Q101 qualified
- ESD immunity acc. IEC 61000-4-2 acc. to part table
- Surge performance acc. to part table
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PLZ15C-G3/H#C143056VISHAY · DO-219AC(microSMF) | VISHAY | DO-219AC(microSMF) | 4,050 | ₹8.97 · 4,050 in stock | View |
 | PLZ15A-HG3_A/H#C3740714VISHAY · MicroSMF(DO-219AC) | VISHAY | MicroSMF(DO-219AC) | 235 | ₹14.55 · 235 in stock | View |
| PLZ16B-HG3_A/H#C3739346VISHAY · MicroSMF(DO-219AC) | VISHAY | MicroSMF(DO-219AC) | 55 | ₹15.40 · 55 in stock | View | |
| PLZ15B-HG3_A/H#C3765150VISHAY · MicroSMF(DO-219AC) | VISHAY | MicroSMF(DO-219AC) | On request | ₹6.36 · 0 in stock | View | |
| PLZ16A-HG3_A/H#C3737366VISHAY · MicroSMF(DO-219AC) | VISHAY | MicroSMF(DO-219AC) | On request | ₹6.36 · 0 in stock | View | |
