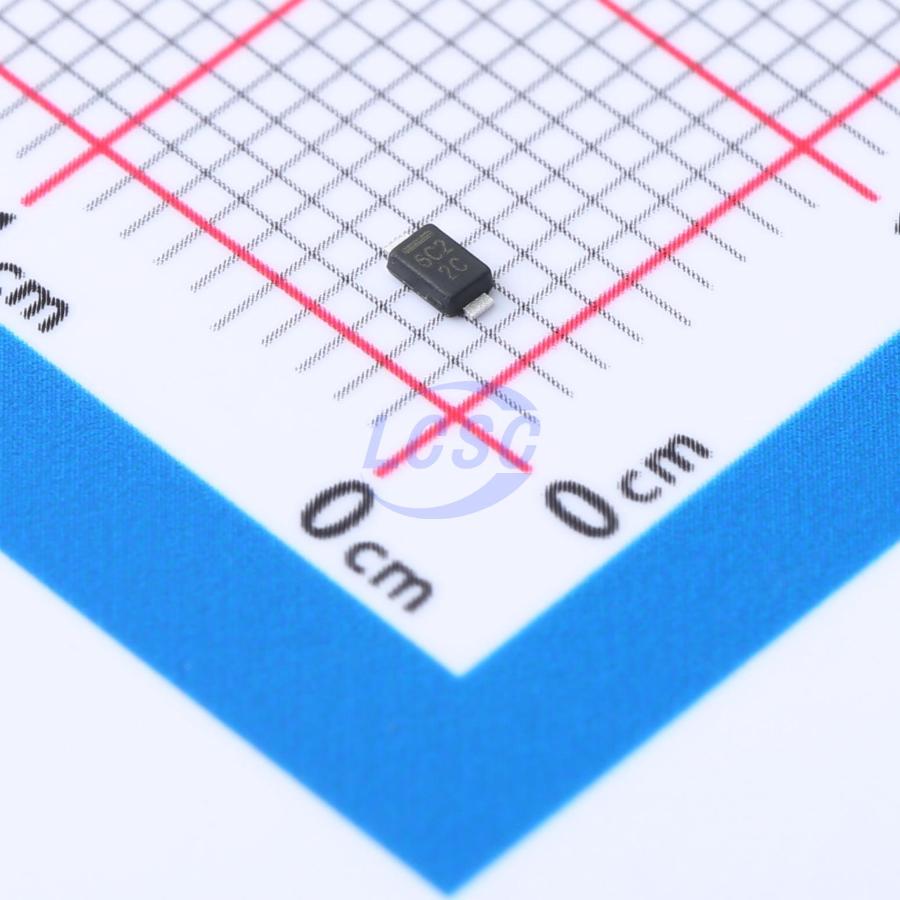

PLZ6V2C-G3/H
Zener Diode Independent 6.28V 960mW MicroSMF(DO-219AC)
MicroSMF(DO-219AC)ROHS3 CompliantActive
DIODE ZENER 6.28V 960mW MicroSMF(DO-219AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- PLZ6V2C-G3/H
- Store part #
- C3736356
- Package / case
- MicroSMF(DO-219AC)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,880 in stock
#C3736356
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.89 | ₹59.45 |
| 50+ | ₹9.27 | ₹463.50 |
| 150+ | ₹7.95 | ₹1,192.50 |
| 500+ | ₹6.97 | ₹3,485.00 |
| 2,500+ | ₹6.18 | ₹15,450.00 |
| 4,500+ | ₹5.78 | ₹26,010.00 |
5 × ₹11.89
₹59.45
excl. GST
₹70.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
PLZ6V2C-G3/H
₹59.45 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 960mW
- Reverse Leakage Current (Ir)
- 5uA
- Impedance(Zzt)
- 9.66Ω
- Zener Voltage(Range)
- 6.12V~6.44V
- Zener Voltage(Nom)
- 6.28V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Key features
- Sillicon planar Zener diodes, ultra small
- Low profile MicroSMF (DO-219AC) package
- Low leakage current
- Excellent stability
- High temperature soldering: 260℃ / 10 s at terminals
- Wave and reflow solderable (reflow as per JPC / JEDEC J-STD 020) (double wave as per IEC 61760-1)
- AEC-Q101 qualified available
- Base P/N-G3 - RoHS-compliant, green, industrial grade
- Base P/N-HG3 - RoHS-compliant, green, AEC-Q101 qualified
- ESD immunity acc. IEC 61000-4-2 acc. to part table
- Surge performance acc. to part table
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| PLZ5V6C-HG3_A/H#C3765243VISHAY · MicroSMF(DO-219AC) | VISHAY | MicroSMF(DO-219AC) | 10 | ₹16.58 · 10 in stock | View | |
| PLZ6V2C-HG3_A/H#C3728818VISHAY · MicroSMF(DO-219AC) | VISHAY | MicroSMF(DO-219AC) | On request | ₹6.36 · 0 in stock | View | |
| PLZ6V2B-HG3_A/H#C3739500VISHAY · MicroSMF(DO-219AC) | VISHAY | MicroSMF(DO-219AC) | On request | ₹6.36 · 0 in stock | View | |
| PLZ6V8A-HG3_A/H#C3728680VISHAY · MicroSMF(DO-219AC) | VISHAY | MicroSMF(DO-219AC) | On request | ₹6.36 · 0 in stock | View | |
| PLZ6V2A-HG3_A/H#C3729441VISHAY · MicroSMF(DO-219AC) | VISHAY | MicroSMF(DO-219AC) | On request | ₹7.21 · 0 in stock | View | |
