NexperiaDatasheet (PDF)

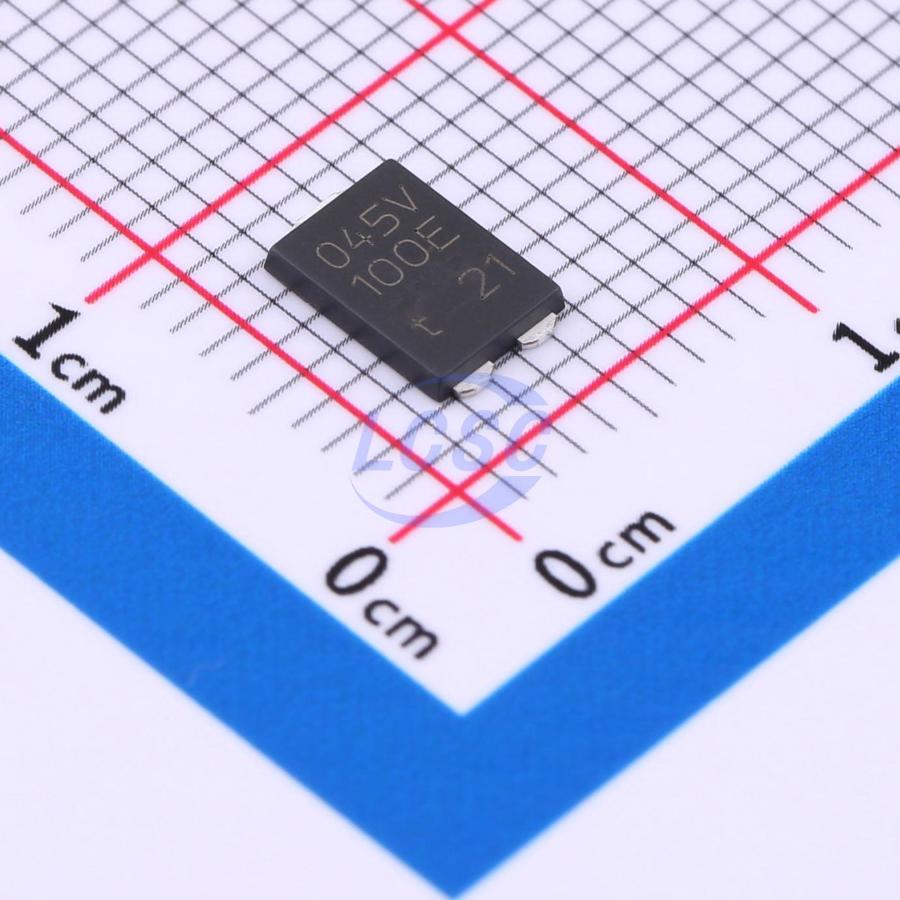

PMEG045V100EPDAZ
Diode 45V 10A CFP-15
CFP-15ROHS3 CompliantActive
DIODE SCHOTTKY 45V CFP-15
- Manufacturer
- Nexperia
- Manufacturer part #
- PMEG045V100EPDAZ
- Store part #
- C5183016
- Package / case
- CFP-15
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
96 in stock
#C5183016
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹194.69 | ₹194.69 |
| 10+ | ₹161.41 | ₹1,614.10 |
| 30+ | ₹143.14 | ₹4,294.20 |
| 100+ | ₹122.47 | ₹12,247.00 |
| 500+ | ₹107.68 | ₹53,840.00 |
| 1,000+ | ₹103.55 | ₹1,03,550.00 |
1 × ₹194.69
₹194.69
excl. GST
₹229.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PMEG045V100EPDAZ
₹194.69 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 45V
- Voltage - Forward(Vf@If)
- 490mV@10A
- Reverse Leakage Current (Ir)
- 600uA@45V
- Current - Rectified
- 10A
- Non-Repetitive Peak Forward Surge Current
- 210A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a CFP15 (SOT1289) power and flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- Low voltage rectification
- High efficiency DC-to-DC conversion
- Switch mode power supply
- Freewheeling application
- Reverse polarity protection
- Low power consumption application
Key features
- Average forward current: IF(AV) ≤ 10 A
- Reverse voltage: VR ≤ 45 V
- Extremely low forward voltage
- High power capability due to clip-bonding technology and heat sink
- Small and thin SMD power plastic package, typical height 0.78mm
- AEC-G101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMEG060V100EPDZ#C552792Nexperia · CFP-15 | Nexperia | CFP-15 | 1,401 | ₹107.27 · 1,401 in stock | View |
 | PMEG050T150EPDZ#C458230Nexperia · CFP-15 | Nexperia | CFP-15 | 3 | ₹117.09 · 3 in stock | View |
 | PMEG100V100ELPDZ#C552797Nexperia · CFP-15 | Nexperia | CFP-15 | 2 | ₹83.23 · 2 in stock | View |
 | PMEG045T150EIPDZ#C552774Nexperia · CFP-15 | Nexperia | CFP-15 | 1 | ₹252.34 · 1 in stock | View |
 | PMEG100V080ELPD(TOKMAS)#C52941002Tokmas · CFP-15 | Tokmas | CFP-15 | 4,590 | ₹37.98 · 4,590 in stock | View |
