NexperiaDatasheet (PDF)

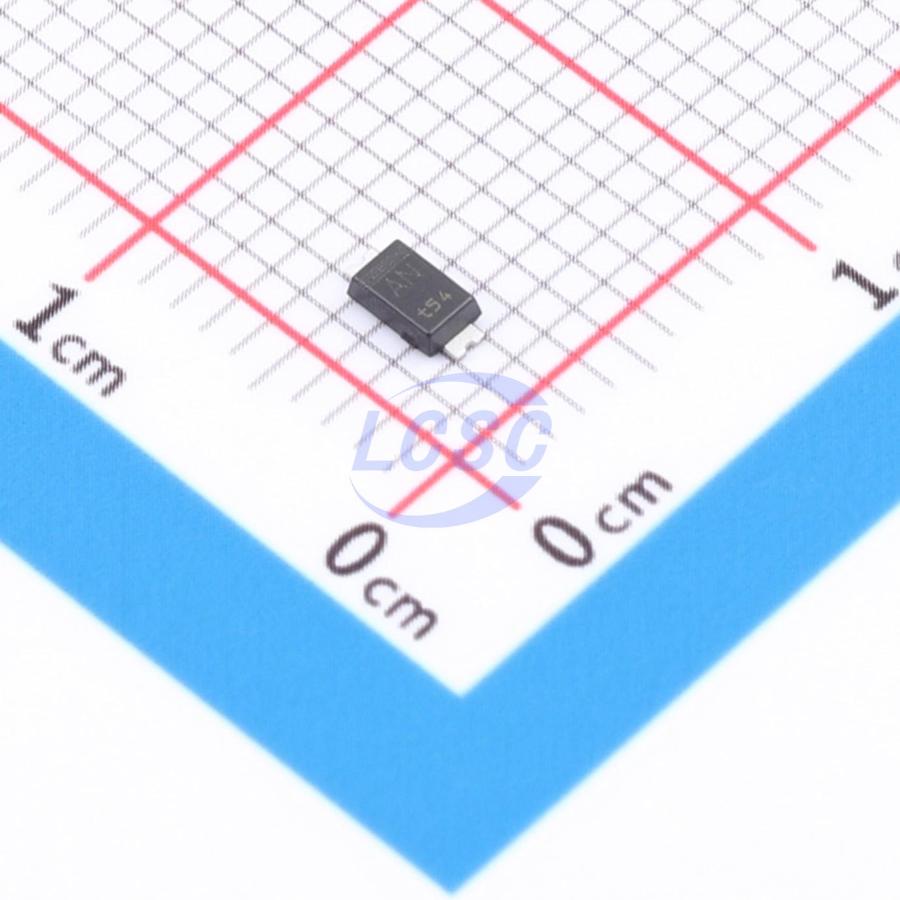

PMEG10020ELXE-QX
100V 1 Independent 840mV@2A 2A SOD-123HP Single Diodes RoHS
SOD-123HPROHS CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PMEG10020ELXE-QX
- Store part #
- C29247573
- Package / case
- SOD-123HP
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
85 in stock
#C29247573
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.43 | ₹202.15 |
| 50+ | ₹31.80 | ₹1,590.00 |
| 150+ | ₹28.10 | ₹4,215.00 |
| 500+ | ₹23.50 | ₹11,750.00 |
| 3,000+ | ₹21.43 | ₹64,290.00 |
| 6,000+ | ₹20.20 | ₹1,21,200.00 |
5 × ₹40.43
₹202.15
excl. GST
₹238.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMEG10020ELXE-QX
₹202.15 for 5 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 840mV@2A
- Reverse Leakage Current (Ir)
- 150nA@100V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
Planar Schottky barrier rectifier in CFP3-HP (SOD123HP) power flat lead SMD plastic package.
Applications
- High-efficiency DC-DC conversion
- Switching power supplies
- Freewheeling applications
- Reverse polarity protection
- OR-ing
Key features
- Low forward voltage
- Ultra-low leakage current
- High surge current capability
- Clip-bonded package for high power capability
- Power flat-lead plastic package with exposed heat slug for optimized thermal connection
- AEC-Q101 compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SDM2100S1FQ-7#C5910056DIODES · SOD-123F | DIODES | SOD-123F | 1,860 | ₹46.77 · 1,860 in stock | View |
 | MBR2H100SFT3G-FS#C42411347FUXINSEMI · SOD-123FL | FUXINSEMI | SOD-123FL | 2,750 | ₹10.13 · 2,750 in stock | View |
 | NRVB2H100SFT3G#C604267onsemi · SOD-123 | onsemi | SOD-123 | 2 | ₹34.77 · 2 in stock | View |
 | MBR2H100SFT3G#C96515onsemi · SOD-123 | onsemi | SOD-123 | 34,110 | ₹21.17 · 34,110 in stock | View |
 | DS210W#C116100Jingdao Microelectronics · SOD-123F | Jingdao Microelectronics | SOD-123F | 16,680 | ₹4.45 · 16,680 in stock | View |
