JSMSEMIDatasheet (PDF)

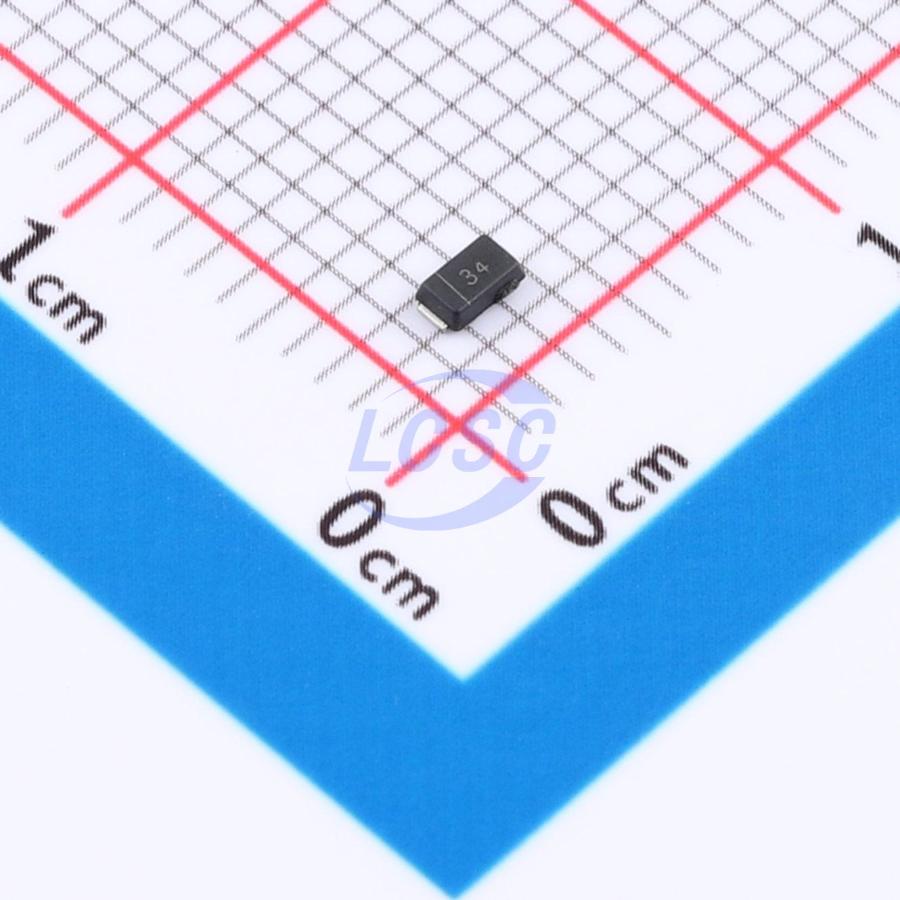

PMEG1030EJ,115-JSM
10V 1 Independent 3A SOD-323 Single Diodes RoHS
SOD-323ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- PMEG1030EJ,115-JSM
- Store part #
- C53114231
- Package / case
- SOD-323
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,660 in stock
#C53114231
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.32 | ₹63.20 |
| 100+ | ₹5.07 | ₹507.00 |
| 300+ | ₹4.45 | ₹1,335.00 |
| 3,000+ | ₹3.76 | ₹11,280.00 |
| 6,000+ | ₹3.39 | ₹20,340.00 |
| 9,000+ | ₹3.19 | ₹28,710.00 |
10 × ₹6.32
₹63.20
excl. GST
₹74.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMEG1030EJ,115-JSM
₹63.20 for 10 + GST
Specifications
- Operating Junction Temperature Range
- -40℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 10V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 380mV@100mA;500mV@500mA;600mV@1A
- Reverse Leakage Current (Ir)
- 15uA
- Current - Rectified
- 3A
- Non-Repetitive Peak Forward Surge Current
- 5A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
Key features
- High-current rectifier Schottky diode with low V_F forward voltage drop
- Low voltage, low inductance
- Suitable for power supplies
- Detection and boost conversion applications
- SOD-323 package
